Exploded View With Torque Specifications

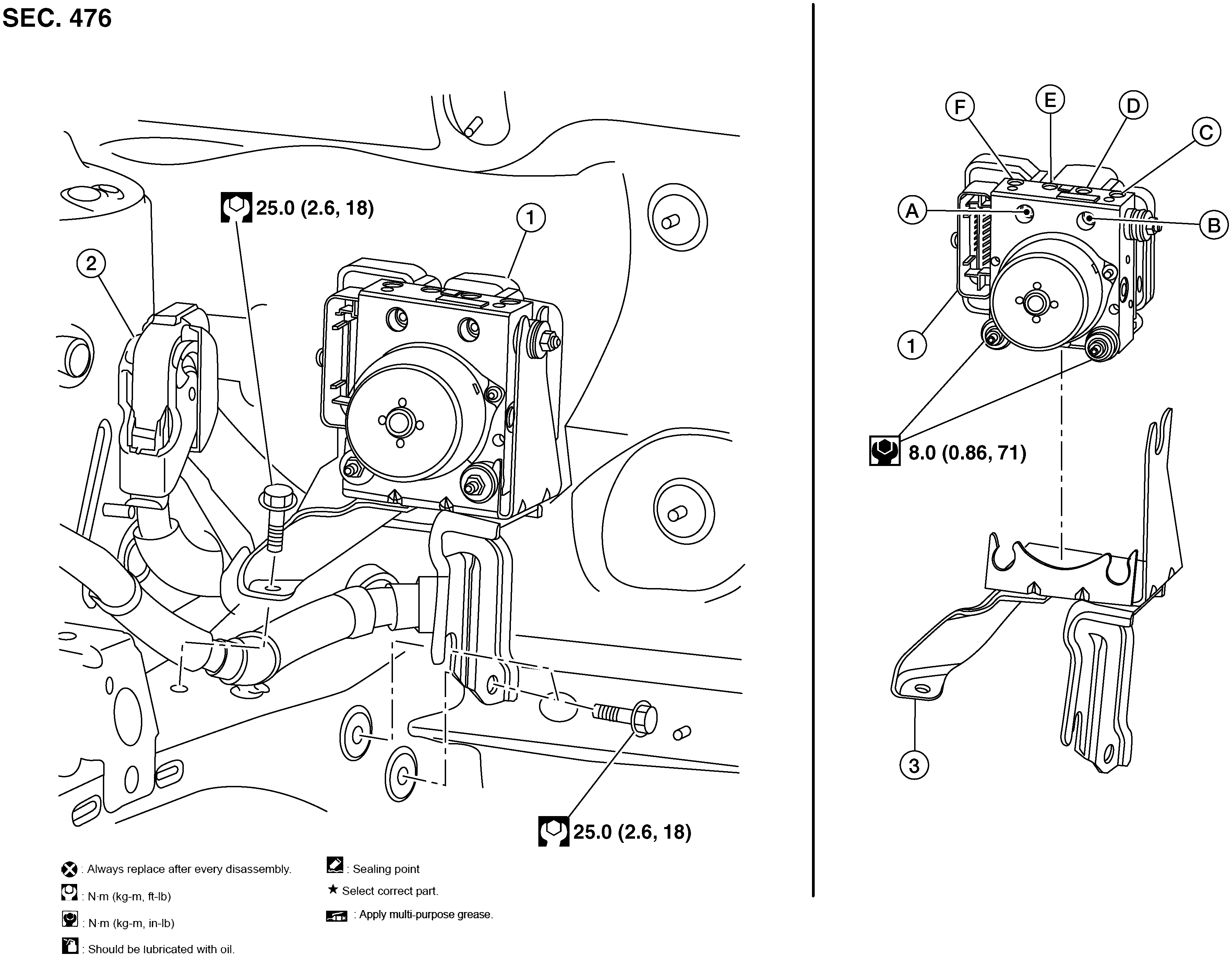

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	ABS actuator and electric unit (control unit) harness connector	3.	Bracket
A.	To master cylinder secondary side	B.	To master cylinder primary side	C.	To rear wheel cylinder (LH)
D.	To front caliper (RH)	E.	To front caliper (LH)	F.	To rear wheel cylinder (RH)
