Exploded View With Torque Specifications

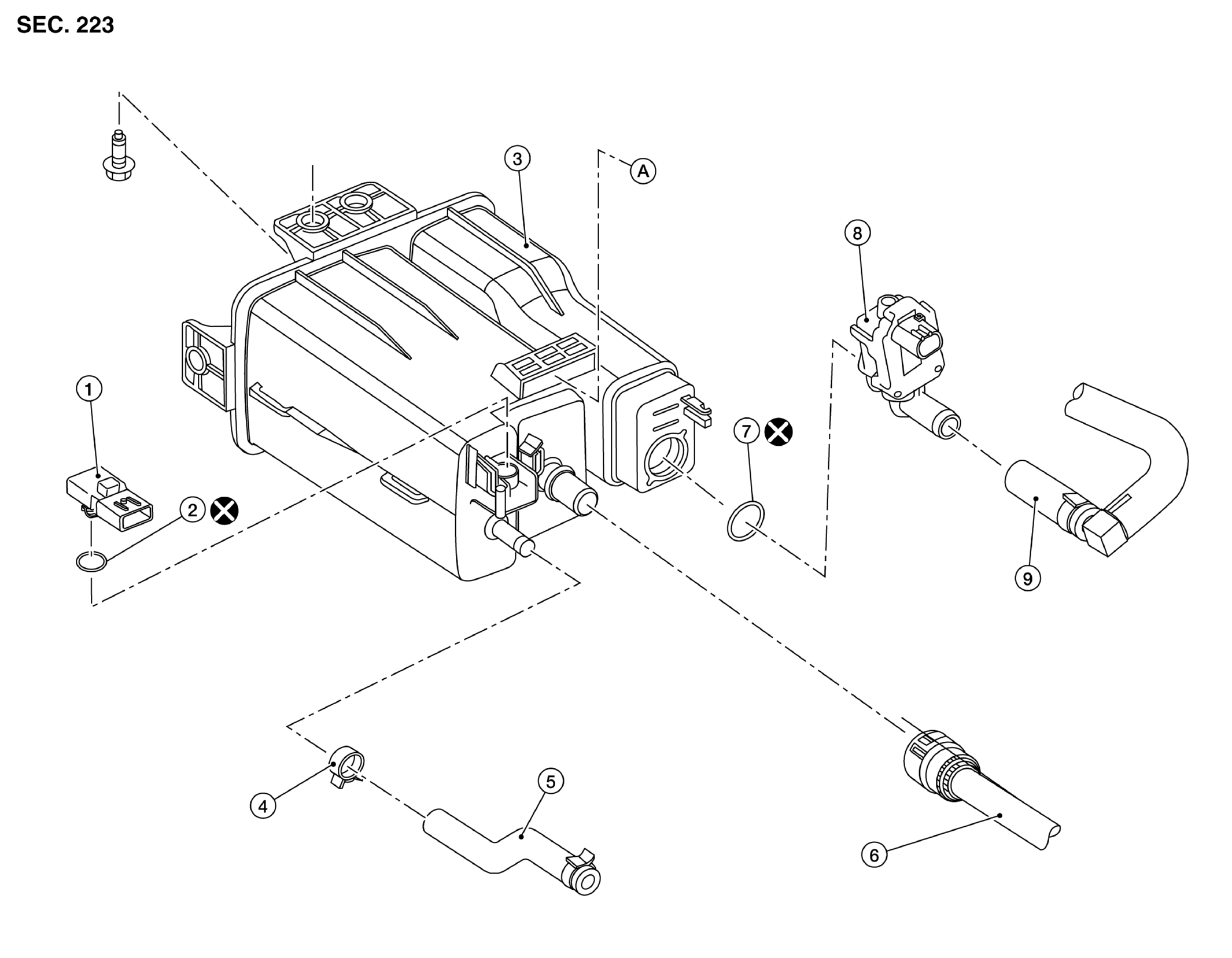

Fig 1: Exploded View Of EVAP Canister

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP control system pressure sensor	2.	O-ring	3.	EVAP canister
4.	Hose clamp	5.	EVAP canister purge hose	6.	EVAP vent line
7.	O-ring	8.	EVAP canister vent control valve	9.	EVAP canister vent control valve hose
A.	Mount to vehicle bracket
