Exploded View With Torque Specifications

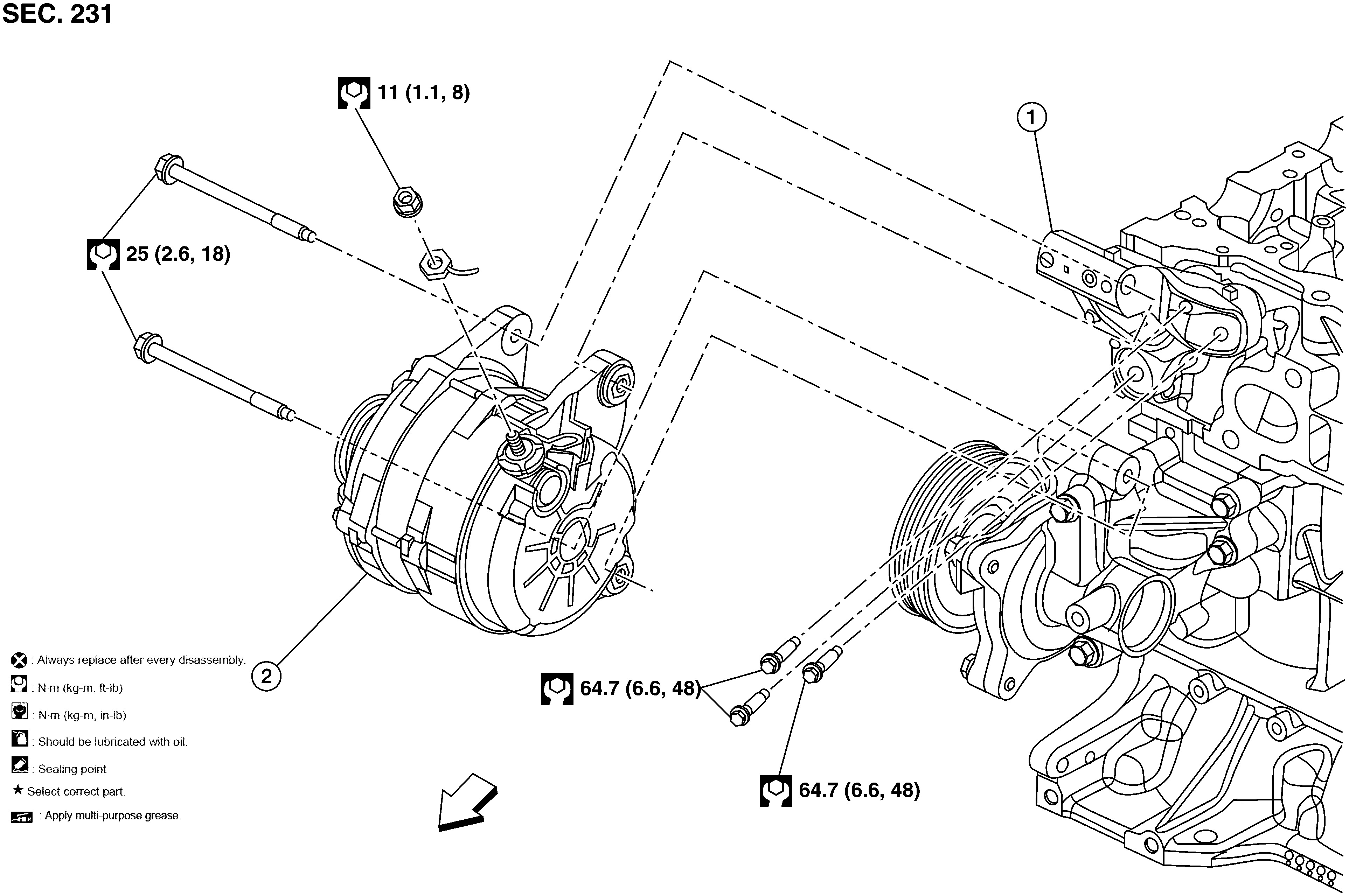

Fig 1: Exploded View Of Generator With Torque Specifications (QR25DE)
GNSAWMIA1594ZZ-594Courtesy of NISSAN NORTH AMERICA, INC.
1. Generator bracket 2. Generator ARROW Front
