Exploded View With Torque Specifications

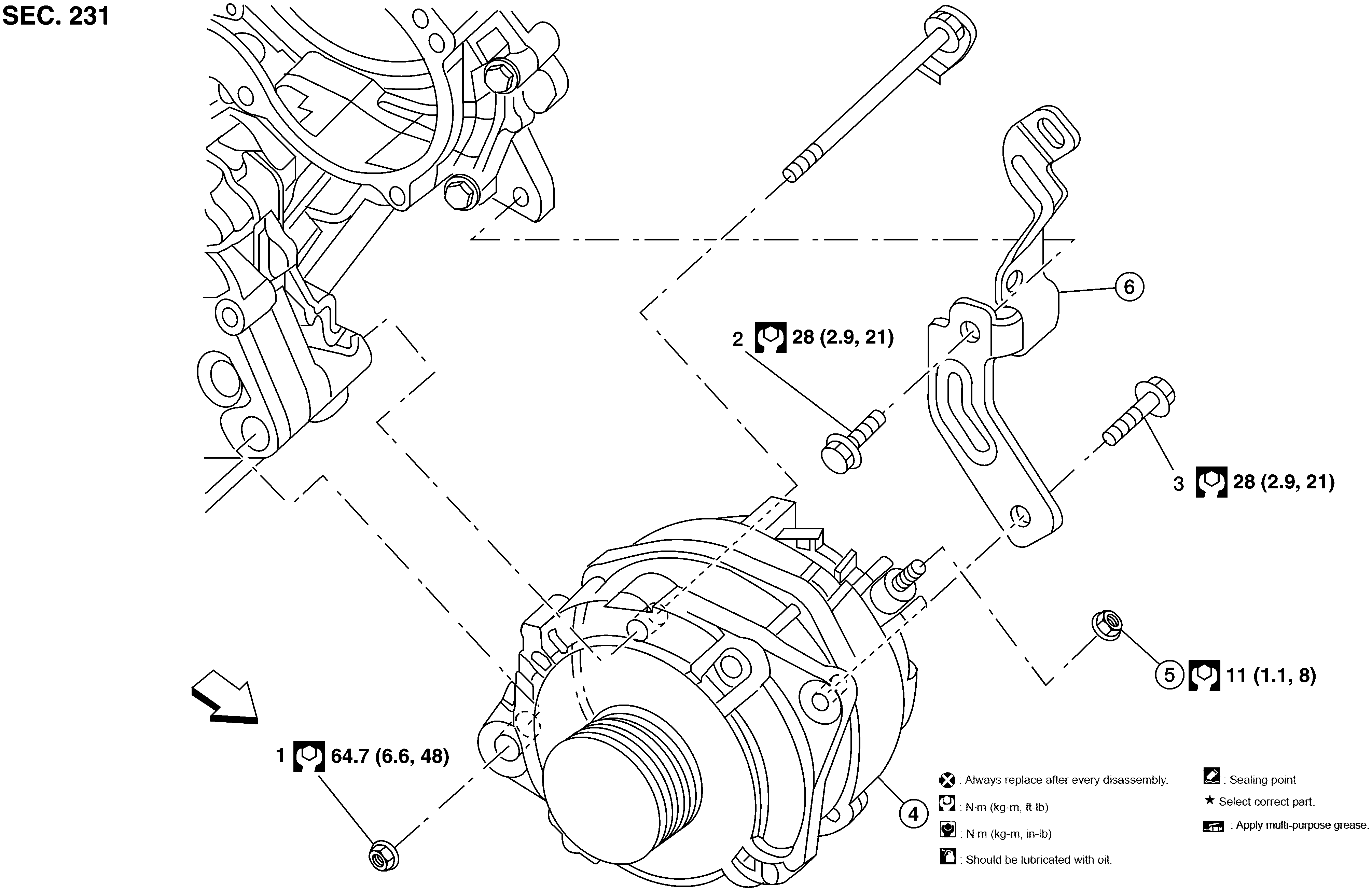

Fig 1: Exploded View Of Generator With Torque Specifications and Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 3	Tightening sequence	4.	Generator	5.	B terminal nut
6.	Generator bracket		Front
