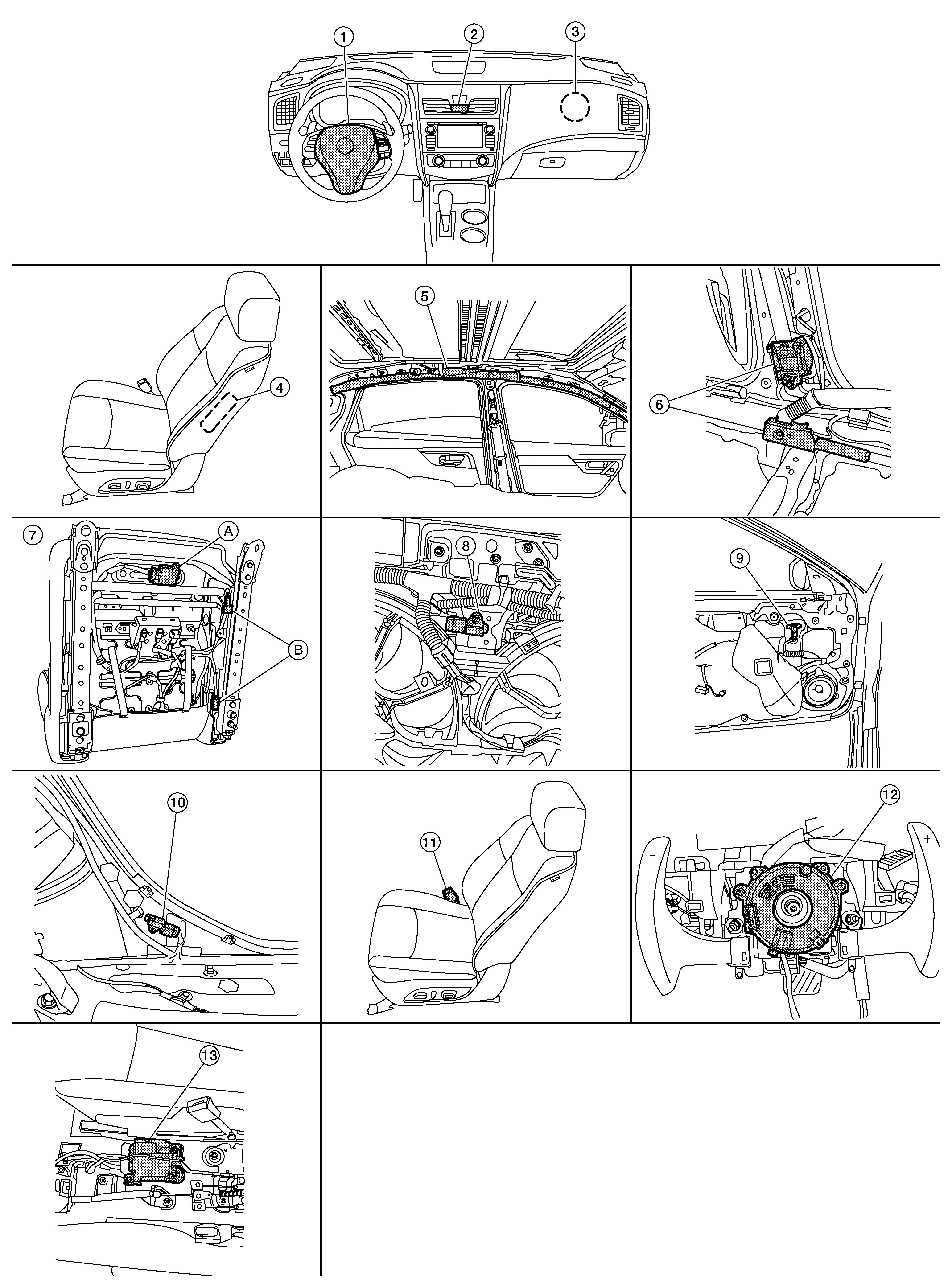

Component Parts Location
| 1. | Driver air bag module | 2. | Front passenger air bag off indicator | 3. | Front passenger air bag module |
| 4. | Front LH side air bag module (RH similar) |
5. | LH side curtain air bag module (view with headliner removed) (RH similar) |
6. | Front LH seat belt pre-tensioner (view with lower center pillar cover LH removed) (RH similar) |
| 7. | Occupant classification system control unit (A) Occupant classification system sensors (B) (view with front passenger seat removed) |
8. | Crash zone sensor (view with air intake removed) |
9. | Front door satellite sensor LH (view with front door finisher LH removed) (RH similar) |
| 10. | Rear side air bag satellite sensor LH (view with dash side lower finisher LH removed) (RH similar) |
11. | Seat belt buckle switch (LH) (RH seat similar) |
12. | Spiral cable (view with steering wheel removed) |
| 13. | Air bag diagnosis sensor unit (view with center console assembly removed) |
