Driver Air Bag Module

The driver air bag module is dual stage and located in the steering wheel assembly. It operates with the SRS system in a frontal collision exceeding a specified level.

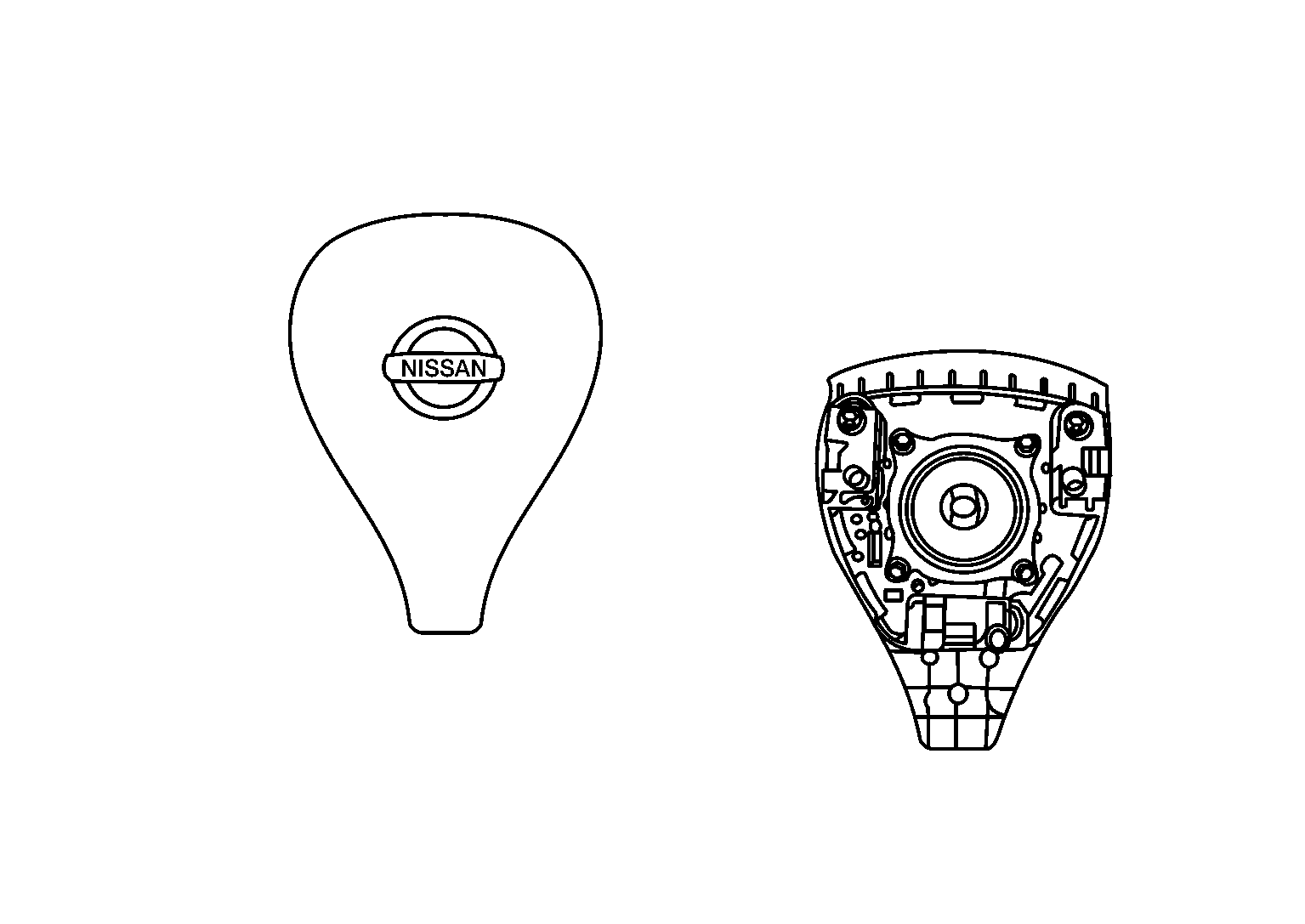

Fig 1: Identifying Driver Air Bag Module
G08686577Courtesy of NISSAN NORTH AMERICA, INC.
