Removal And Installation: Removal

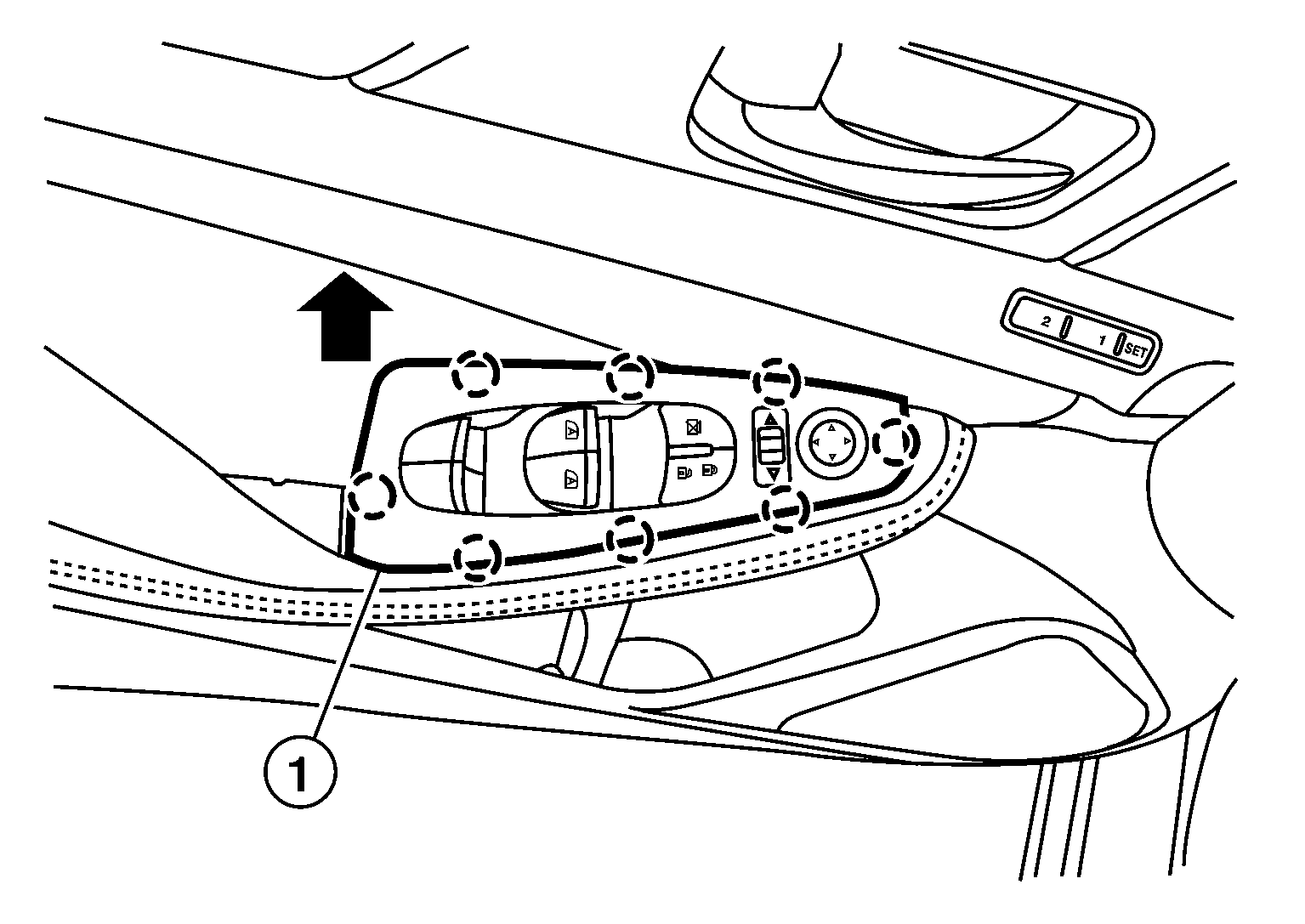

Release pawls using a suitable tool and the remove main power window and door lock/unlock switch finisher (1) upward in direction shown ( ).

Fig 1: Removing Door Mirror Switch
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.

Fig 2: Identifying Switches And Connector
Courtesy of NISSAN NORTH AMERICA, INC.

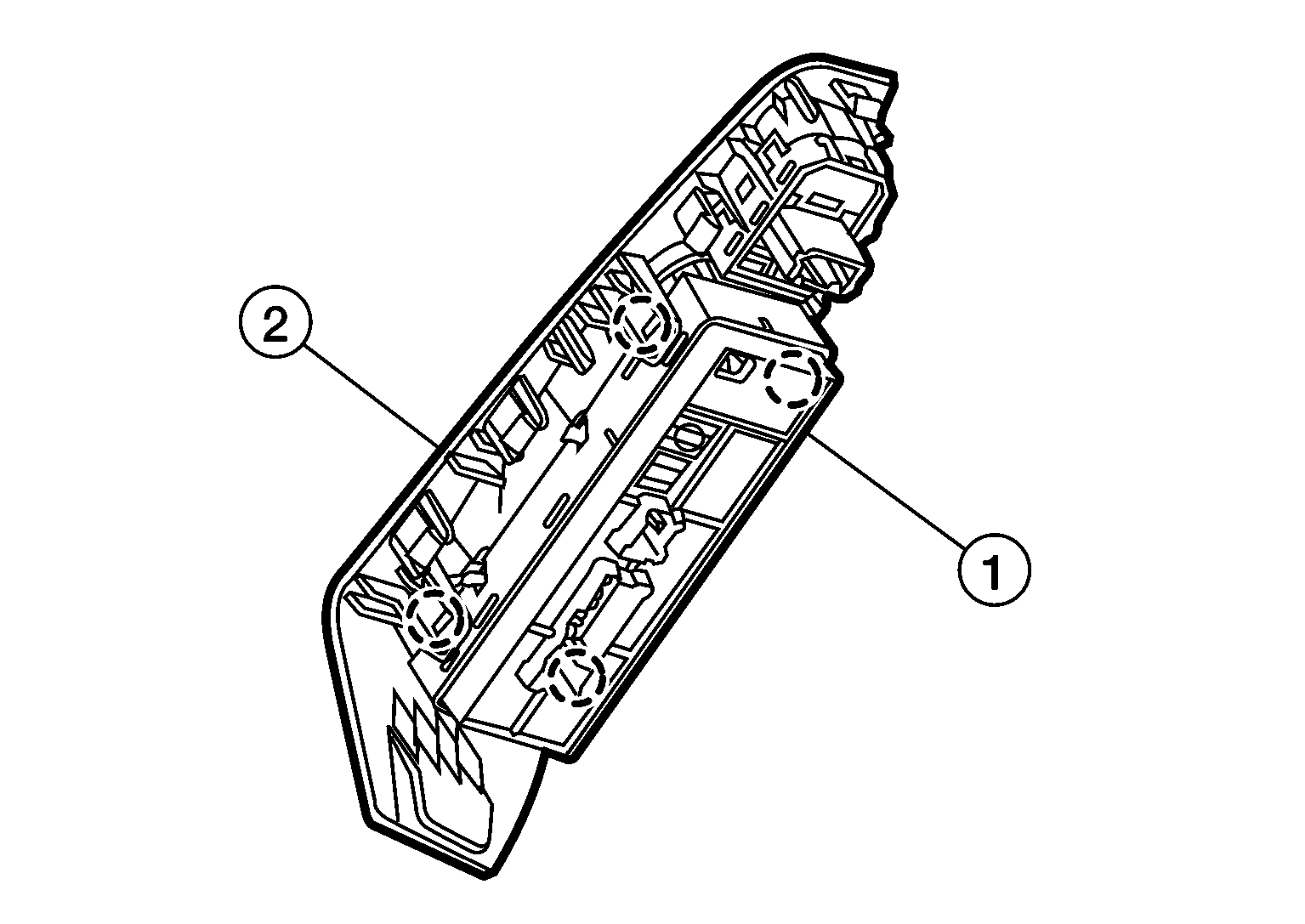

Release pawls, then remove main power window and door lock/unlock switch (1) from the switch finisher (2).

Fig 3: Identifying Switch, Pawls And Finisher
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
