Vacuum Hose Drawing

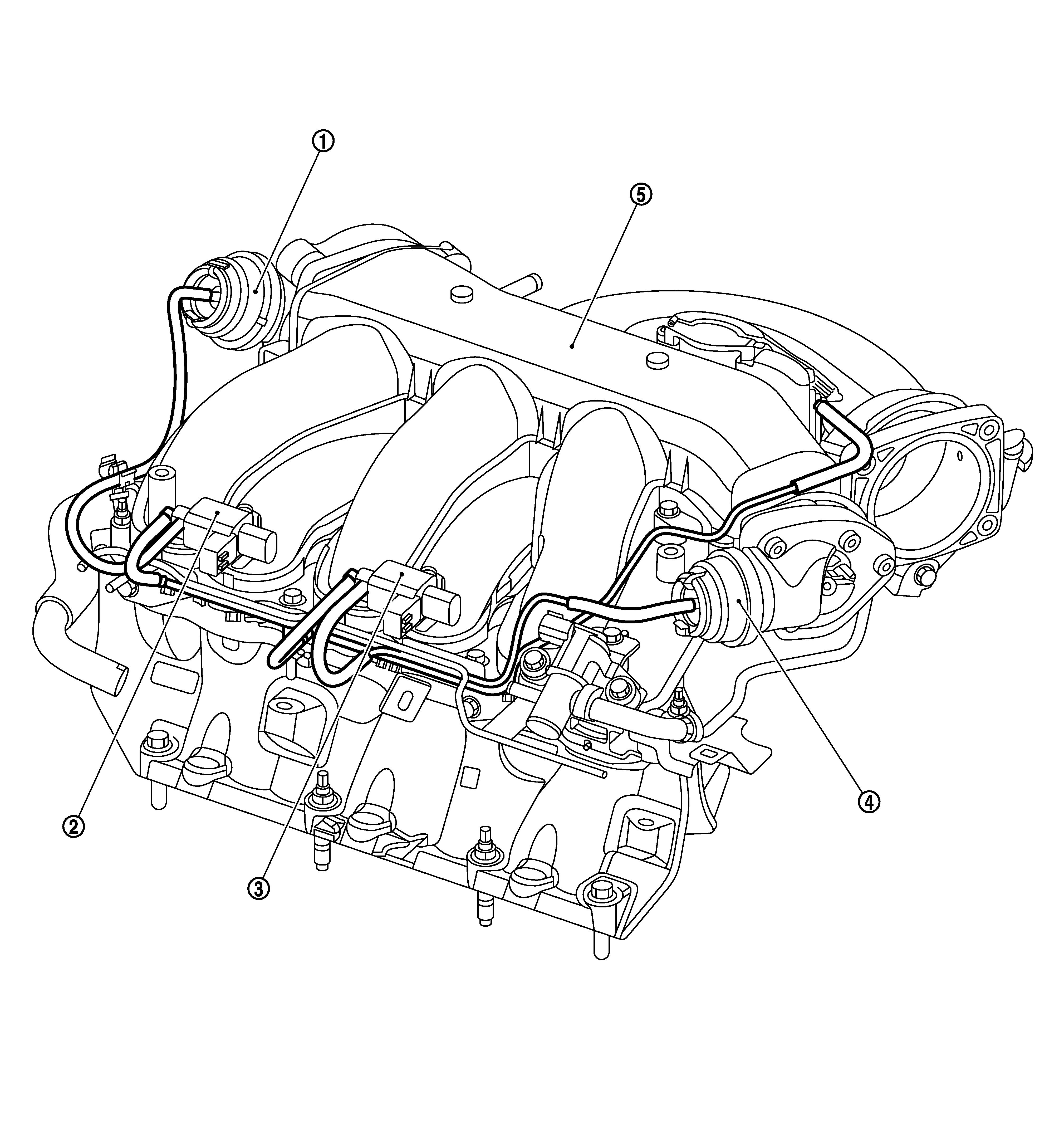

Fig 1: Locating Variable Induction Air System Components
G06989879Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Power valve actuator 1 WHITE-2 VIAS control solenoid valve 1 WHITE-3 VIAS control solenoid valve 2
WHITE-4 Power valve actuator 2 WHITE-5 Intake manifold collector
