Exploded View With Torque Specifications

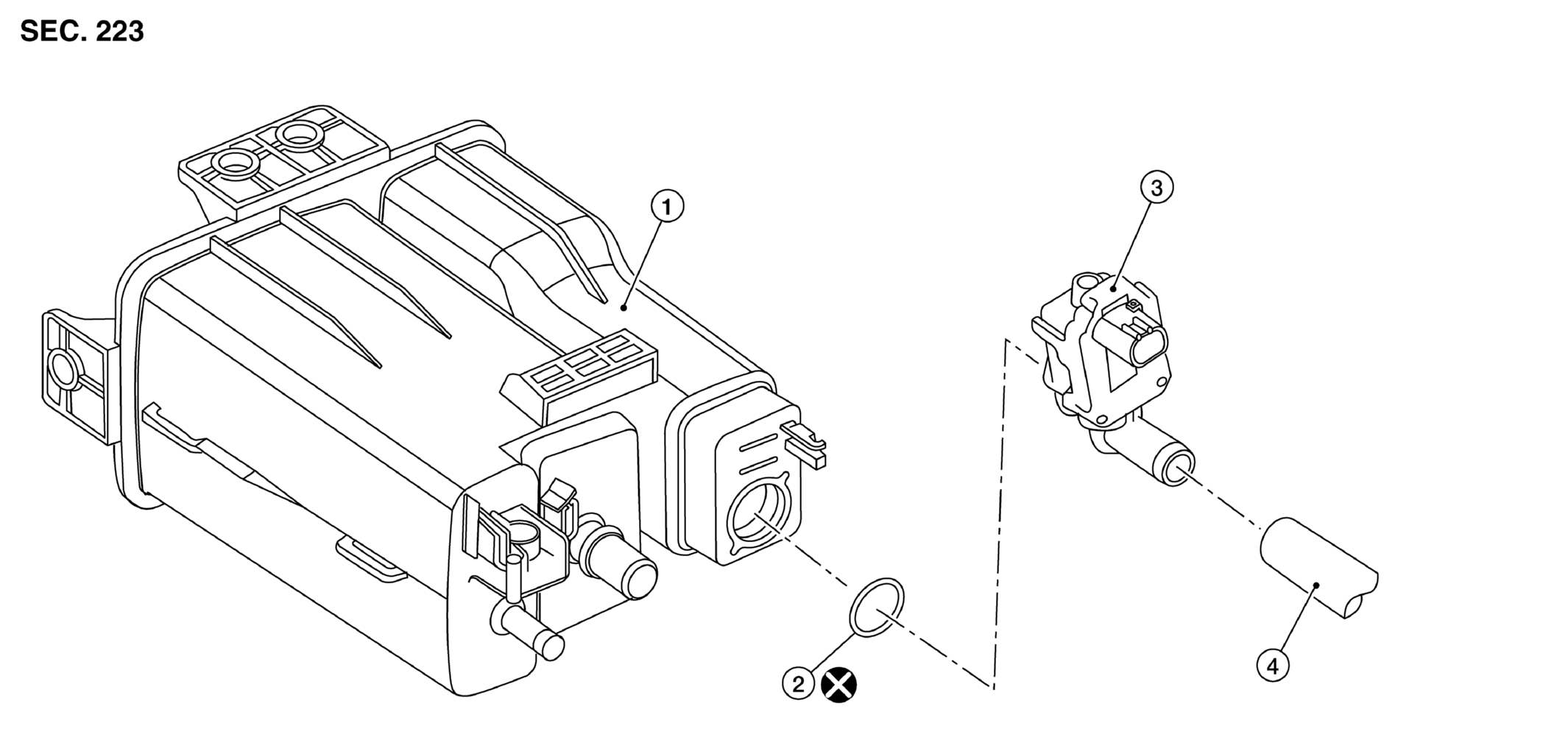

Fig 1: Exploded View Of EVAP Canister Vent Control Valve
GNSALBIA0793ZZ-793Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP canister 2. O-ring 3. EVAP canister vent control valve
4. EVAP canister vent control valve hose
