Engine Oil Pressure Warning Lamp: Design/Purpose

When engine oil pressure is low, the oil pressure warning lamp informs the driver of low oil pressure to prevent damage to the engine.

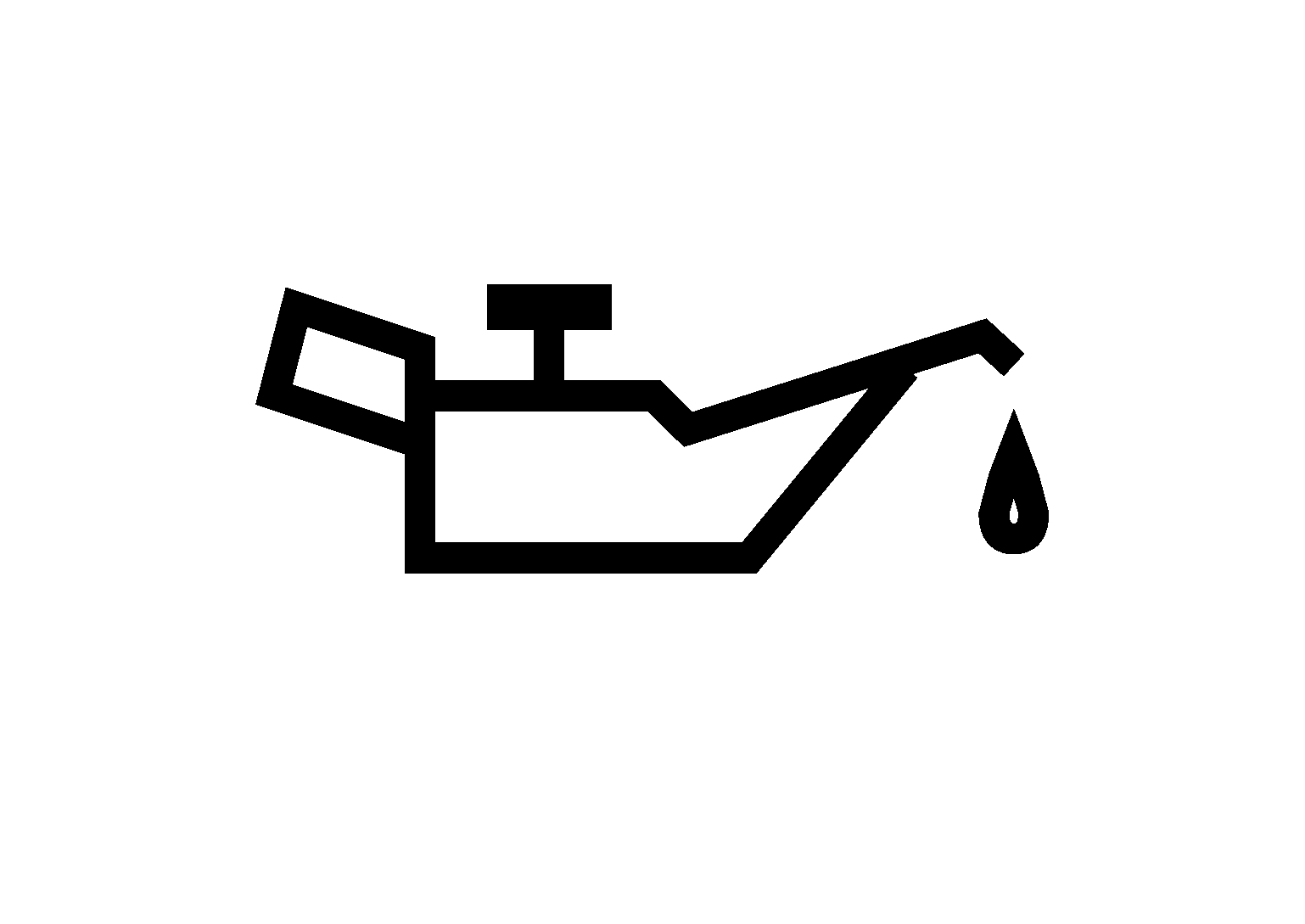

Fig 1: Identifying Oil Pressure Warning Lamp
GNSJPNIA1881ZZ-881Courtesy of NISSAN NORTH AMERICA, INC.
