Intake Valve Timing Intermediate Lock Control - System Description

The intake valve timing intermediate lock control improves the cleaning ability of exhaust gas at cold starting by fixing the camshaft sprocket (INT) with two lock keys and bringing the cam phase into intermediate phase.

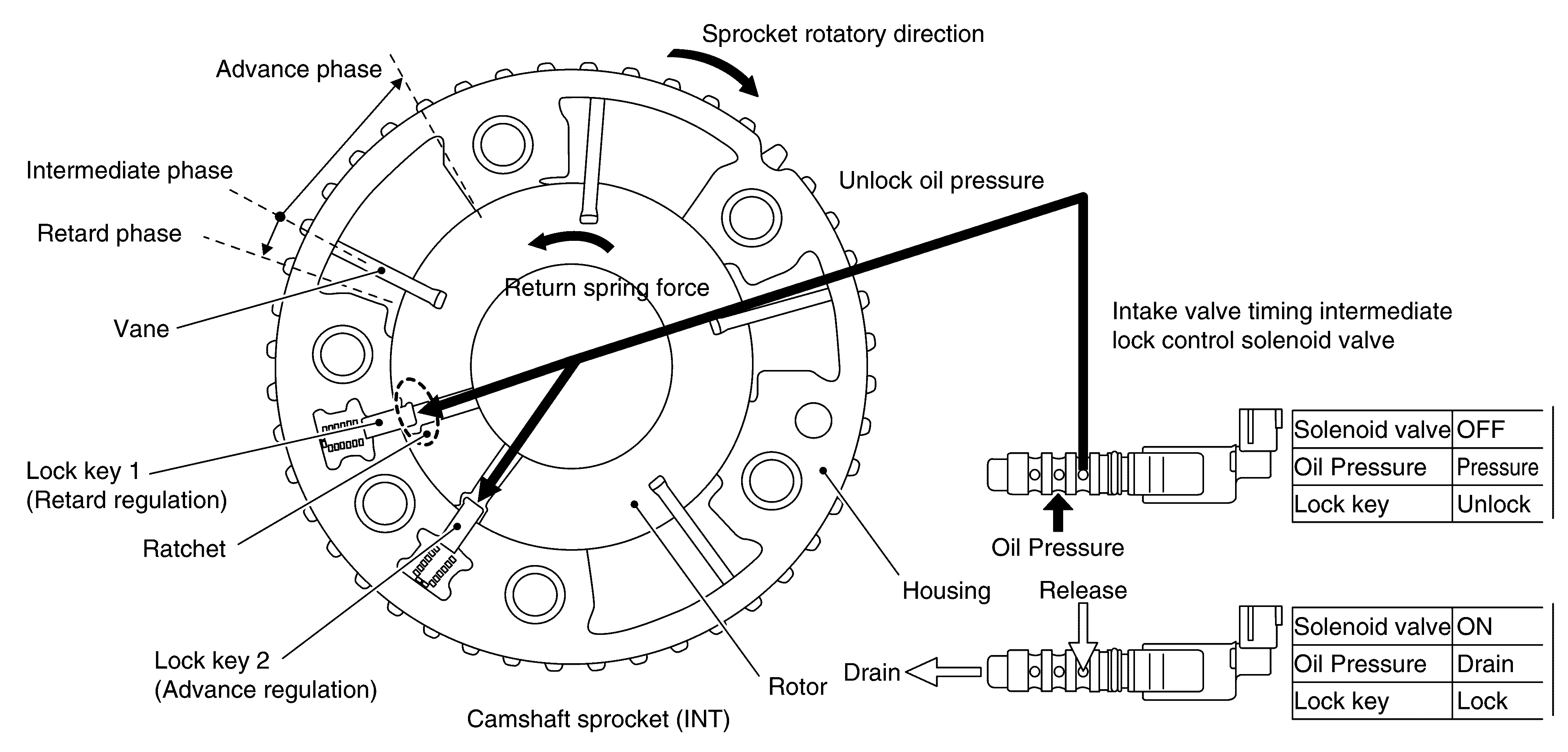

Fig 1: Intake Valve Timing Intermediate Lock Control Operation Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Cam phase is fixed at the intermediate phase by two lock keys in the camshaft sprocket (INT).

ECM controls the intermediate phase lock by opening/closing the intake valve timing intermediate lock control solenoid valve to control oil pressure acting on the lock key and locking/unlocking the lock key.
