Circuit Diagram

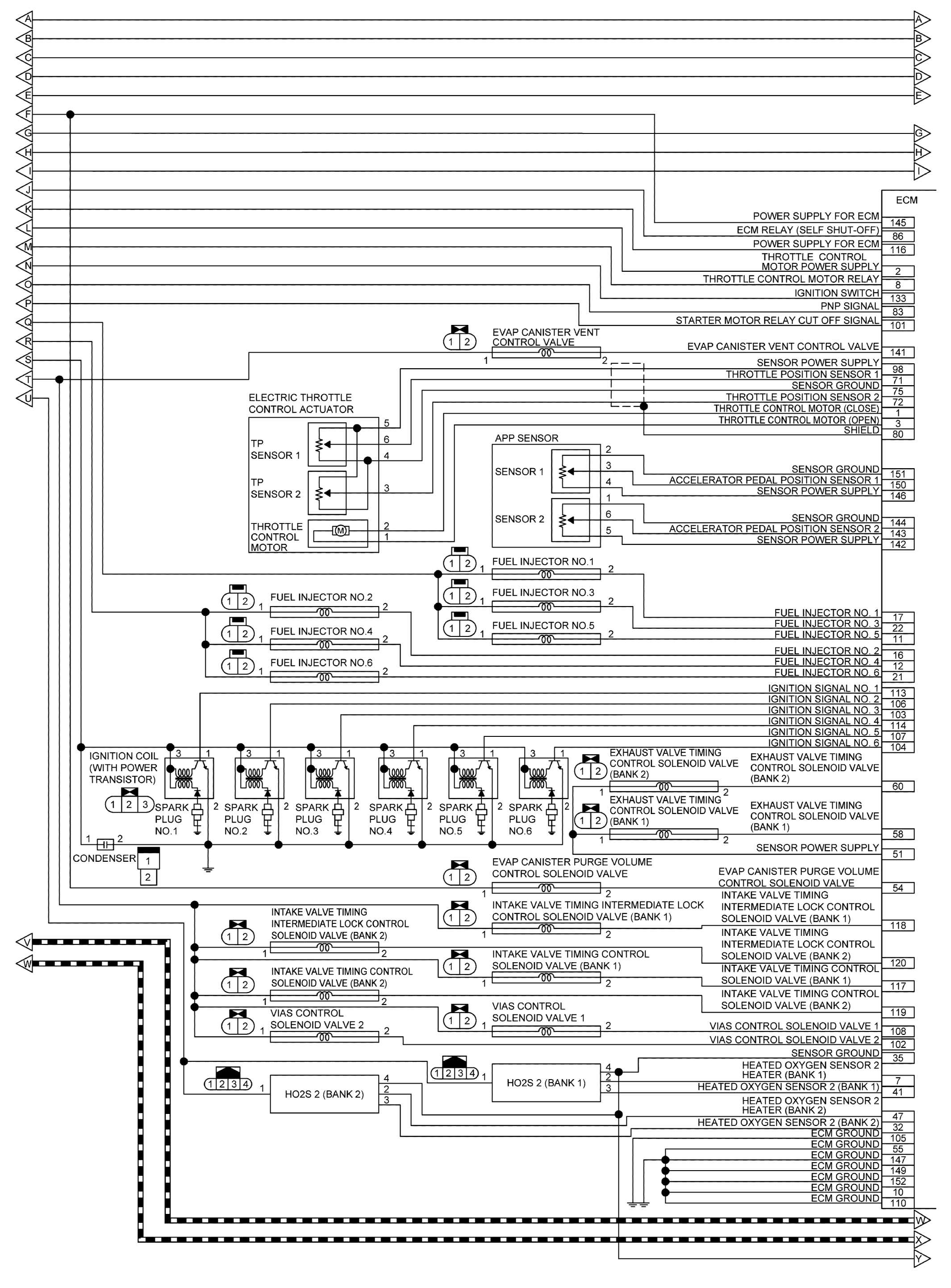

Fig 1: Engine Control System Circuit Diagram With Connector Terminal Identification (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

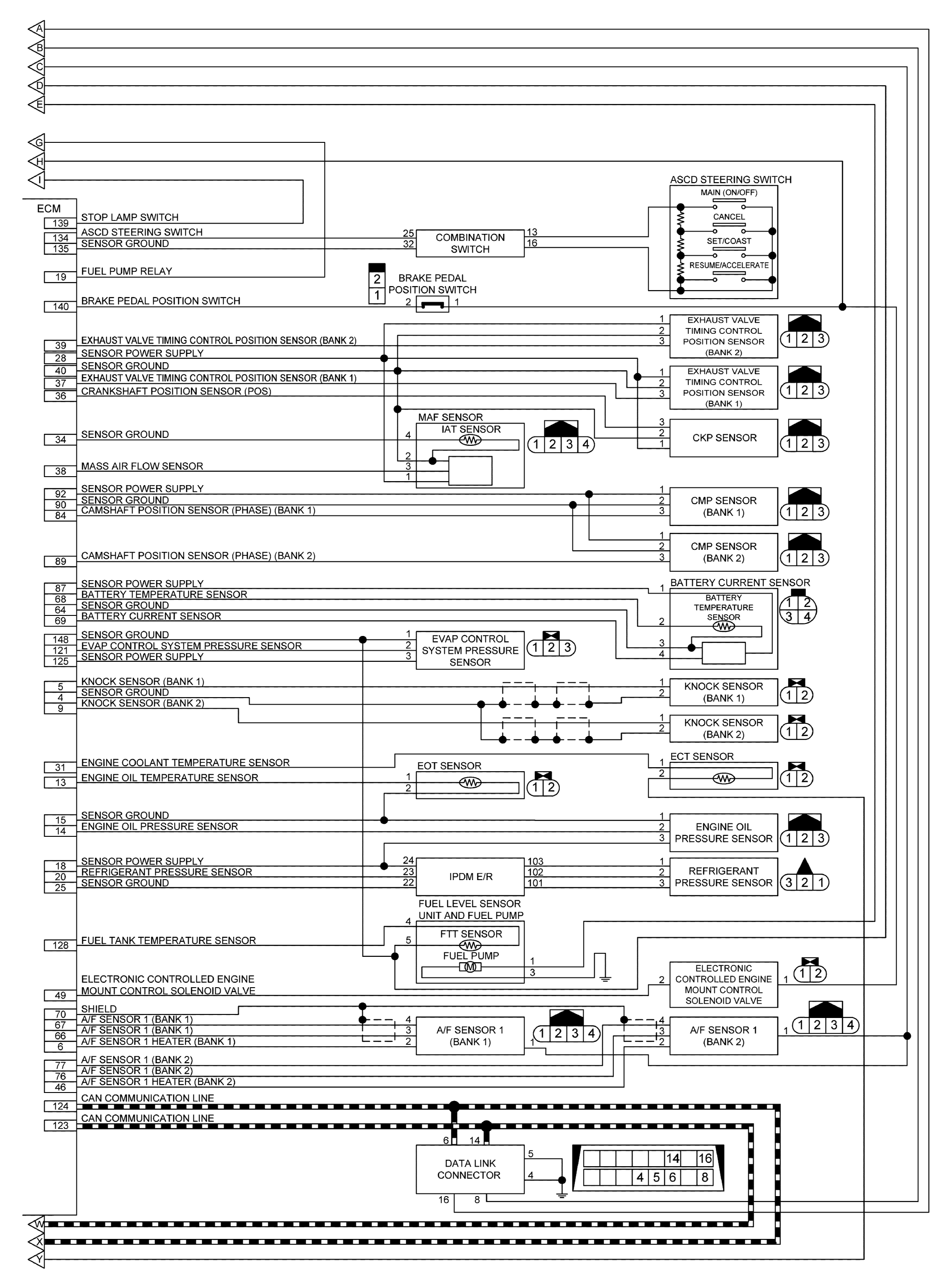

Fig 2: Engine Control System Circuit Diagram With Connector Terminal Identification (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

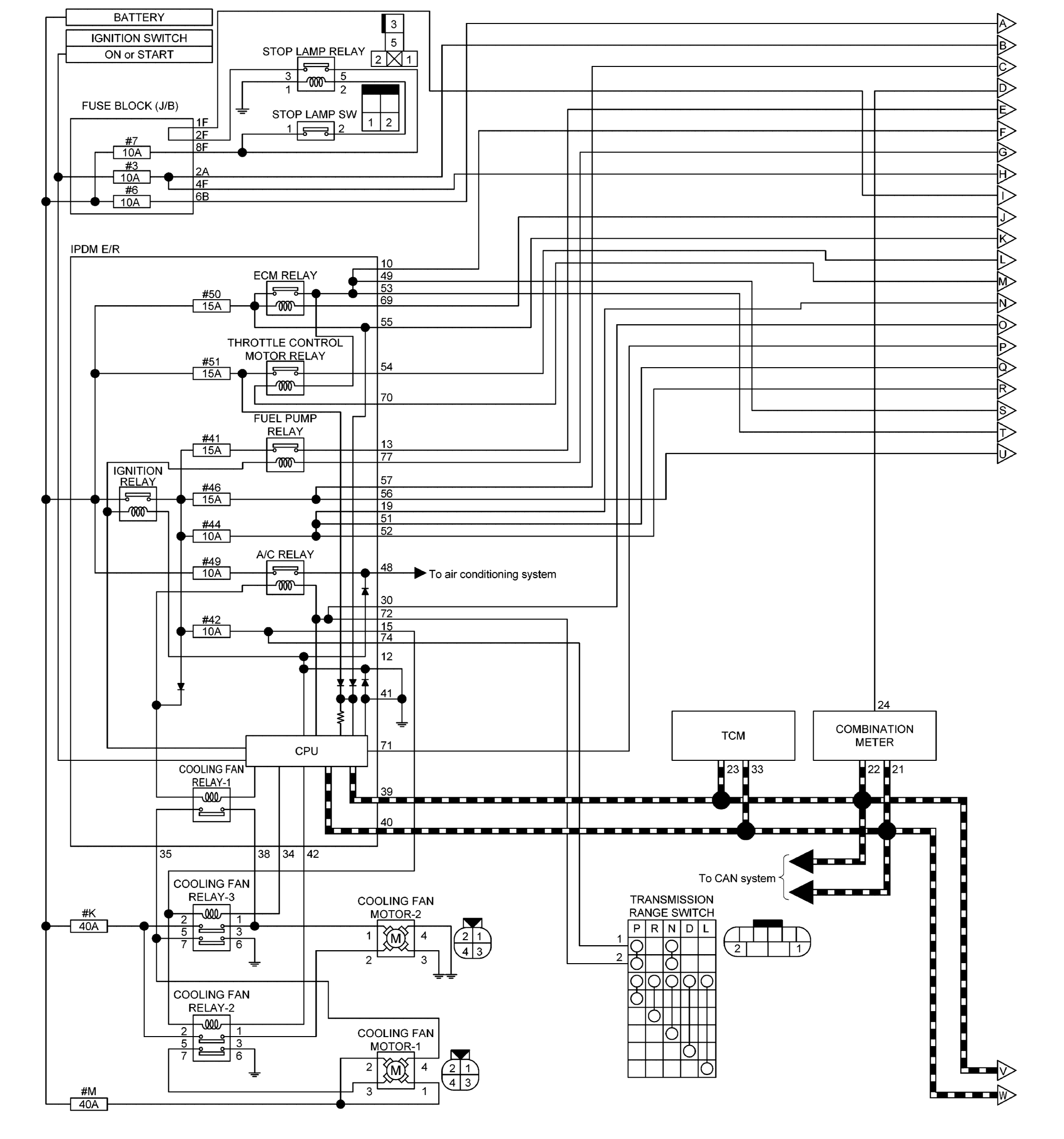

Fig 3: Engine Control System Circuit Diagram With Connector Terminal Identification (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

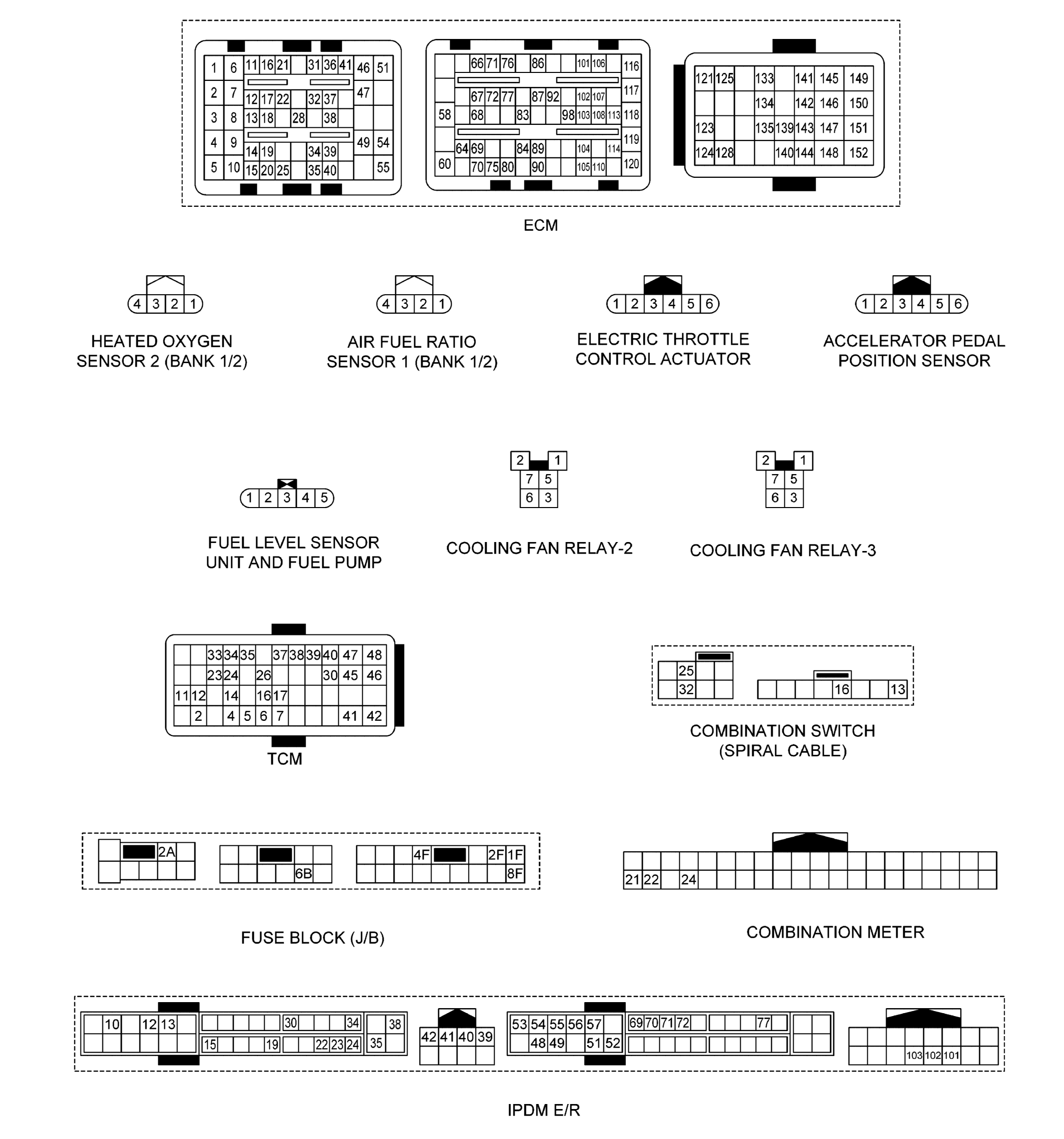

Fig 4: Engine Control System Circuit Diagram With Connector Terminal Identification (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
