Engine Control System: Wiring Diagram

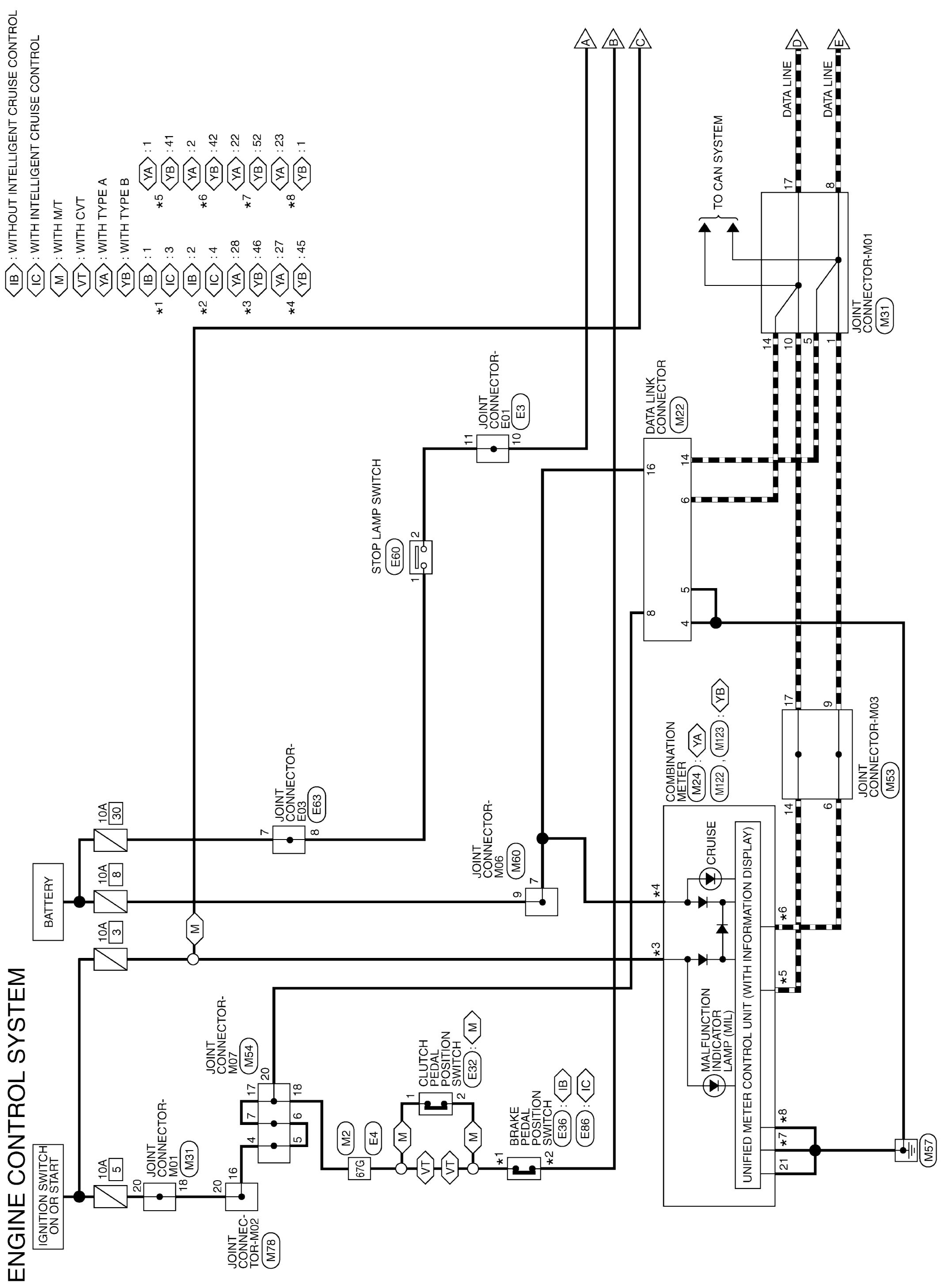

Fig 1: Engine Control System Wiring Diagram (1 Of 6)

GNSABBWA1712GB-712

Courtesy of NISSAN NORTH AMERICA, INC.

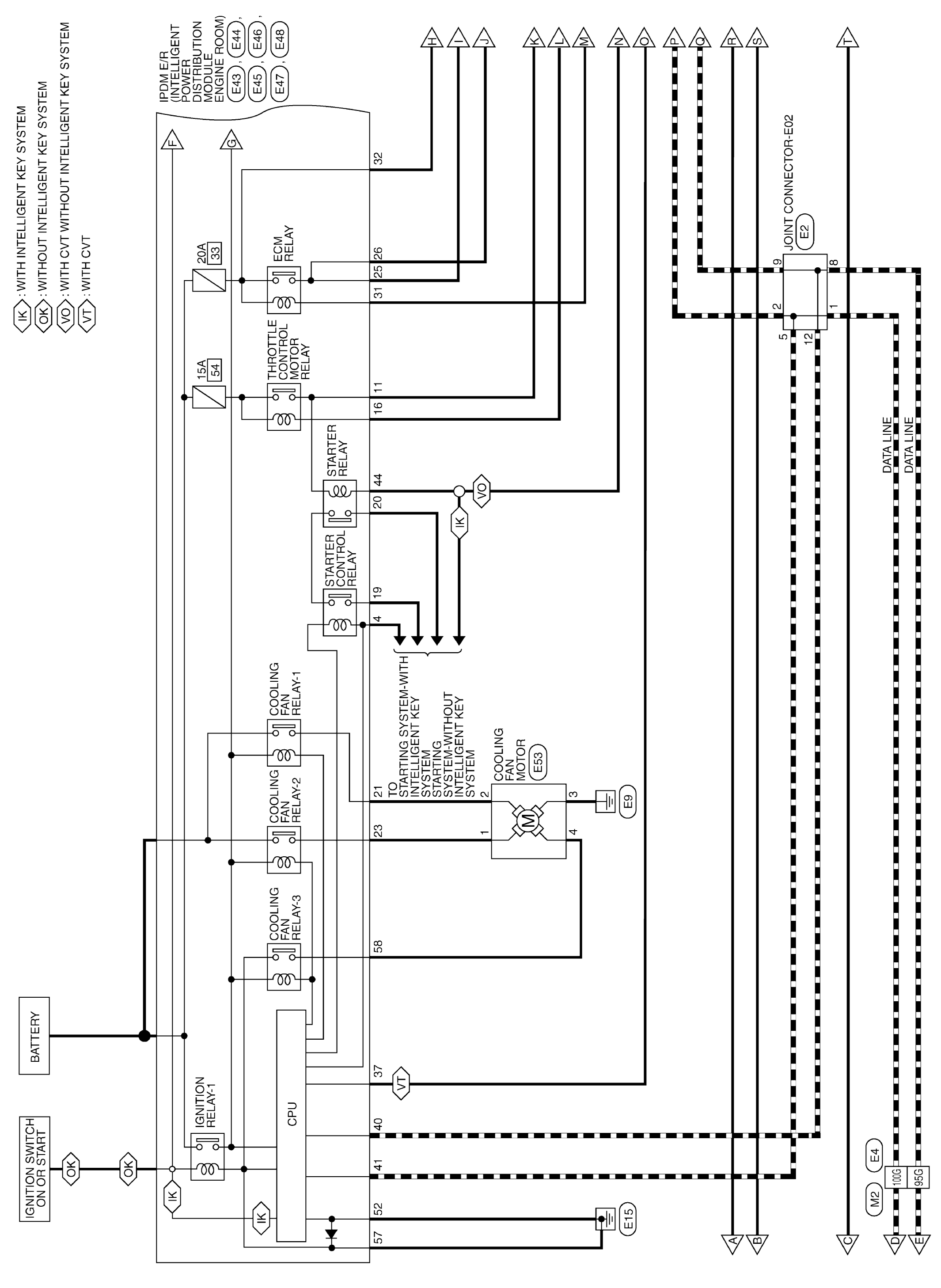

Fig 2: Engine Control System Wiring Diagram (2 Of 6)

GNSABBWA1713GB-713

Courtesy of NISSAN NORTH AMERICA, INC.

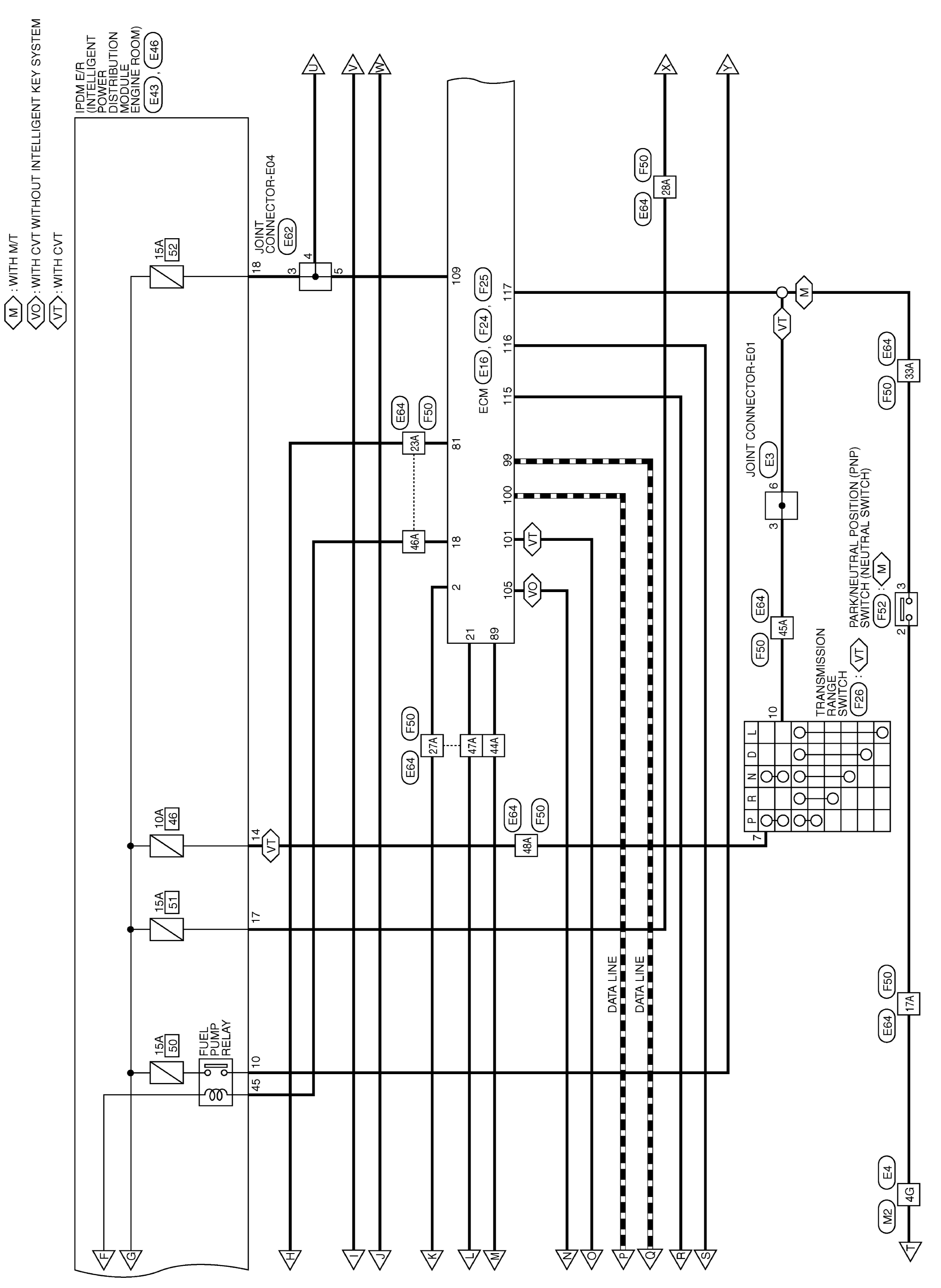

Fig 3: Engine Control System Wiring Diagram (3 Of 6)

GNSABBWA1714GB-714

Courtesy of NISSAN NORTH AMERICA, INC.

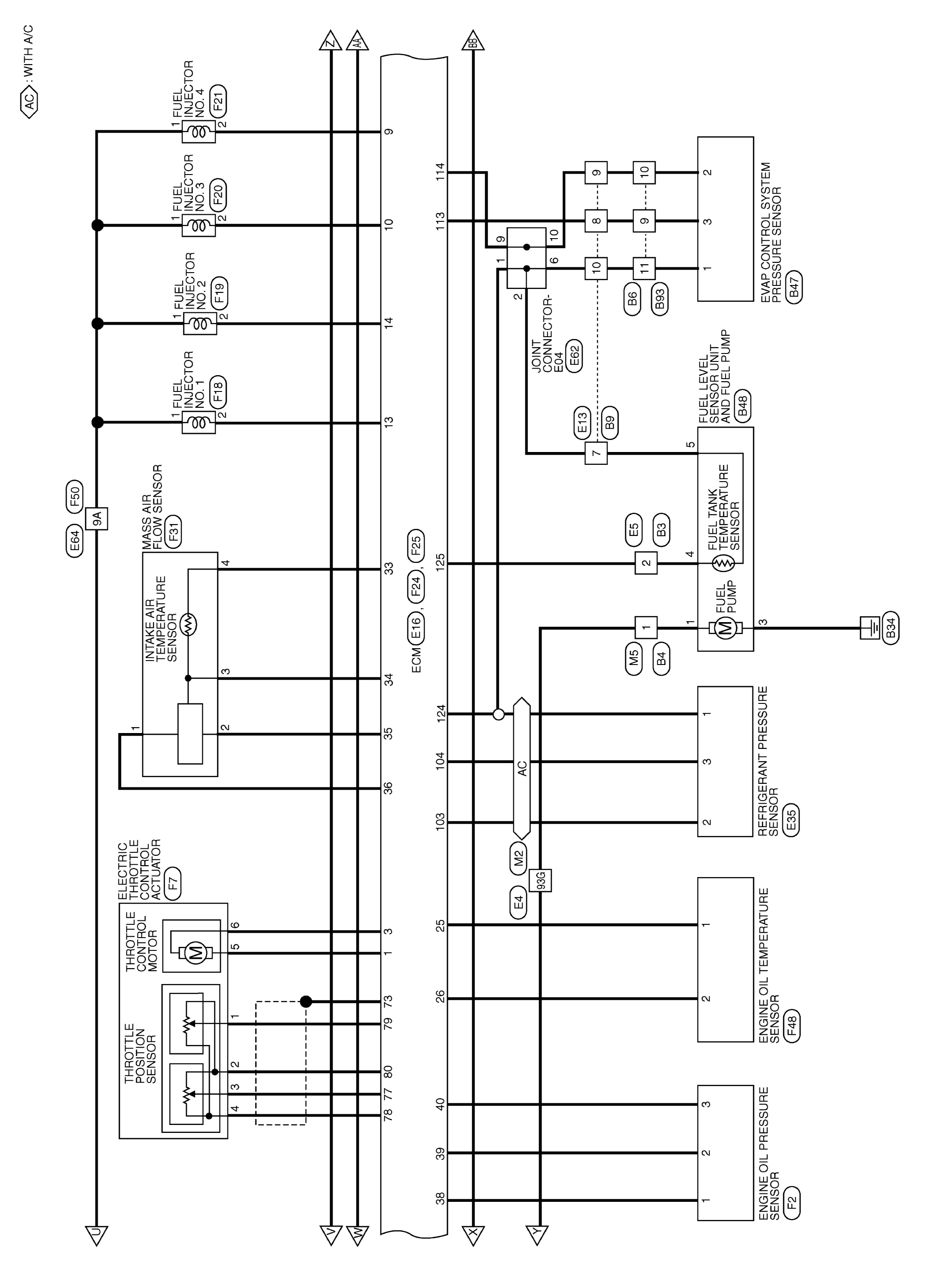

Fig 4: Engine Control System Wiring Diagram (4 Of 6)

GNSABBWA1715GB-715

Courtesy of NISSAN NORTH AMERICA, INC.

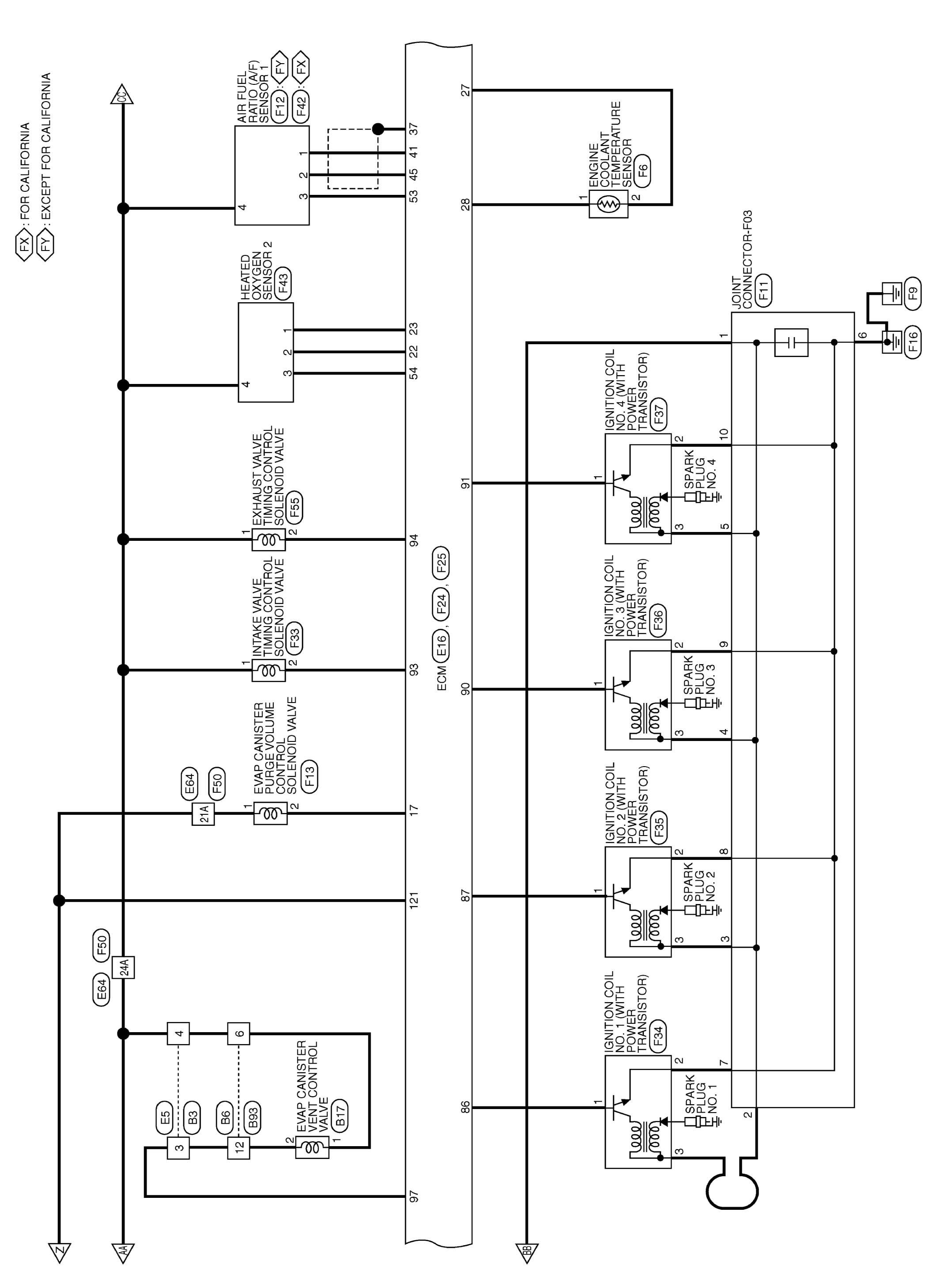

Fig 5: Engine Control System Wiring Diagram (5 Of 6)

GNSABBWA1716GB-716

Courtesy of NISSAN NORTH AMERICA, INC.

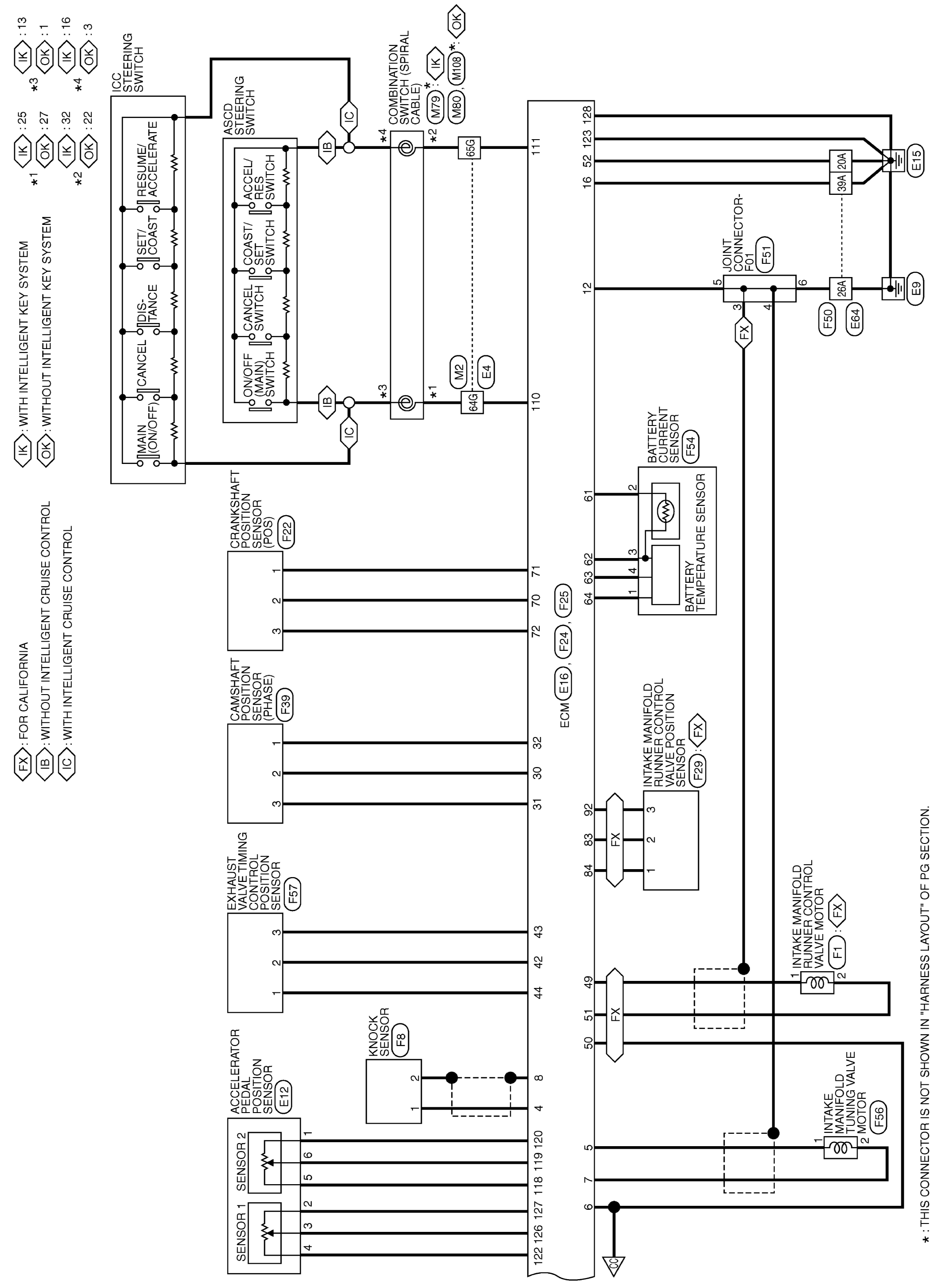

Fig 6: Engine Control System Wiring Diagram (6 Of 6)

GNSABBWA1717GB-717

Courtesy of NISSAN NORTH AMERICA, INC.

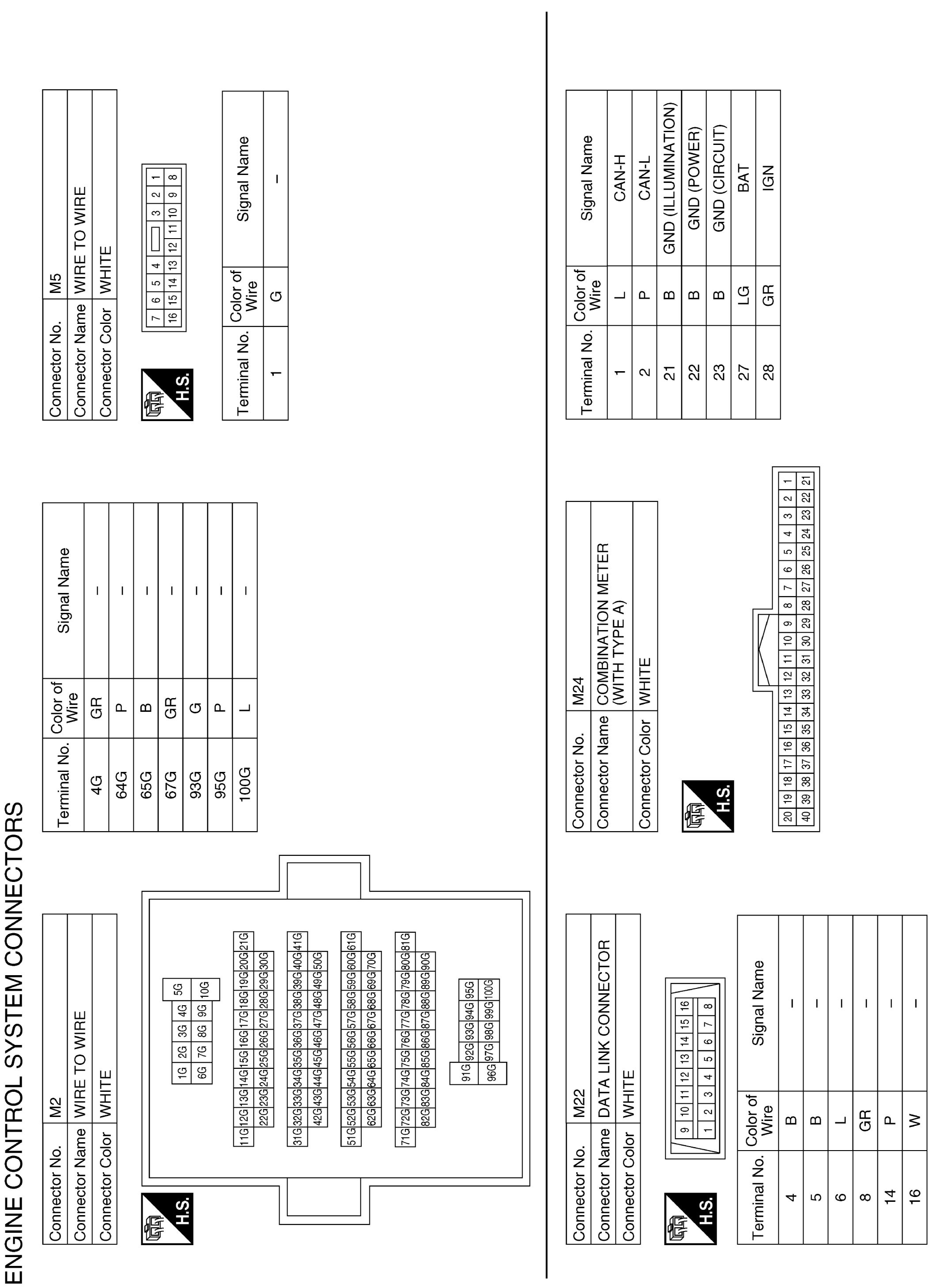

Fig 7: Engine Control System Connectors (1 Of 16)

GNSABBIA3300GB-300

Courtesy of NISSAN NORTH AMERICA, INC.

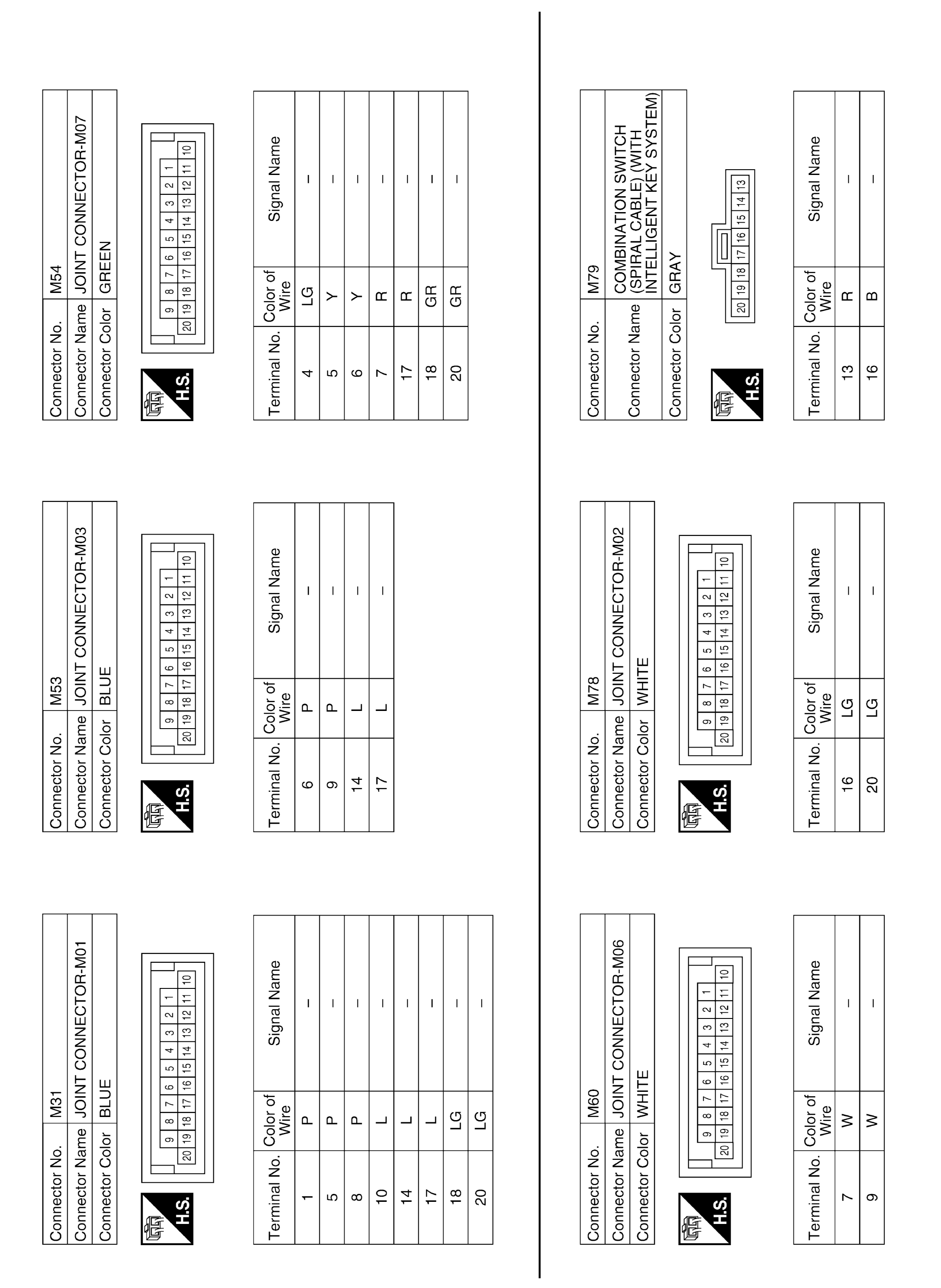

Fig 8: Engine Control System Connectors (2 Of 16)

GNSABBIA3301GB-301

Courtesy of NISSAN NORTH AMERICA, INC.

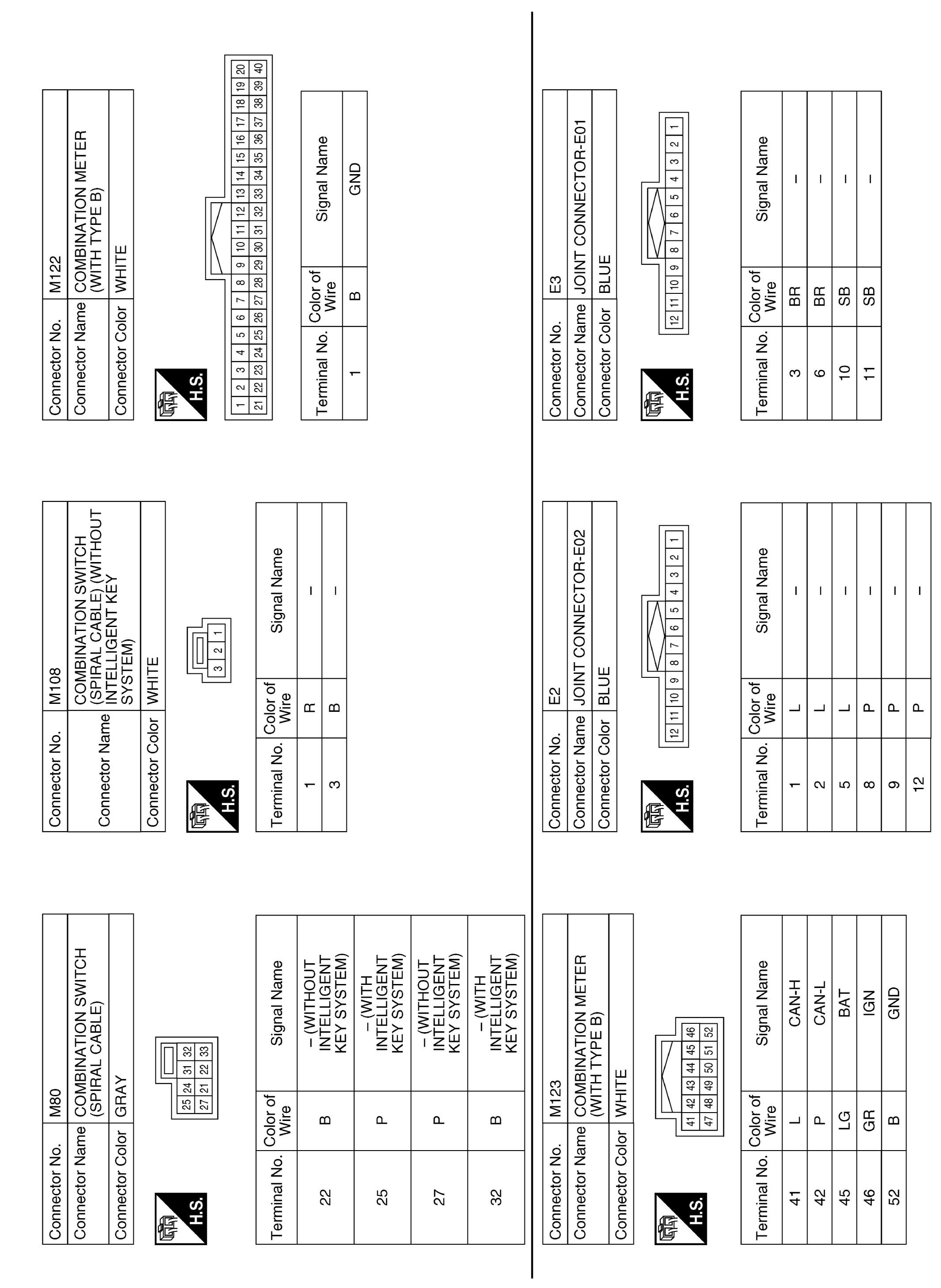

Fig 9: Engine Control System Connectors (3 Of 16)

GNSABBIA3302GB-302

Courtesy of NISSAN NORTH AMERICA, INC.

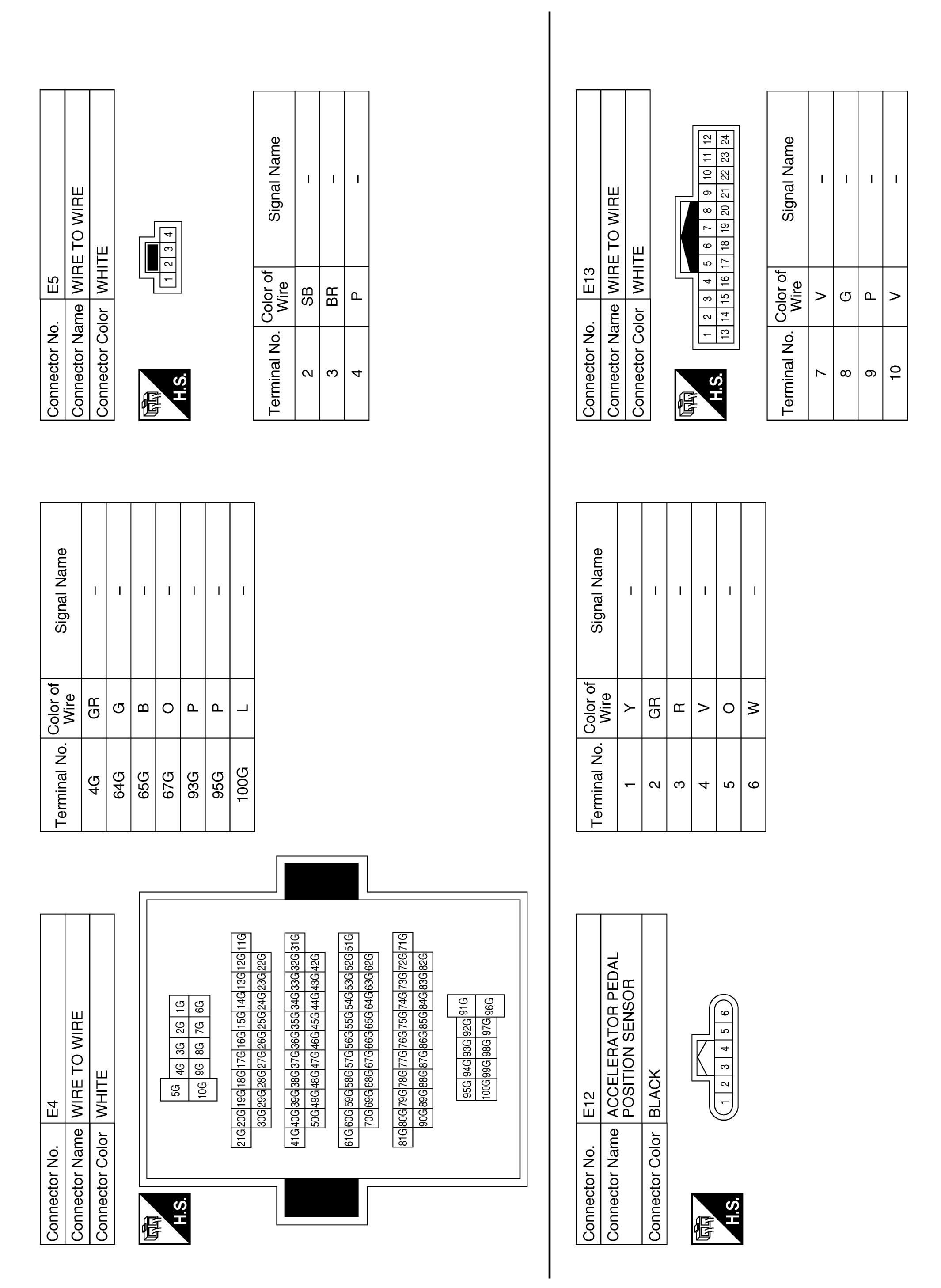

Fig 10: Engine Control System Connectors (4 Of 16)

GNSABBIA3303GB-303

Courtesy of NISSAN NORTH AMERICA, INC.

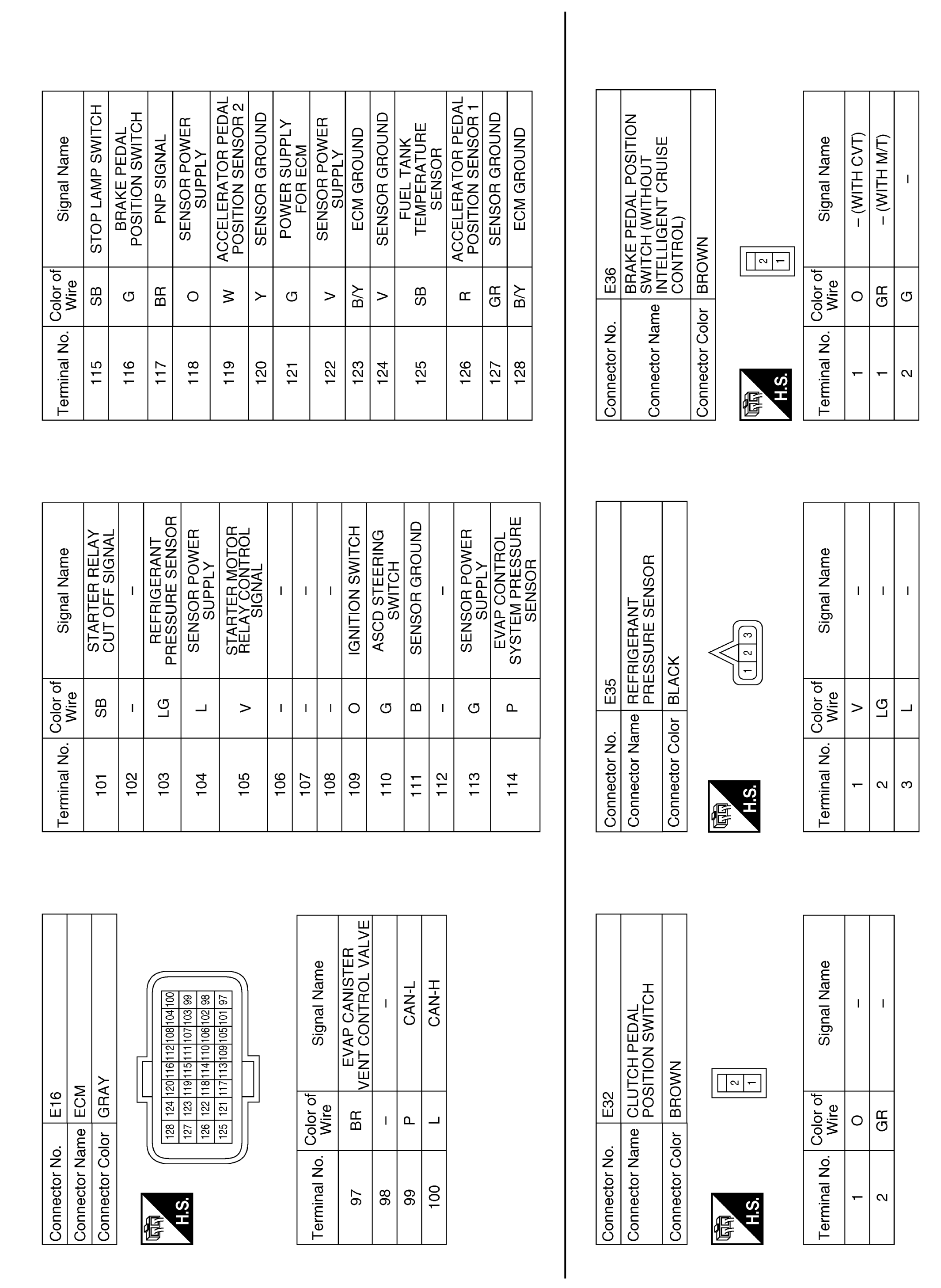

Fig 11: Engine Control System Connectors (5 Of 16)

GNSABBIA3304GB-304

Courtesy of NISSAN NORTH AMERICA, INC.

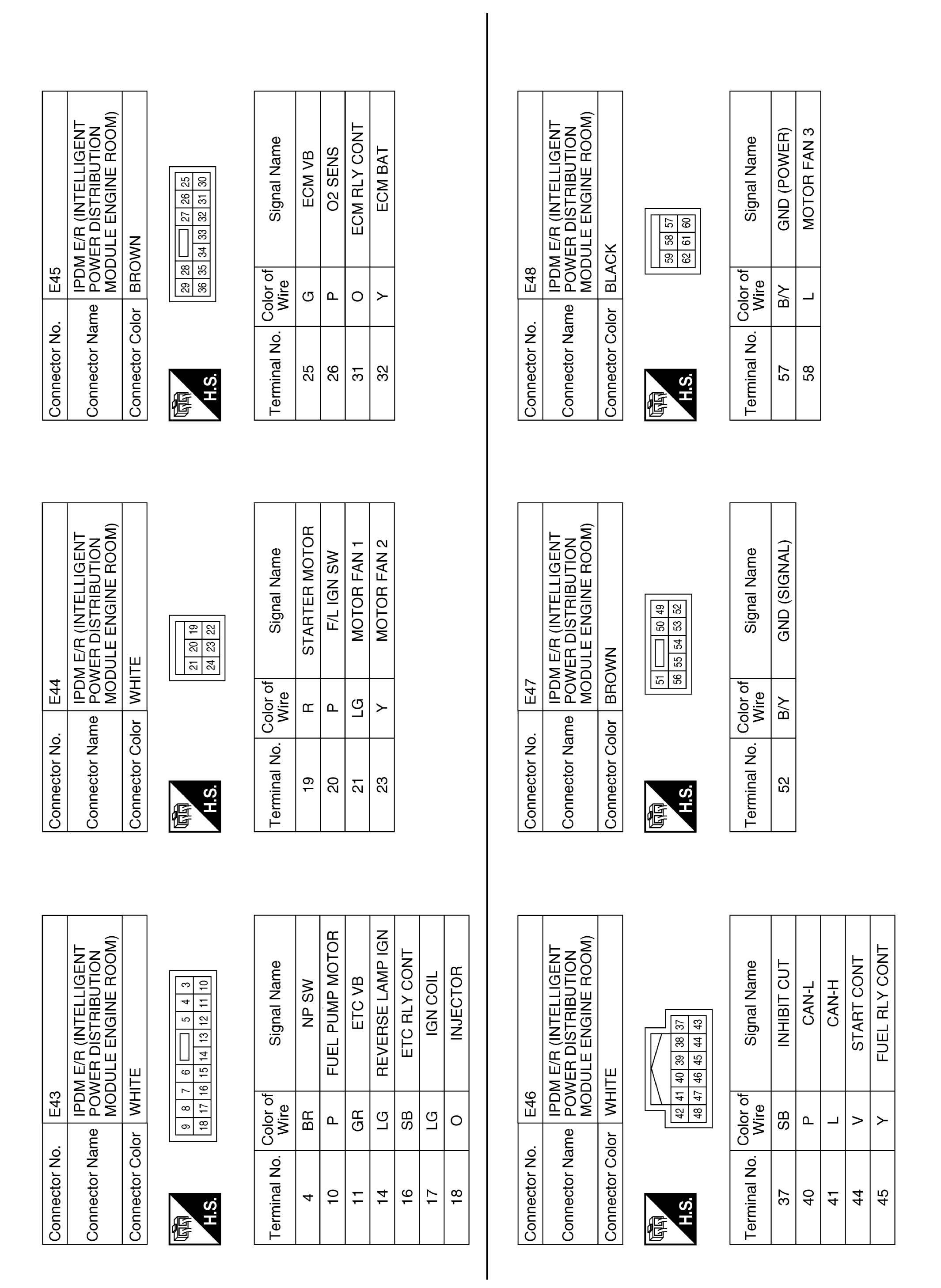

Fig 12: Engine Control System Connectors (6 Of 16)

GNSABBIA3305GB-305

Courtesy of NISSAN NORTH AMERICA, INC.

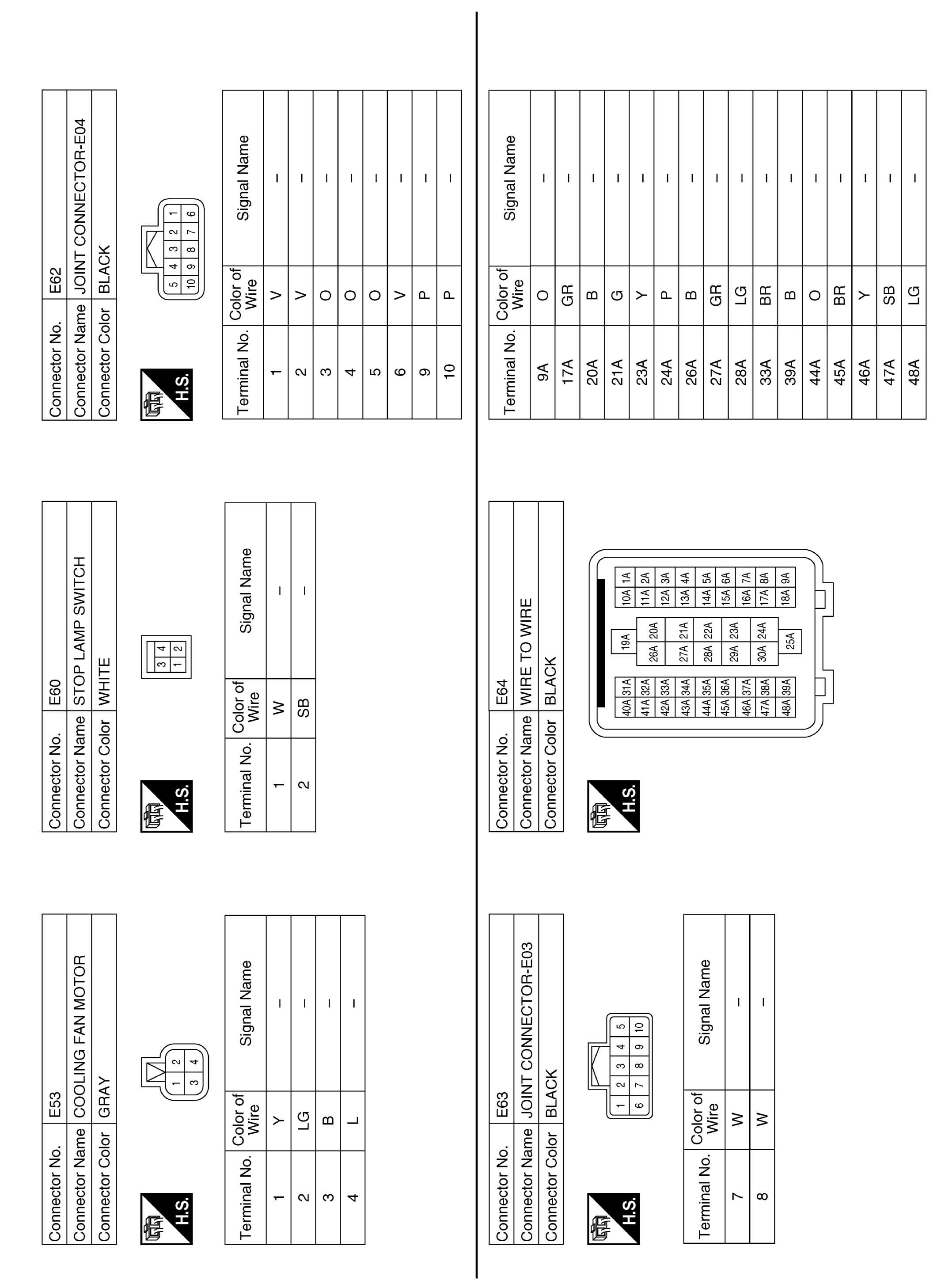

Fig 13: Engine Control System Connectors (7 Of 16)

GNSABBIA3306GB-306

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Connectors (8 Of 16)

GNSABBIA3307GB-307

Courtesy of NISSAN NORTH AMERICA, INC.

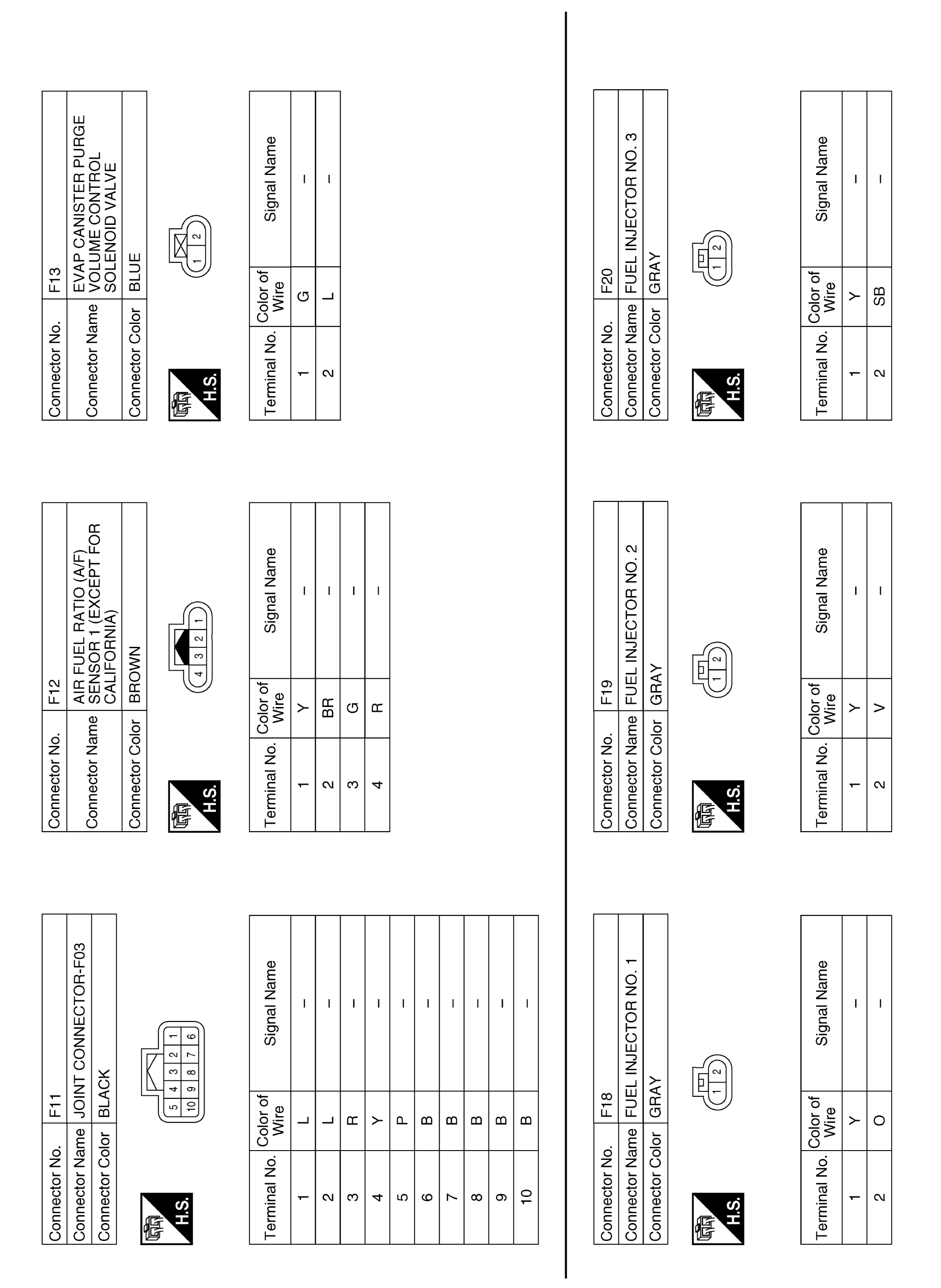

Fig 15: Engine Control System Connectors (9 Of 16)

GNSABBIA3308GB-308

Courtesy of NISSAN NORTH AMERICA, INC.

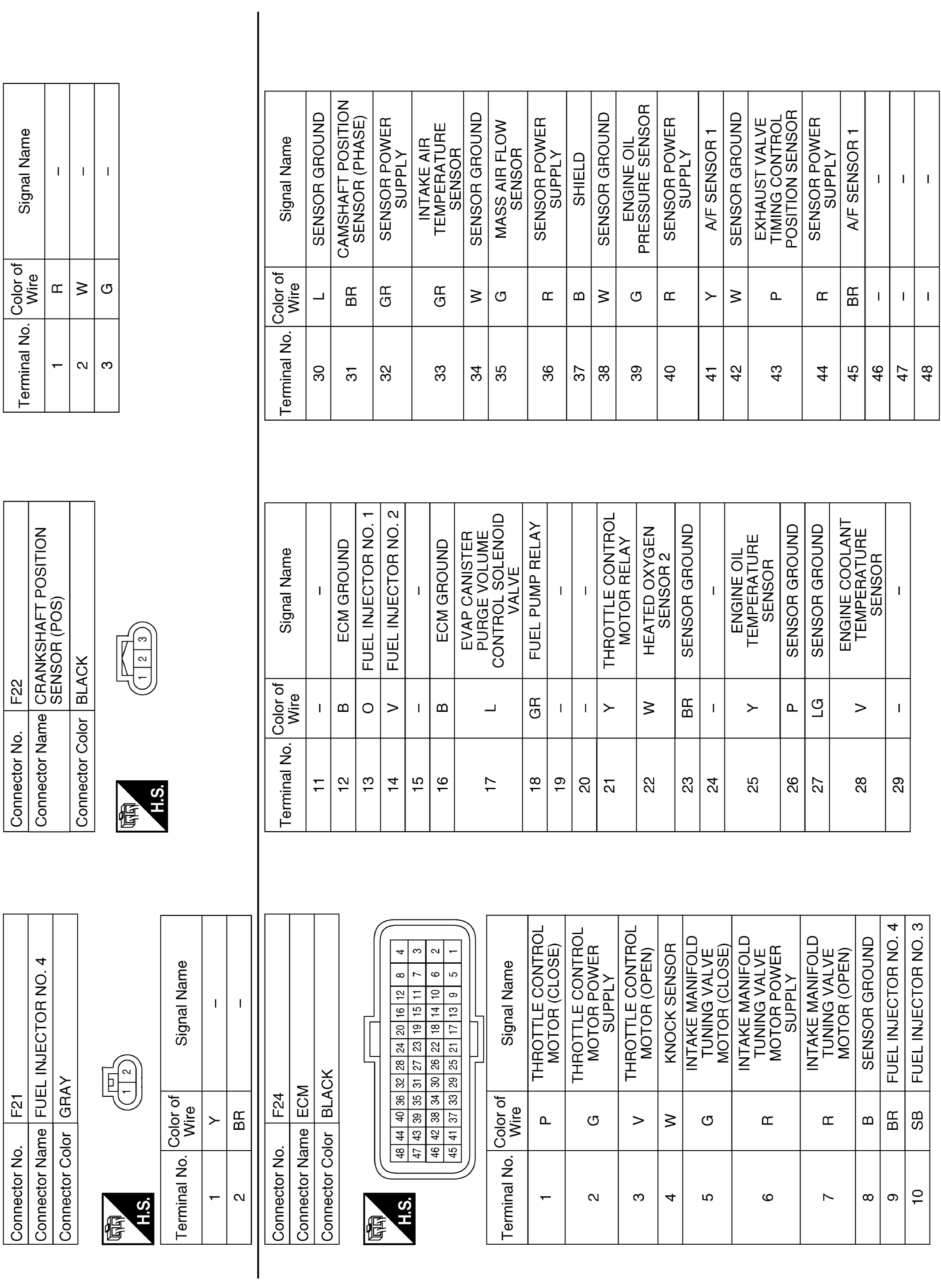

Fig 16: Engine Control System Connectors (10 Of 16)

GNSABBIA3309GB-309

Courtesy of NISSAN NORTH AMERICA, INC.

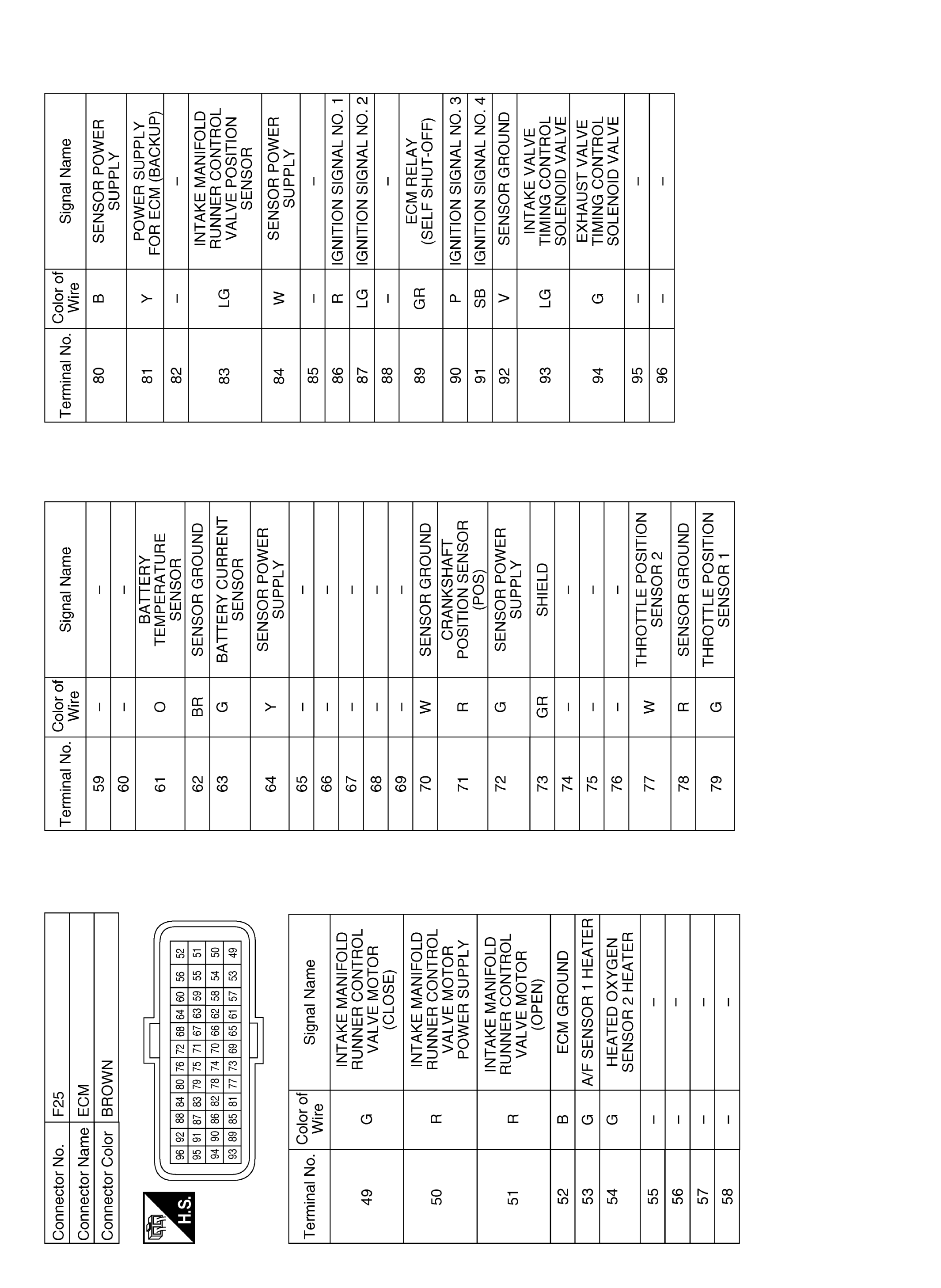

Fig 17: Engine Control System Connectors (11 Of 16)

GNSABBIA3310GB-310

Courtesy of NISSAN NORTH AMERICA, INC.

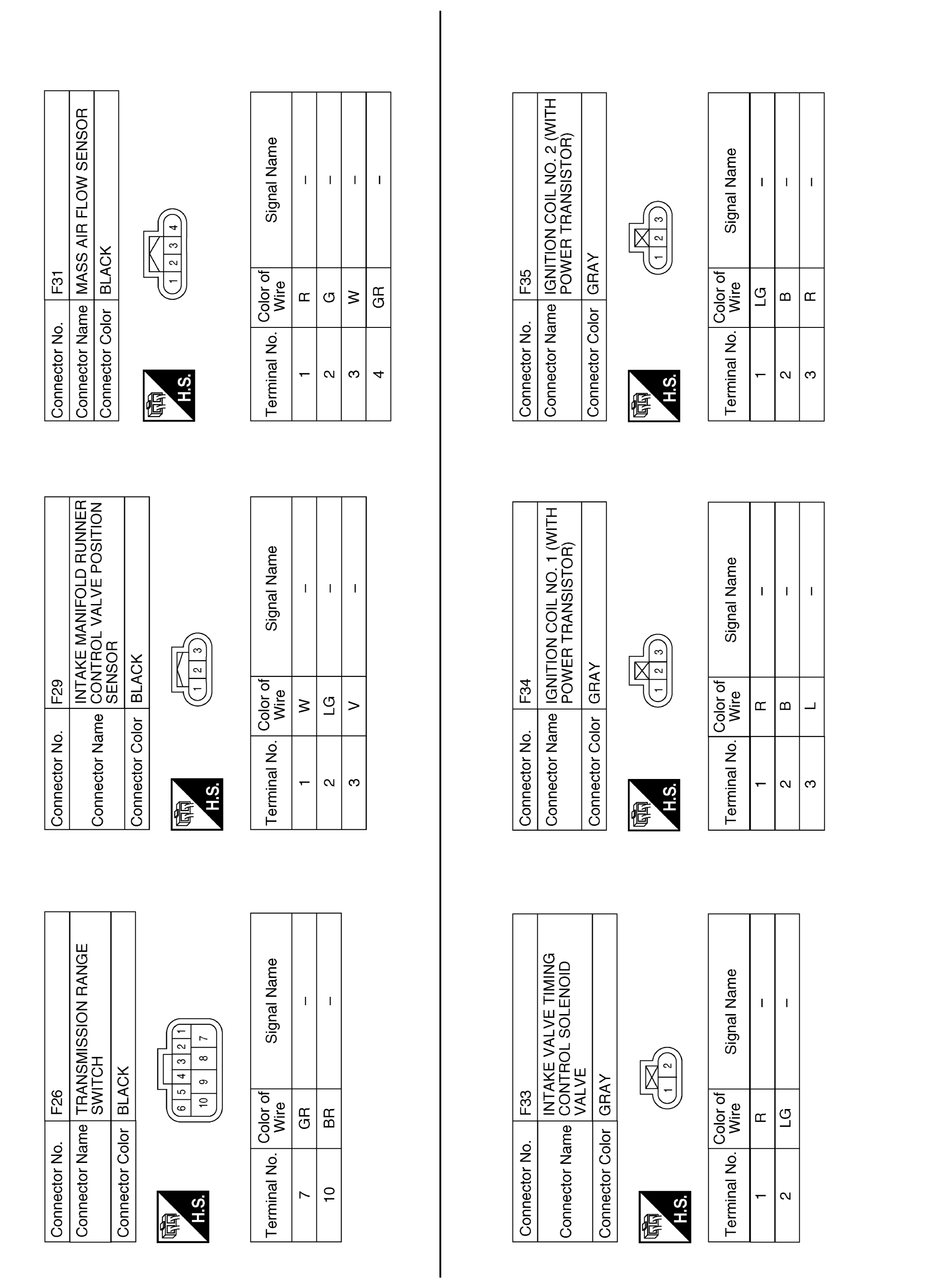

Fig 18: Engine Control System Connectors (12 Of 16)

GNSABBIA3311GB-311

Courtesy of NISSAN NORTH AMERICA, INC.

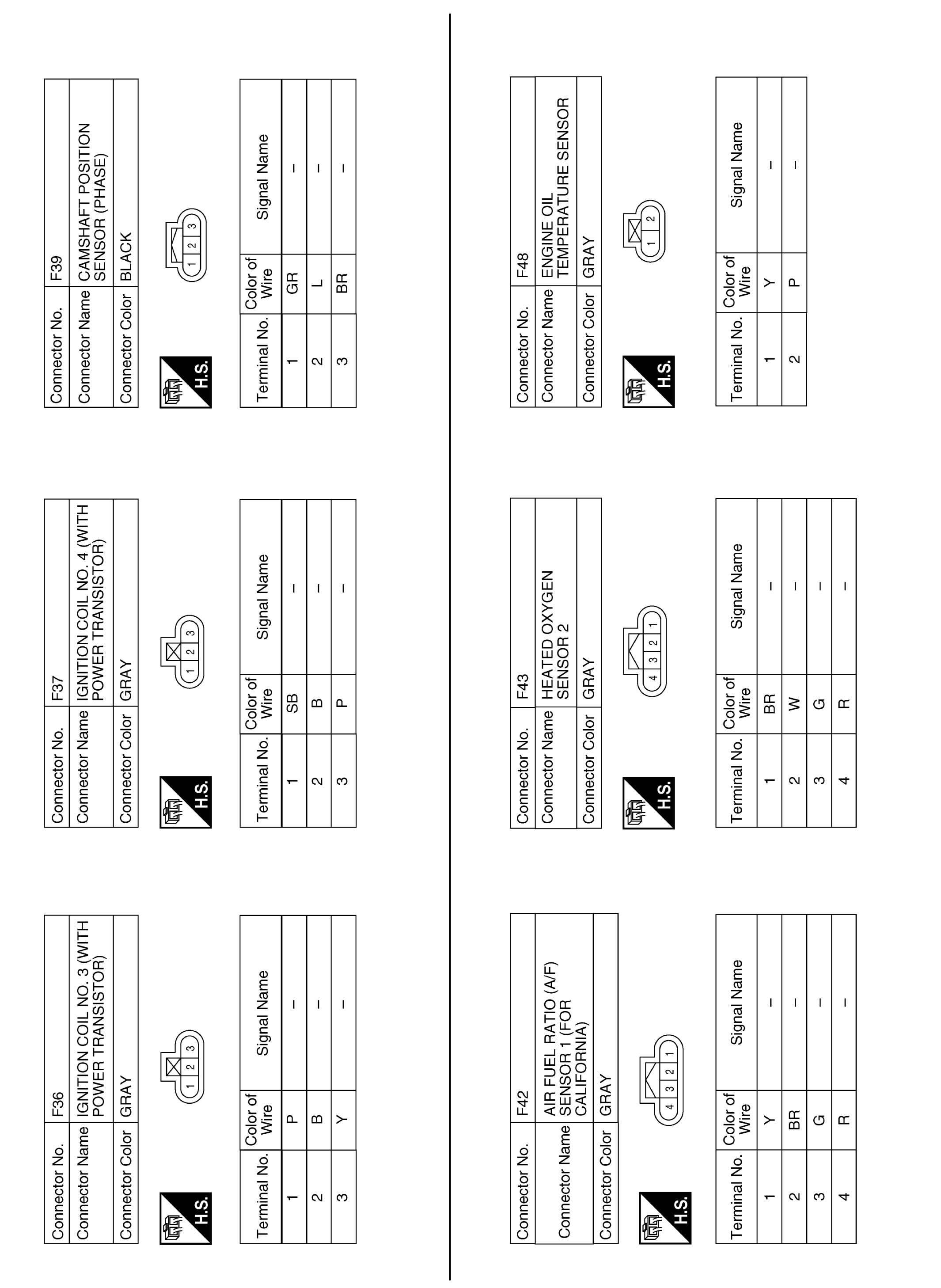

Fig 19: Engine Control System Connectors (13 Of 16)

GNSABBIA3312GB-312

Courtesy of NISSAN NORTH AMERICA, INC.

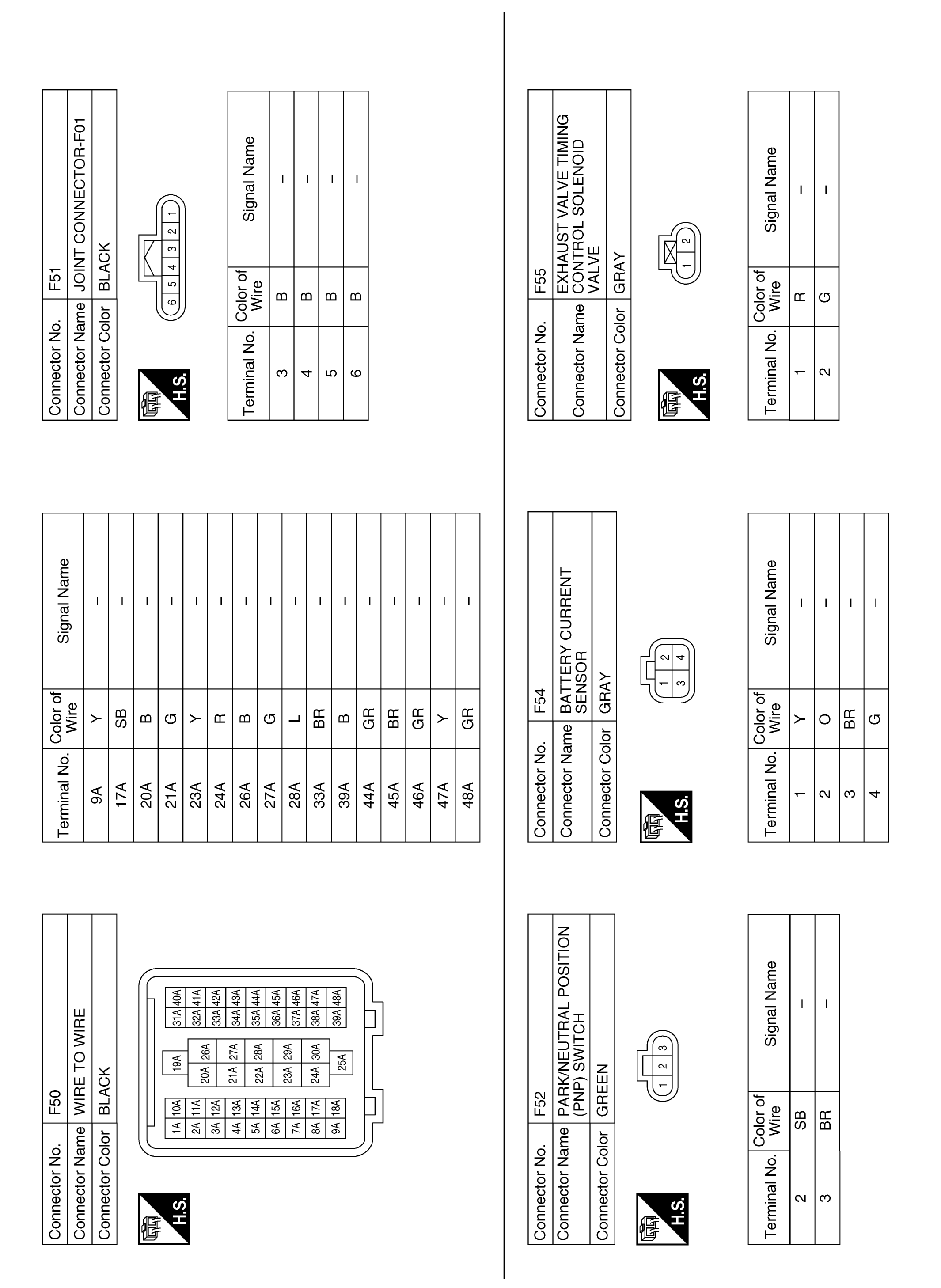

Fig 20: Engine Control System Connectors (14 Of 16)

GNSABBIA3313GB-313

Courtesy of NISSAN NORTH AMERICA, INC.

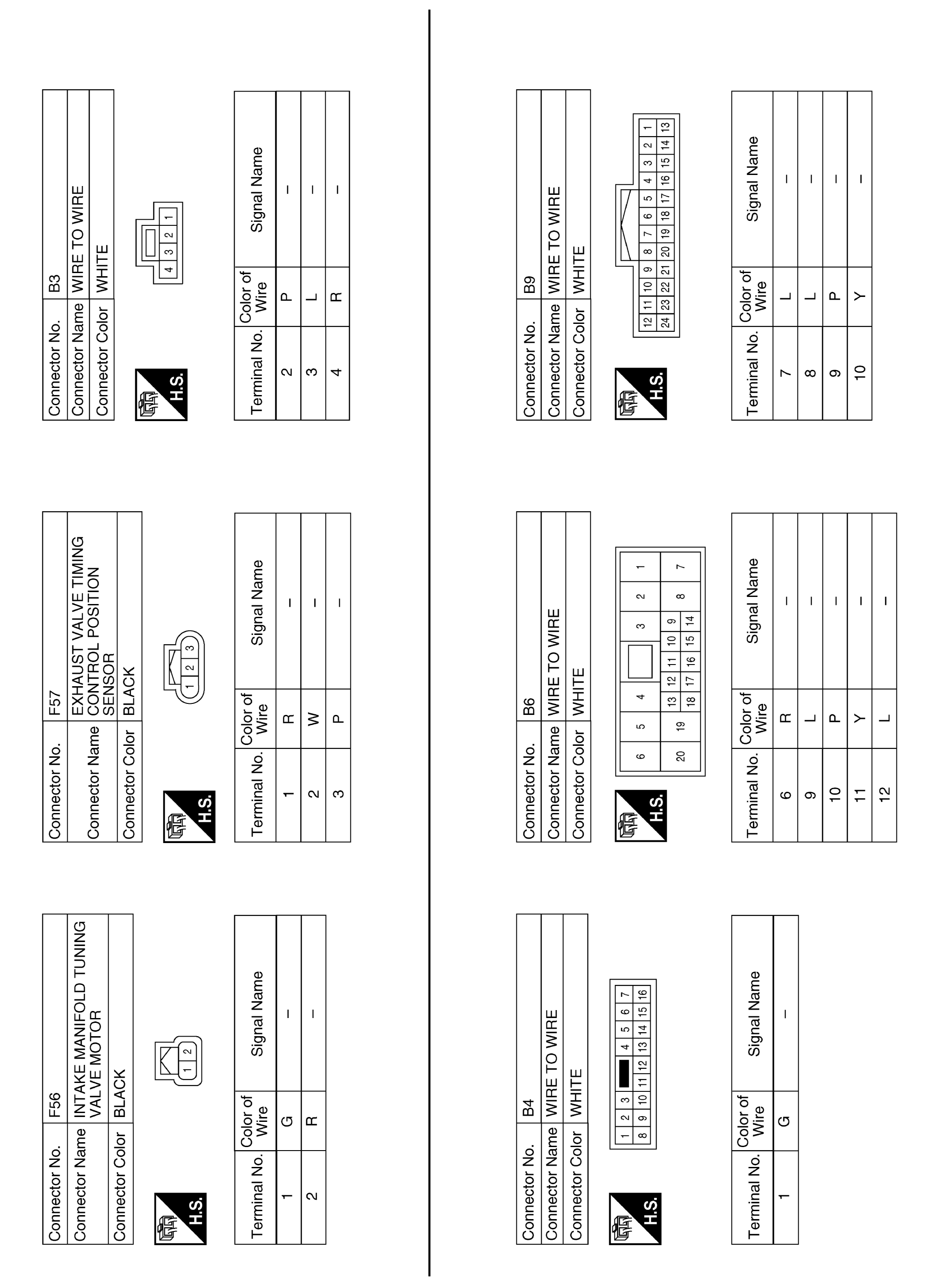

Fig 21: Engine Control System Connectors (15 Of 16)

GNSABBIA3314GB-314

Courtesy of NISSAN NORTH AMERICA, INC.

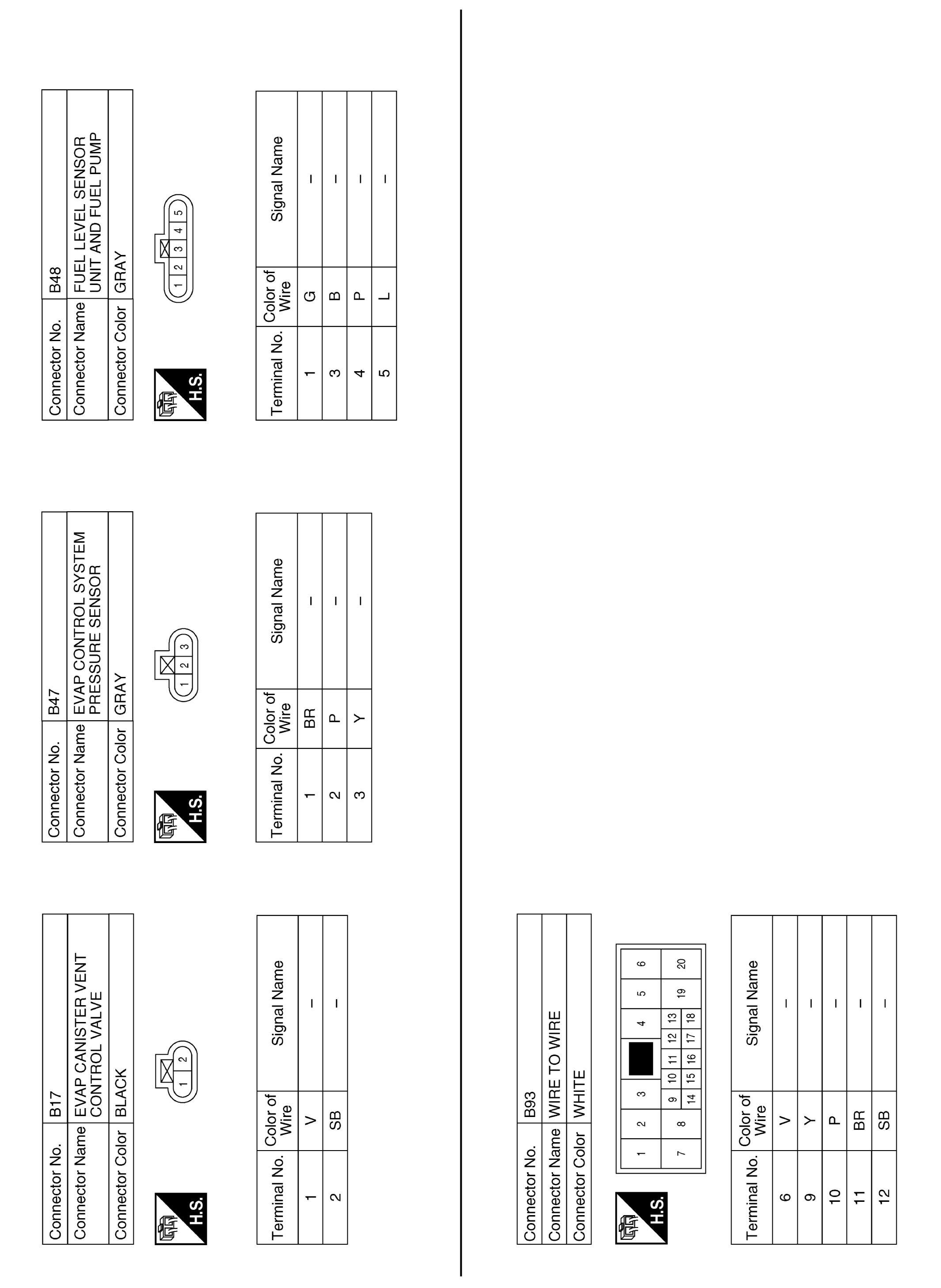

Fig 22: Engine Control System Connectors (16 Of 16)

GNSABBIA3315GB-315

Courtesy of NISSAN NORTH AMERICA, INC.
