Exploded View With Torque Specifications

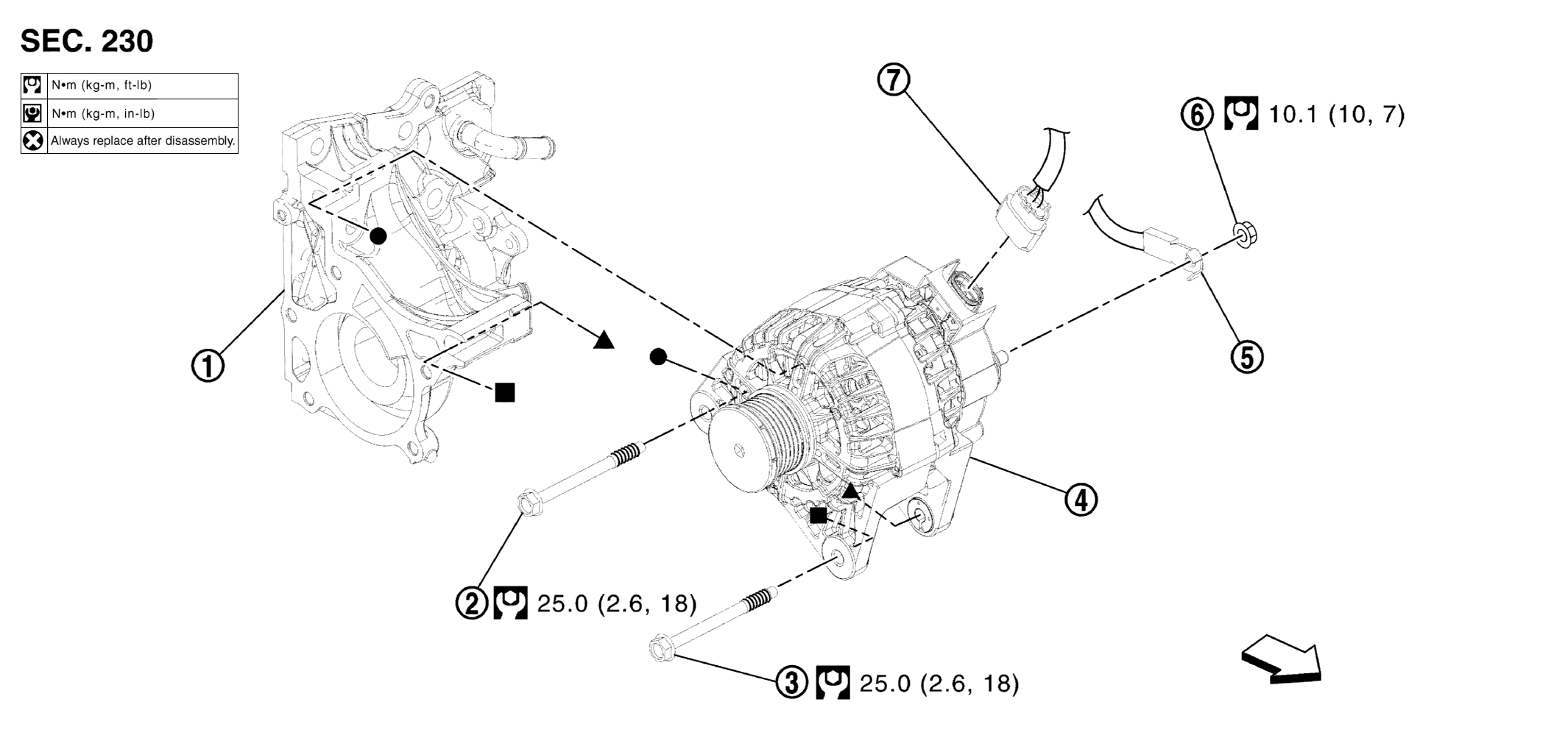

Fig 1: Exploded View Of Generator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Thermostat housing	2.	Generator bolt (upper)	3.	Generator bolt (lower)
4.	Generator	5.	"B" terminal harness	6.	"B" terminal nut
7.	Generator harness connector		Front
