Engine Oil Level

NOTE:

Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop it and allow 10 minutes before checking.

  1. Pull out oil level gauge and wipe it clean.
  2. Insert oil level gauge and check that the engine oil level is within the range (A) shown.

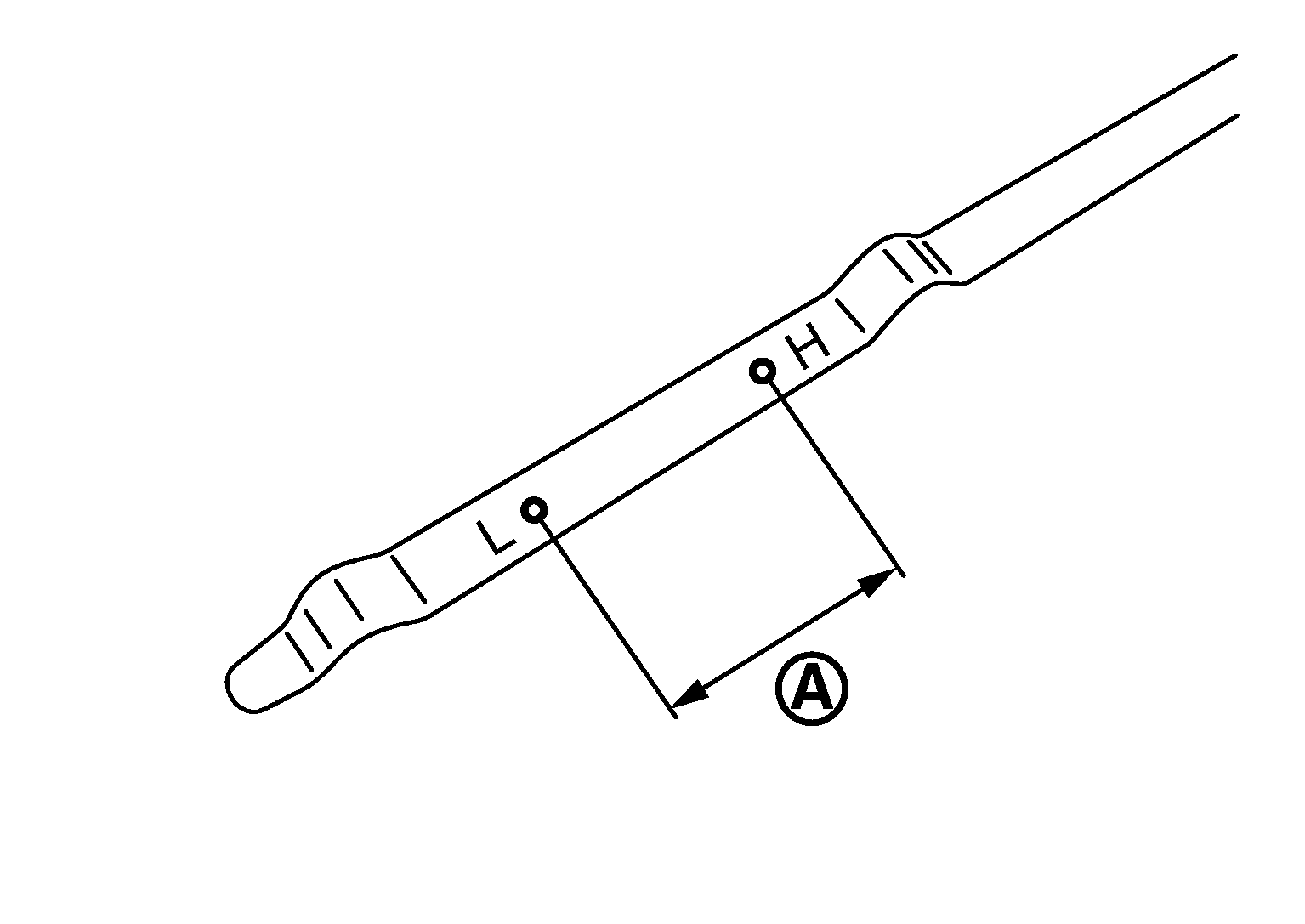

    Fig 1: Engine Oil Level Range
    G05368837Courtesy of NISSAN NORTH AMERICA, INC.
  3. If engine oil is out of range, adjust it.
