Exploded View With Torque Specifications

M/T models

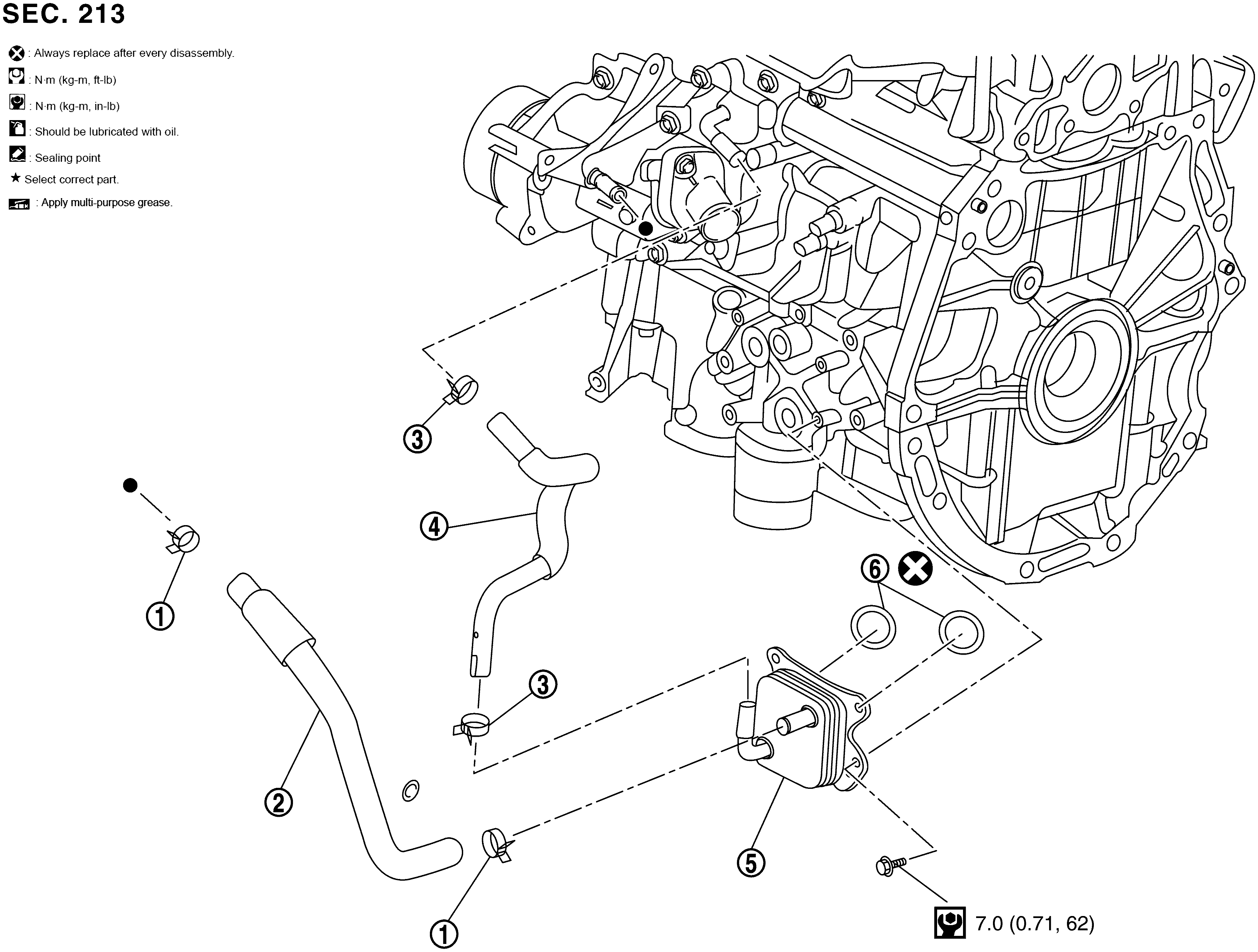

Fig 1: Exploded View Of Oil Cooler With Torque Specifications (1 Of 2)
GNSJSBIA2840ZZ-840Courtesy of NISSAN NORTH AMERICA, INC.
1. Clamp 2. Water hose 3. Clamp
4. Water hose 5. Oil cooler 6. O-rings

CVT models

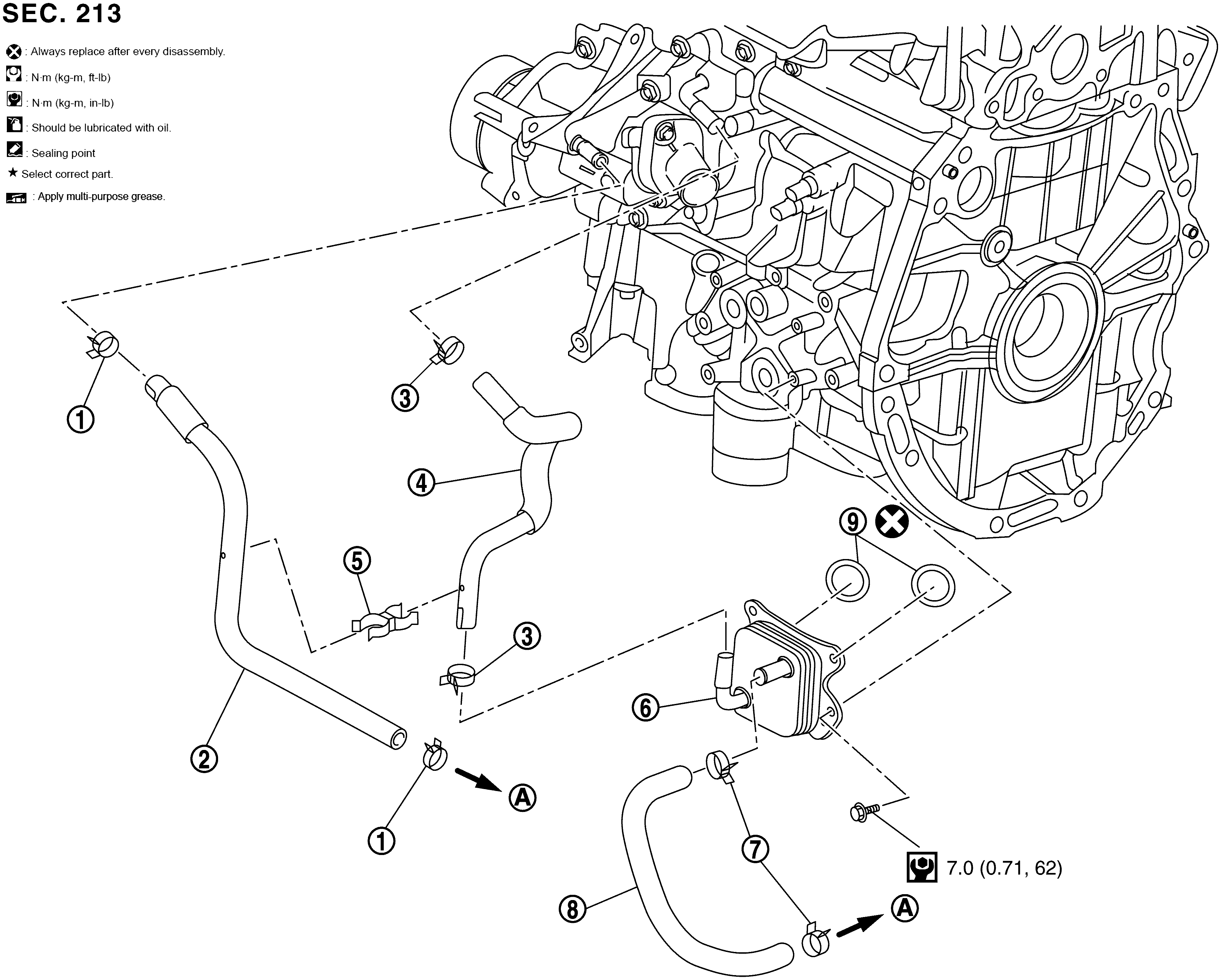

Fig 2: Exploded View Of Oil Cooler With Torque Specifications (2 Of 2)
GNSJSBIA2839ZZ-839Courtesy of NISSAN NORTH AMERICA, INC.
1. Clamp 2. Water hose 3. Clamp
4. Water hose 5. Water hose clip 6. Oil cooler
7. Clamp 8. Water hose 9. O-rings
A. To CVT oil warmer
