Exploded View With Torque Specifications

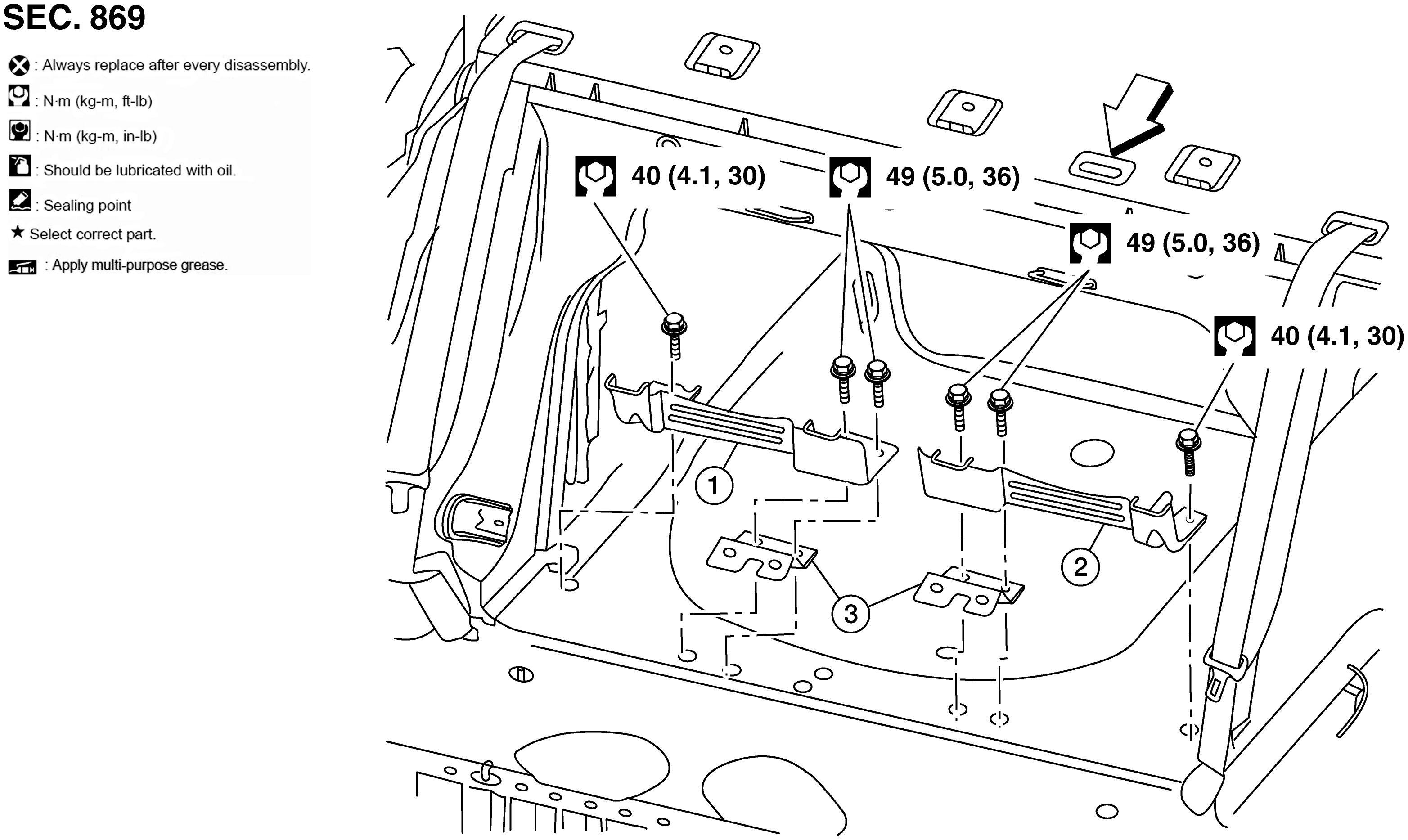

Fig 1: Latch System For Children With Torque Specifications
GNSALHIA0286ZZ-286Courtesy of NISSAN NORTH AMERICA, INC.
1. LATCH bracket (RH) 2. LATCH bracket (LH) 3. Seat belt buckle anchor bracket
ARROW Front
