Exploded View With Torque Specifications

Type 1

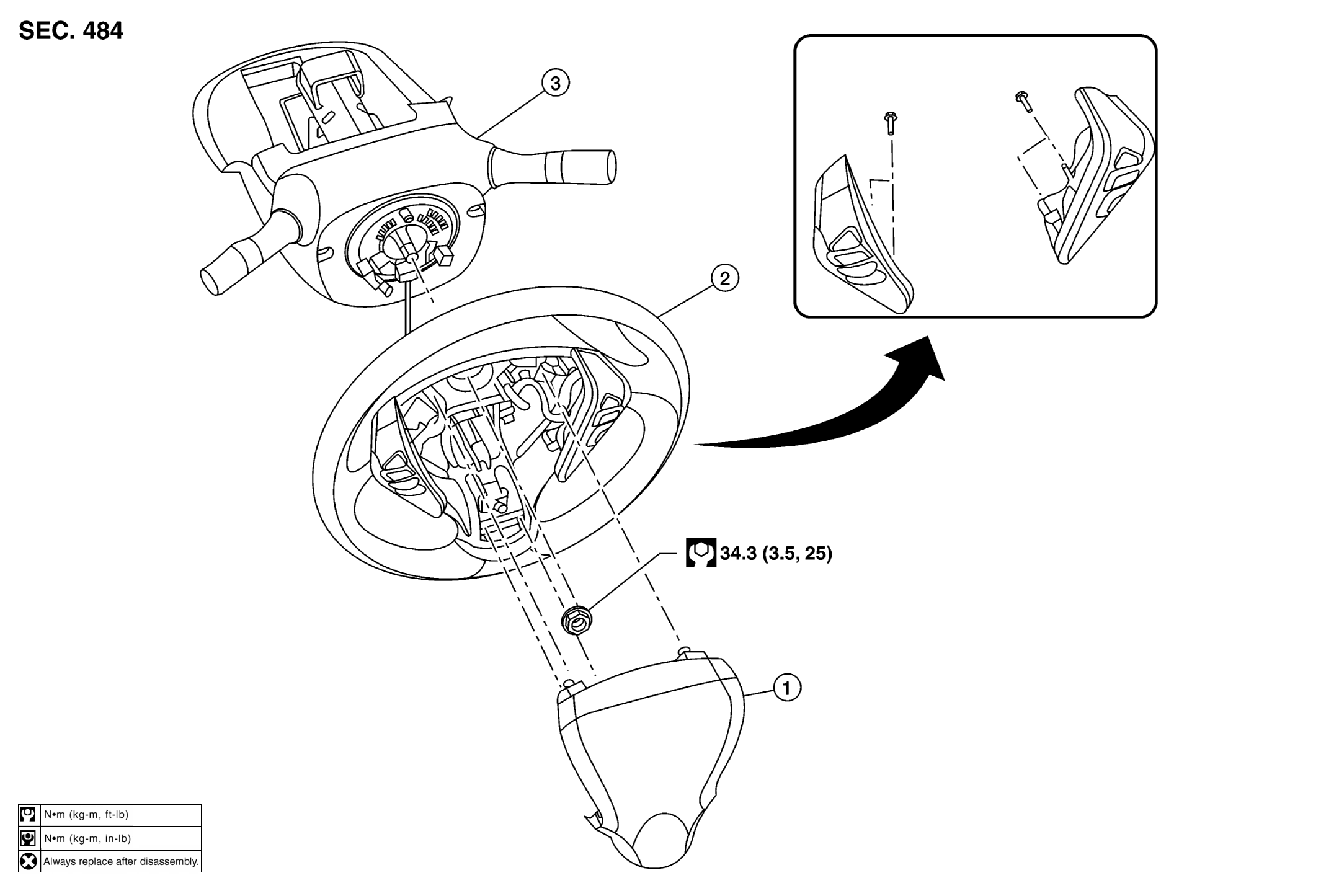

Fig 1: Exploded View Of Steering Wheel With Torque Specifications (1 Of 2)
GNSAWGIA0344ZZ-344Courtesy of NISSAN NORTH AMERICA, INC.
1. Driver air bag module 2. Steering wheel 3. Steering column assembly

Type 2

Fig 2: Exploded View Of Steering Wheel With Torque Specifications (2 Of 2)
GNSAWGIA0431ZZ-431Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Steering wheel 3. Side lid (LH/RH)
4. Steering switches 5. Driver air bag module
