Exploded View With Torque Specifications

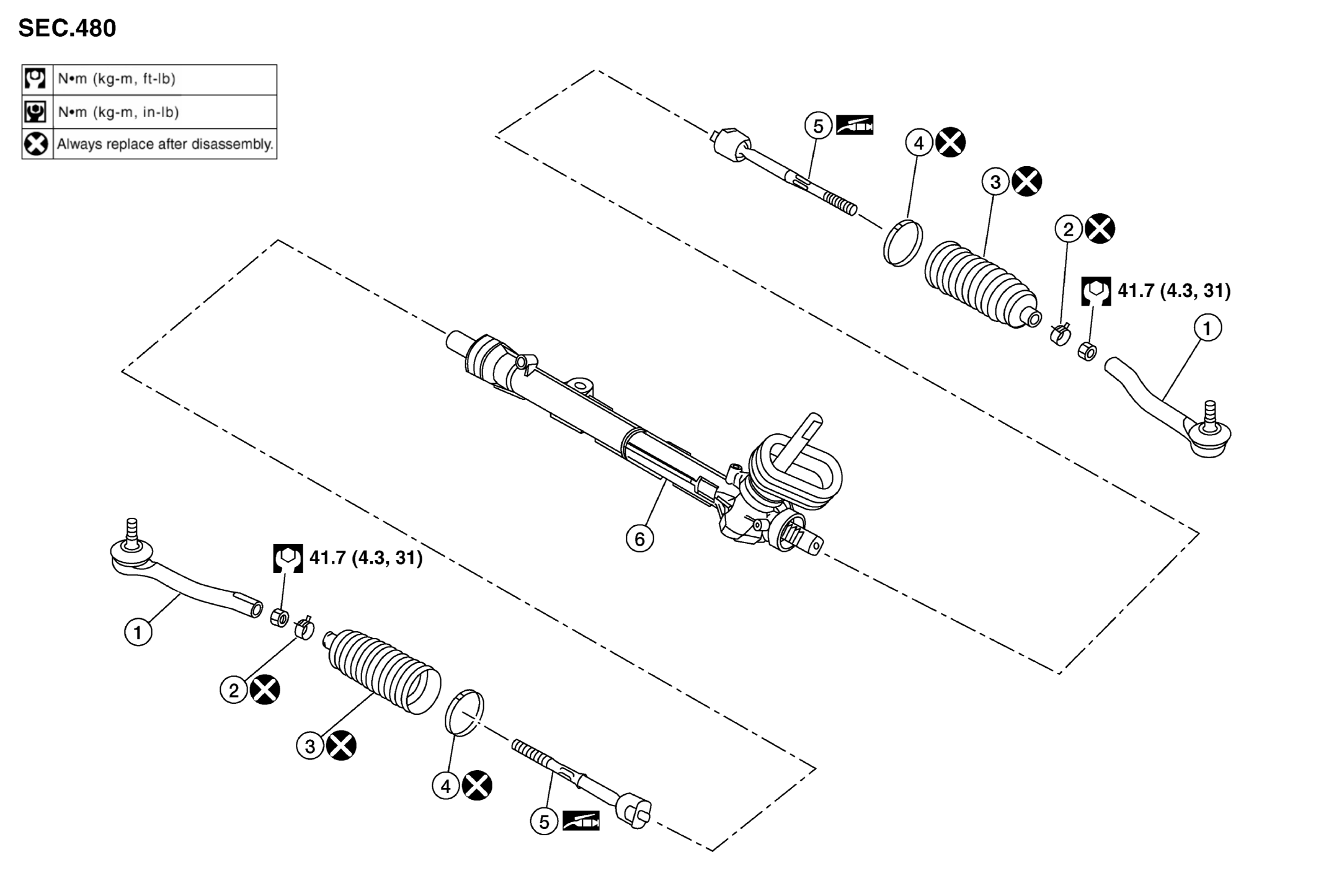

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSAWGIA0317ZZ-317Courtesy of NISSAN NORTH AMERICA, INC.
1. Outer socket 2. Boot clamp (small diameter) 3. Boot
4. Boot clamp (large diameter) 5. Inner socket 6. Gear housing assembly
