Component Parts Location

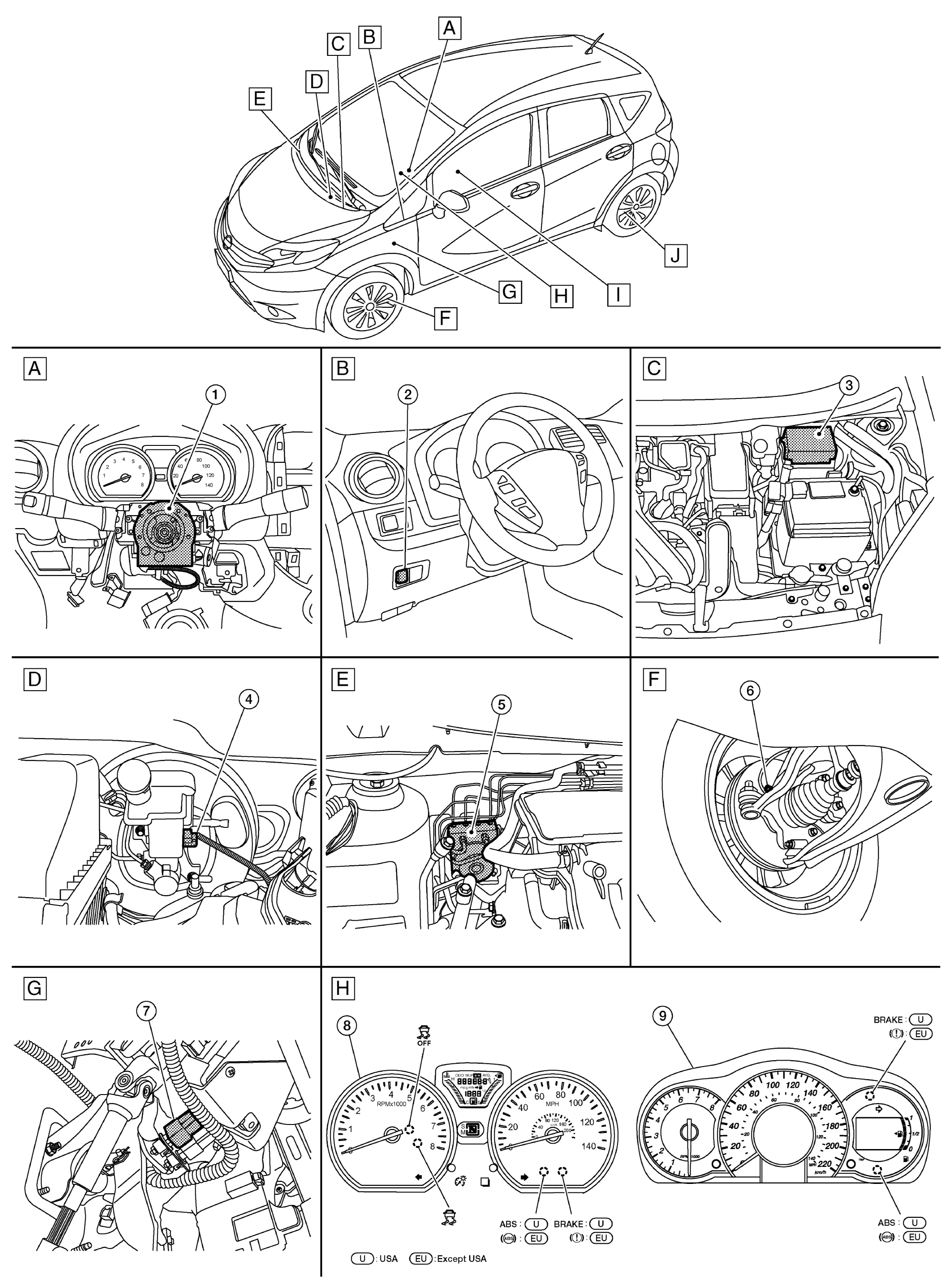

Fig 1: Brake Control System Components Location (1 Of 2)
GNSAWFIA1210ZZ-210Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Brake Control System Components Location (2 Of 2)
GNSALFIA0482ZZ-482Courtesy of NISSAN NORTH AMERICA, INC.
A. View with steering wheel and spiral cable removed B. Left side of instrument panel C. Left side of engine compartment
D. Left side of engine compartment E. Right side of engine compartment F. Left front wheel assembly
G. Near brake pedal area H. Left side of instrument panel I. Center of front seats (view with center console removed)
J. Left rear wheel assembly
