Brake Control System: Wiring Diagram

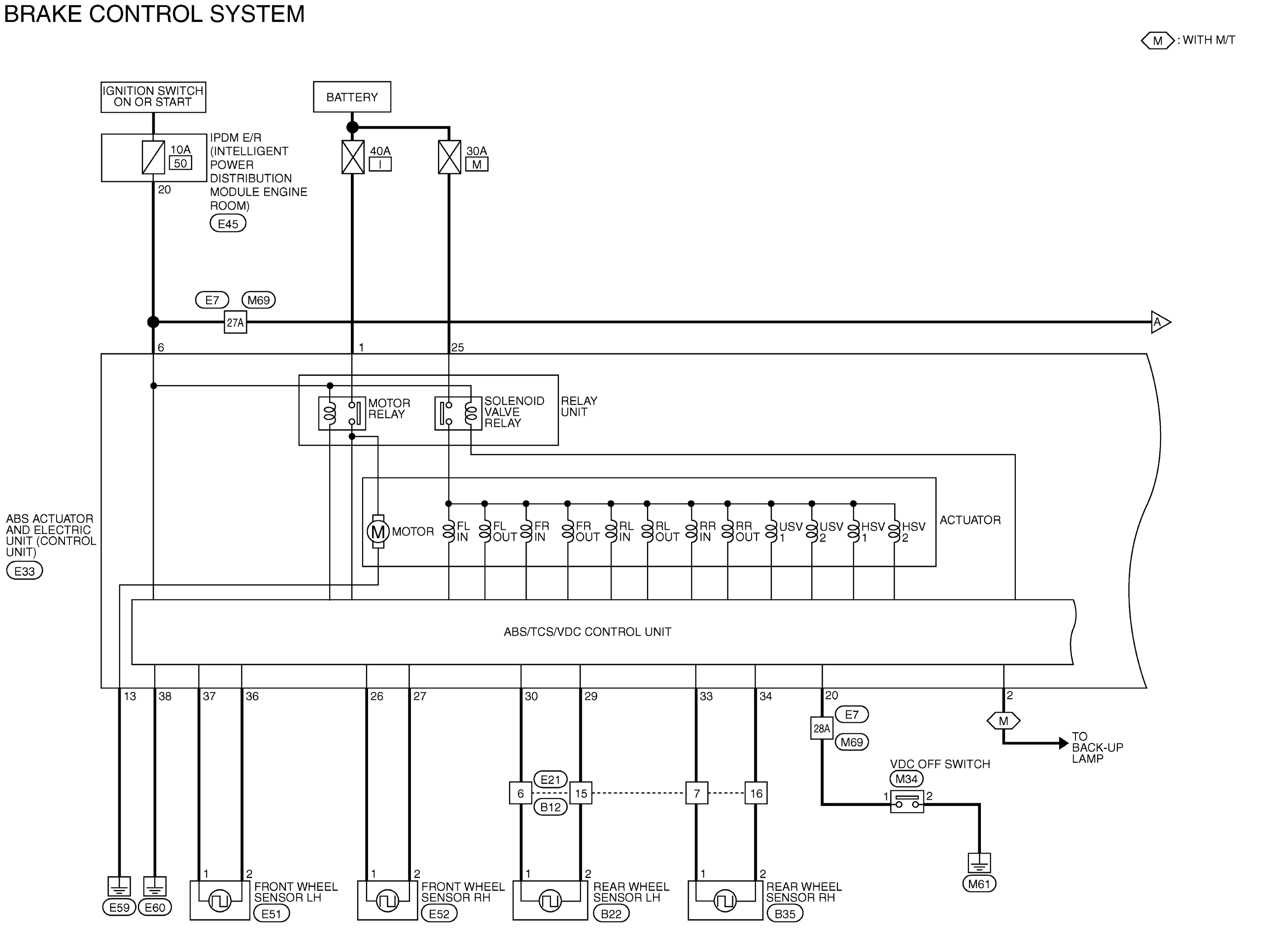

Fig 1: Brake Control System Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

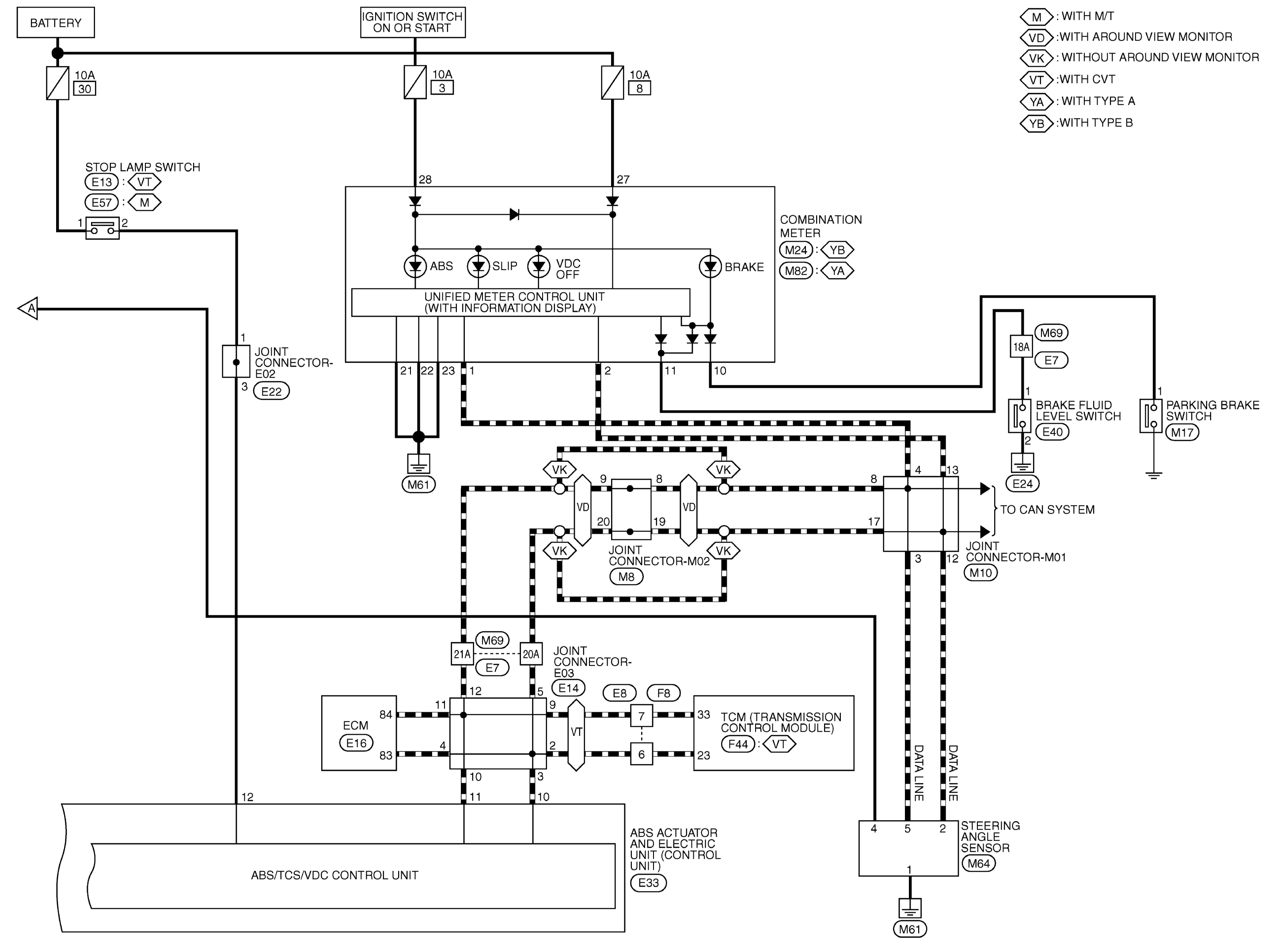

Fig 2: Brake Control System Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

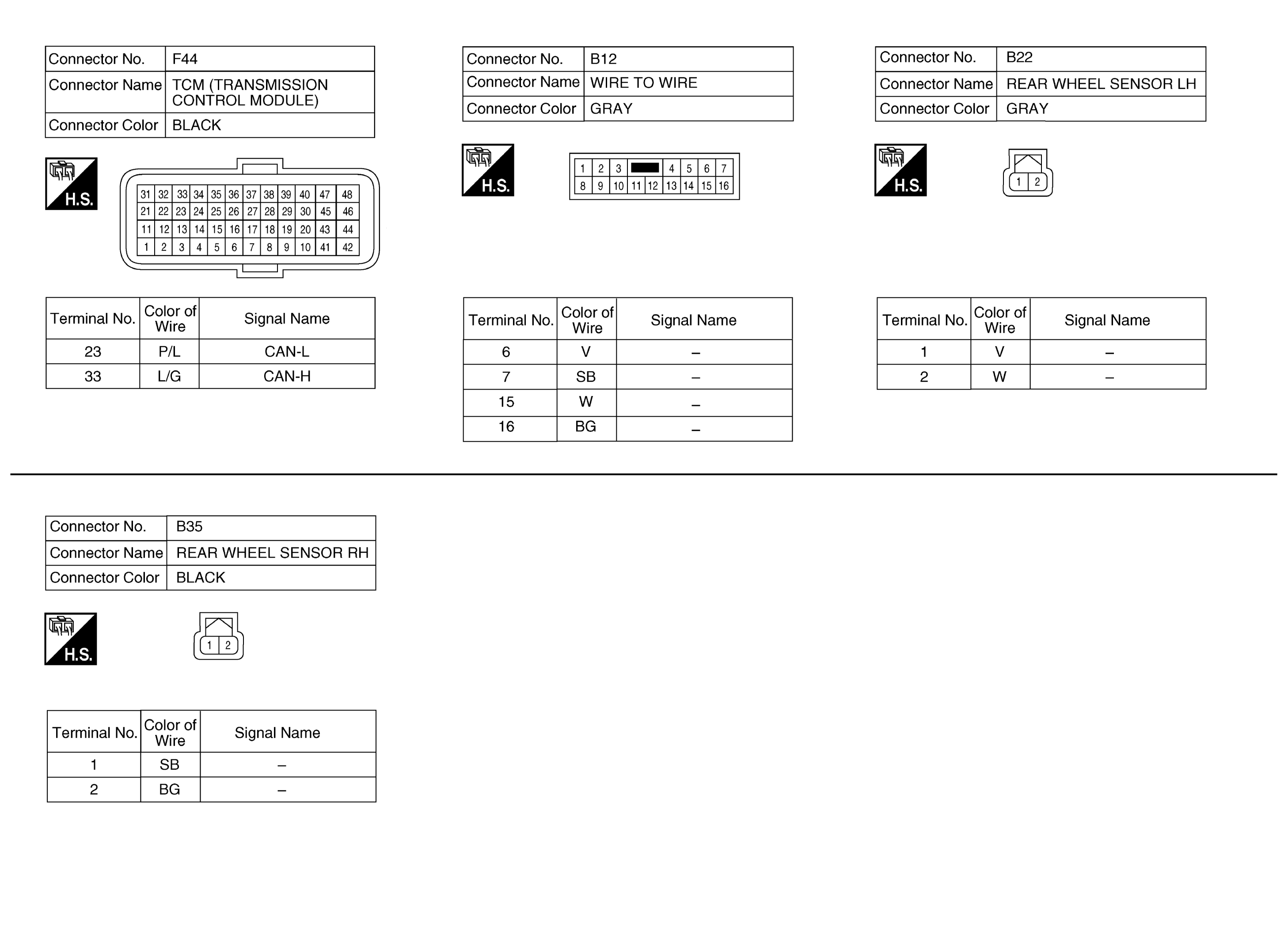

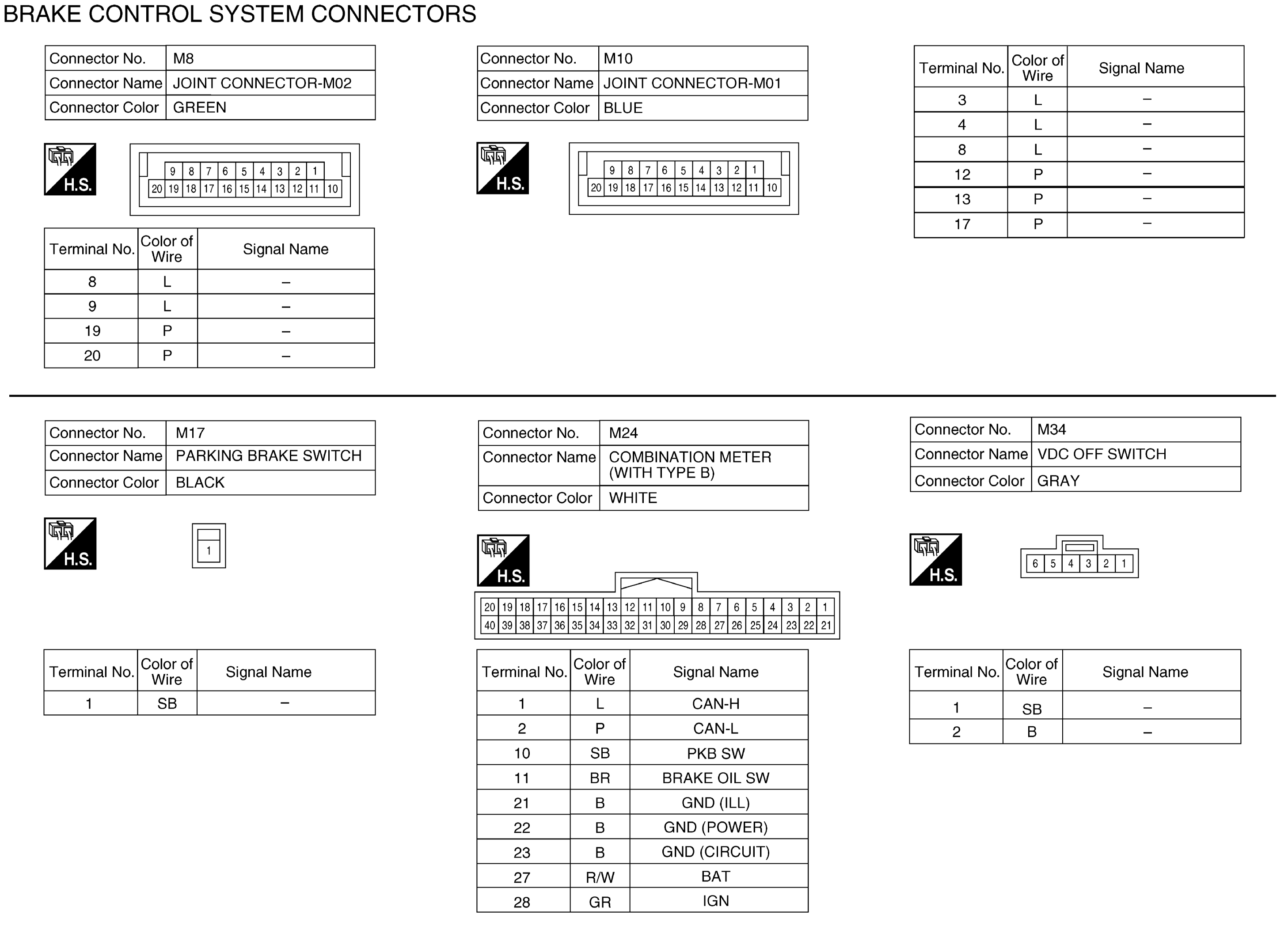

Fig 3: Brake Control System Connectors (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

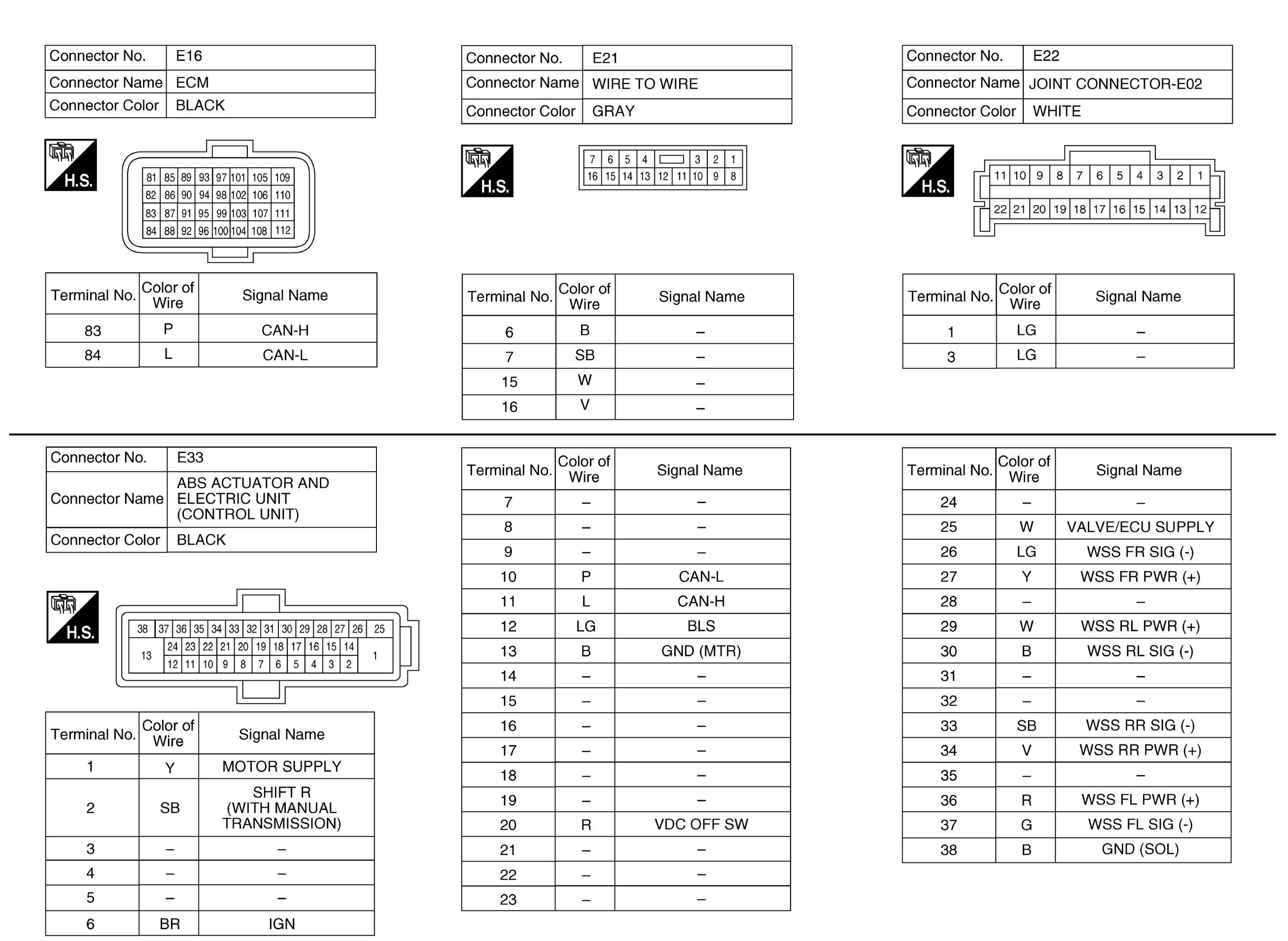

Fig 4: Brake Control System Connectors (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

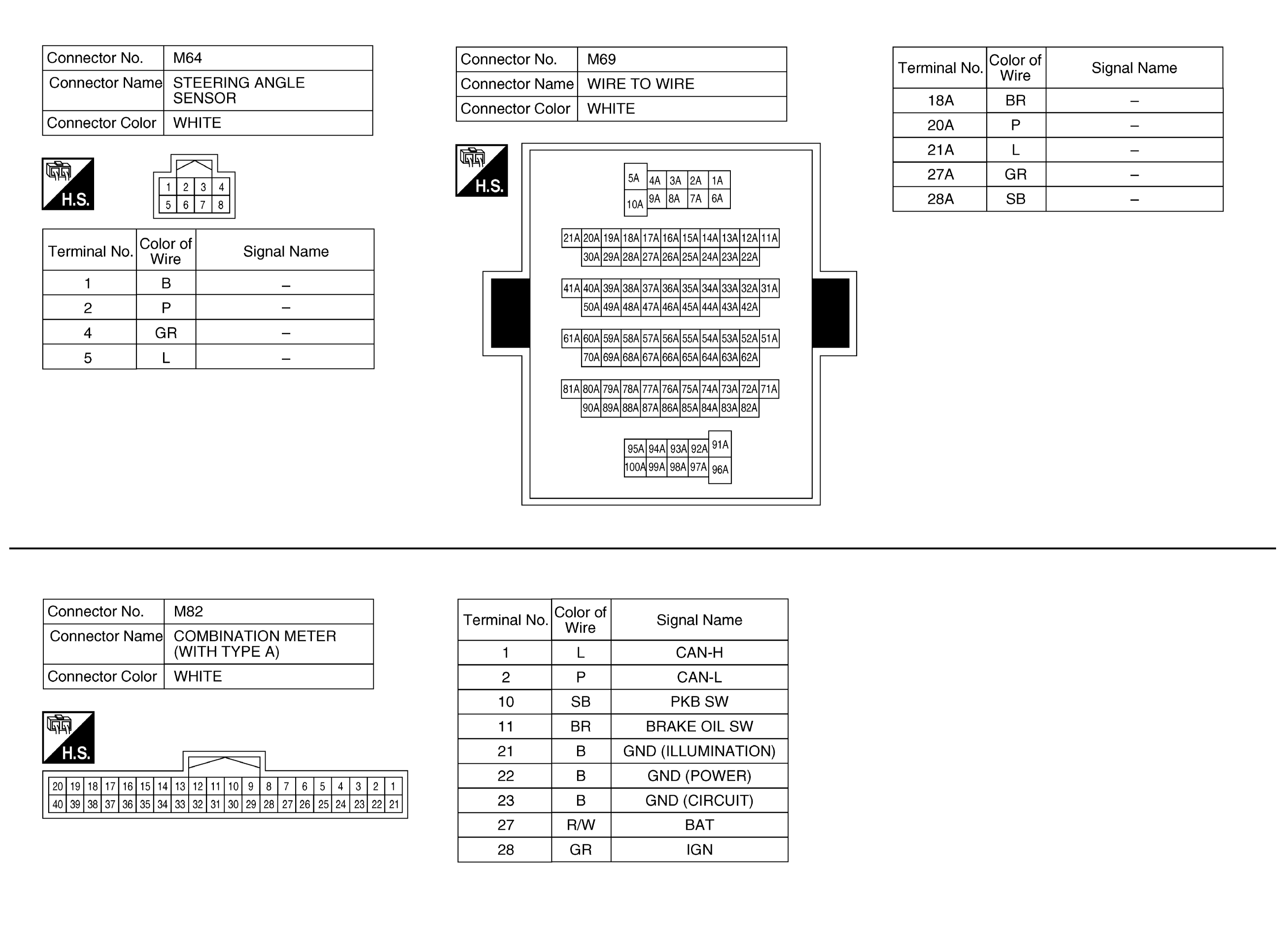

Fig 5: Brake Control System Connectors (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

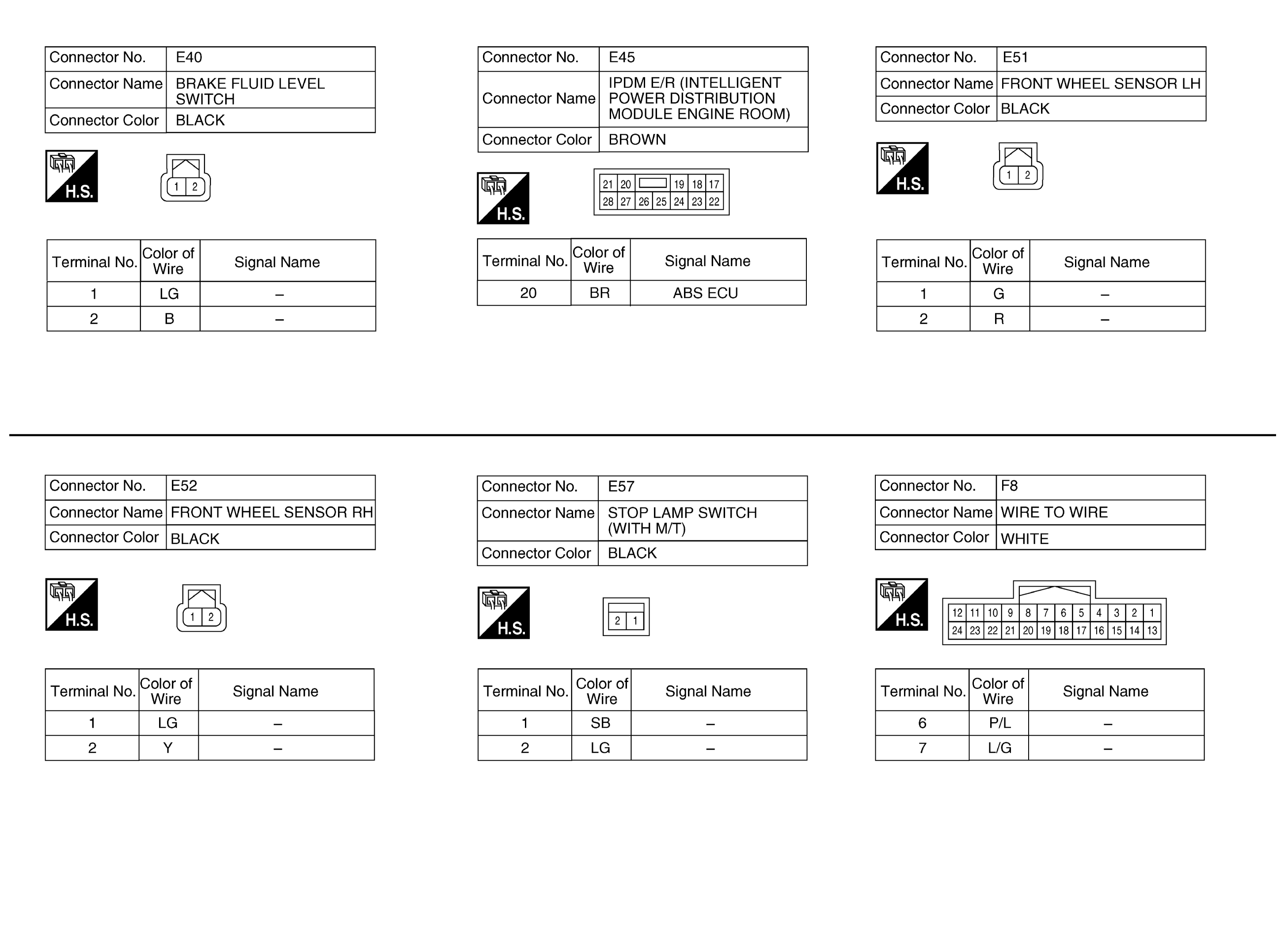

Fig 6: Brake Control System Connectors (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

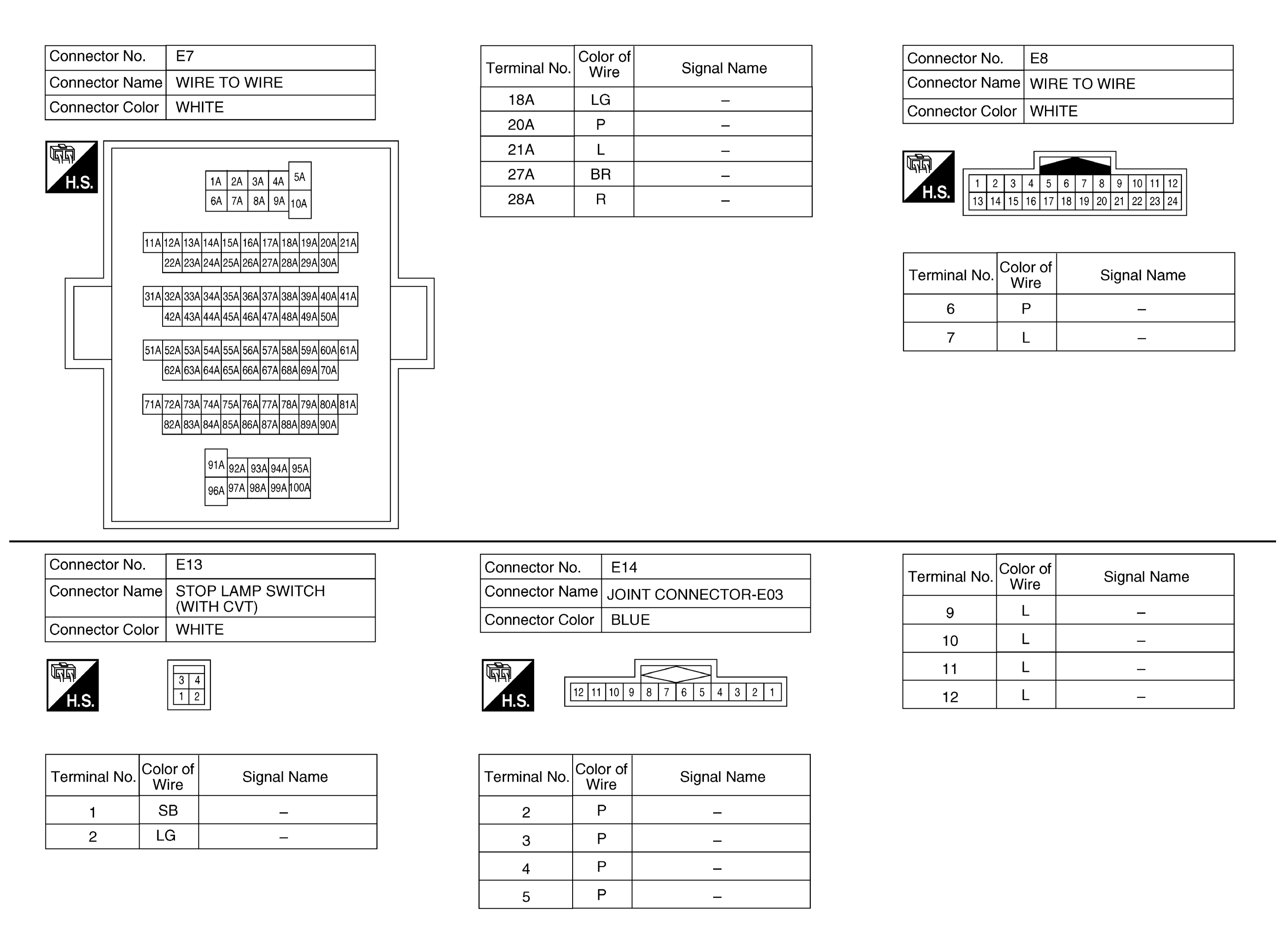

Fig 7: Brake Control System Connectors (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Brake Control System Connectors (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
