Exploded View With Torque Specifications

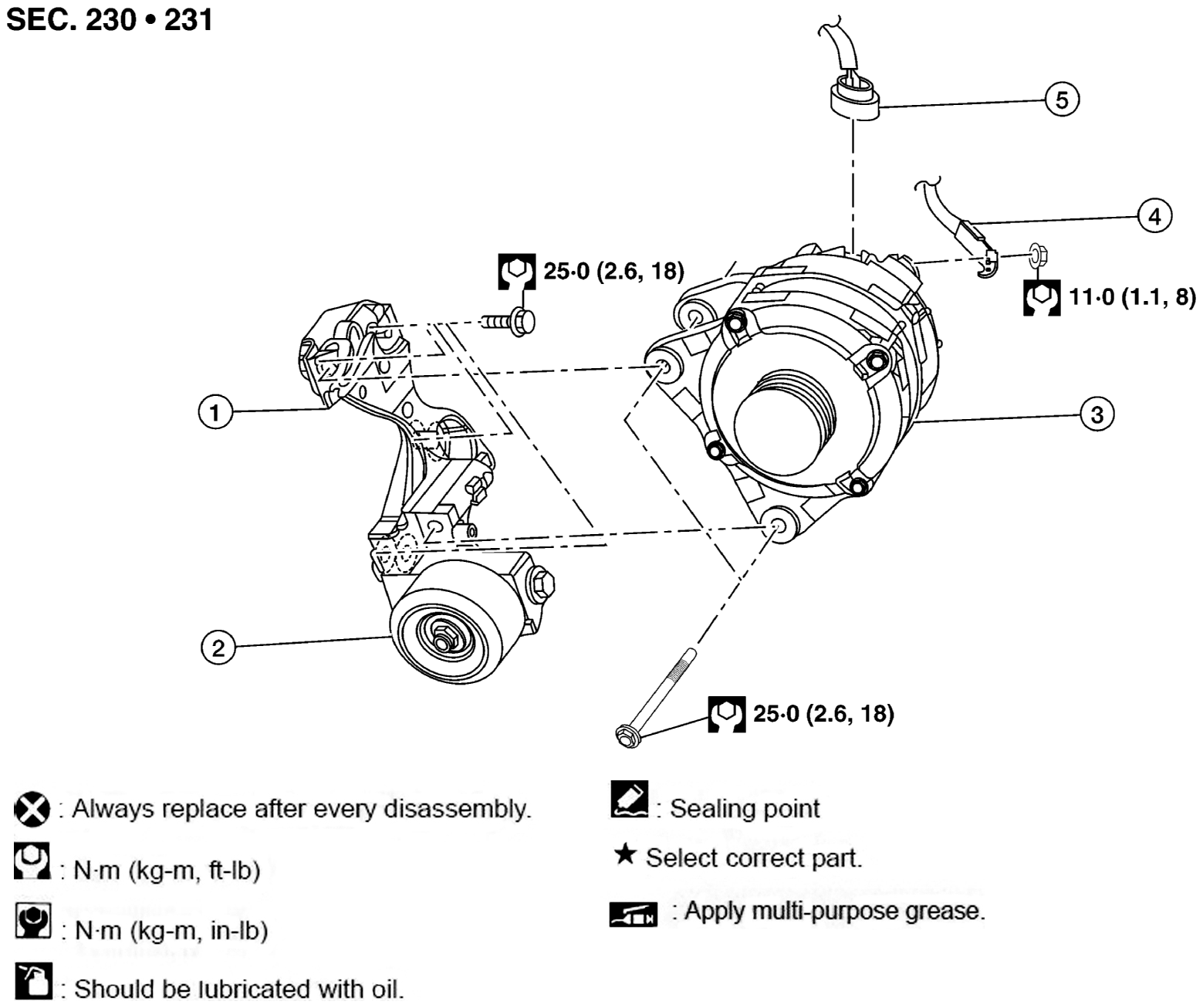

Fig 1: Exploded View Of Generator With Torque Specifications
GNSAWGIA0293ZZ-293Courtesy of NISSAN NORTH AMERICA, INC.
1. Generator bracket 2. Tensioner Idler pulley 3. Generator
4. "B" terminal harness 5. Generator harness connector
