Exploded View With Torque Specifications

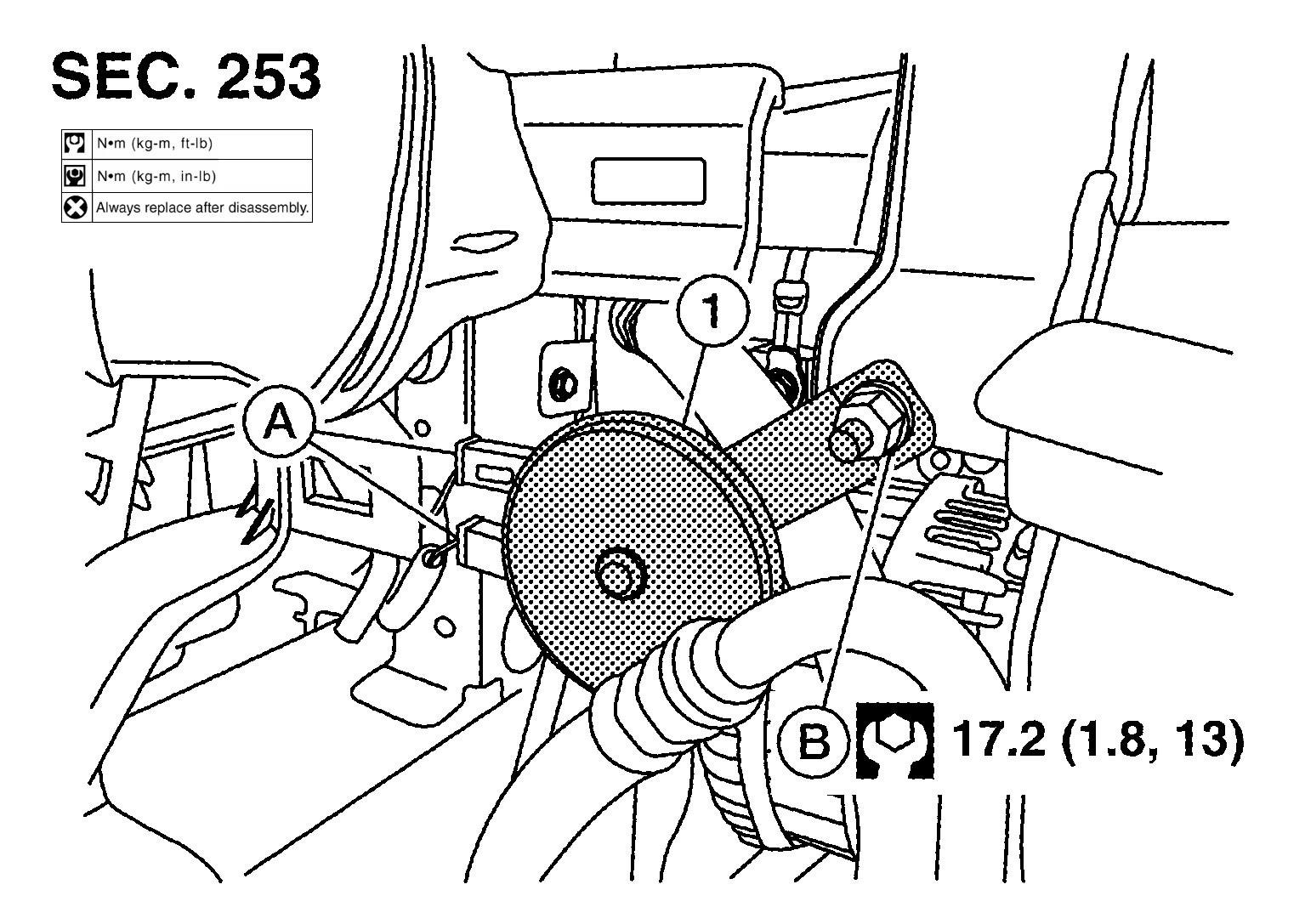

Fig 1: Horn With Torque Specifications
GNSAWLIA2176ZZ-176Courtesy of NISSAN NORTH AMERICA, INC.
1. Horn A. Connector B. Nut
