Engine Control System: Wiring Diagram

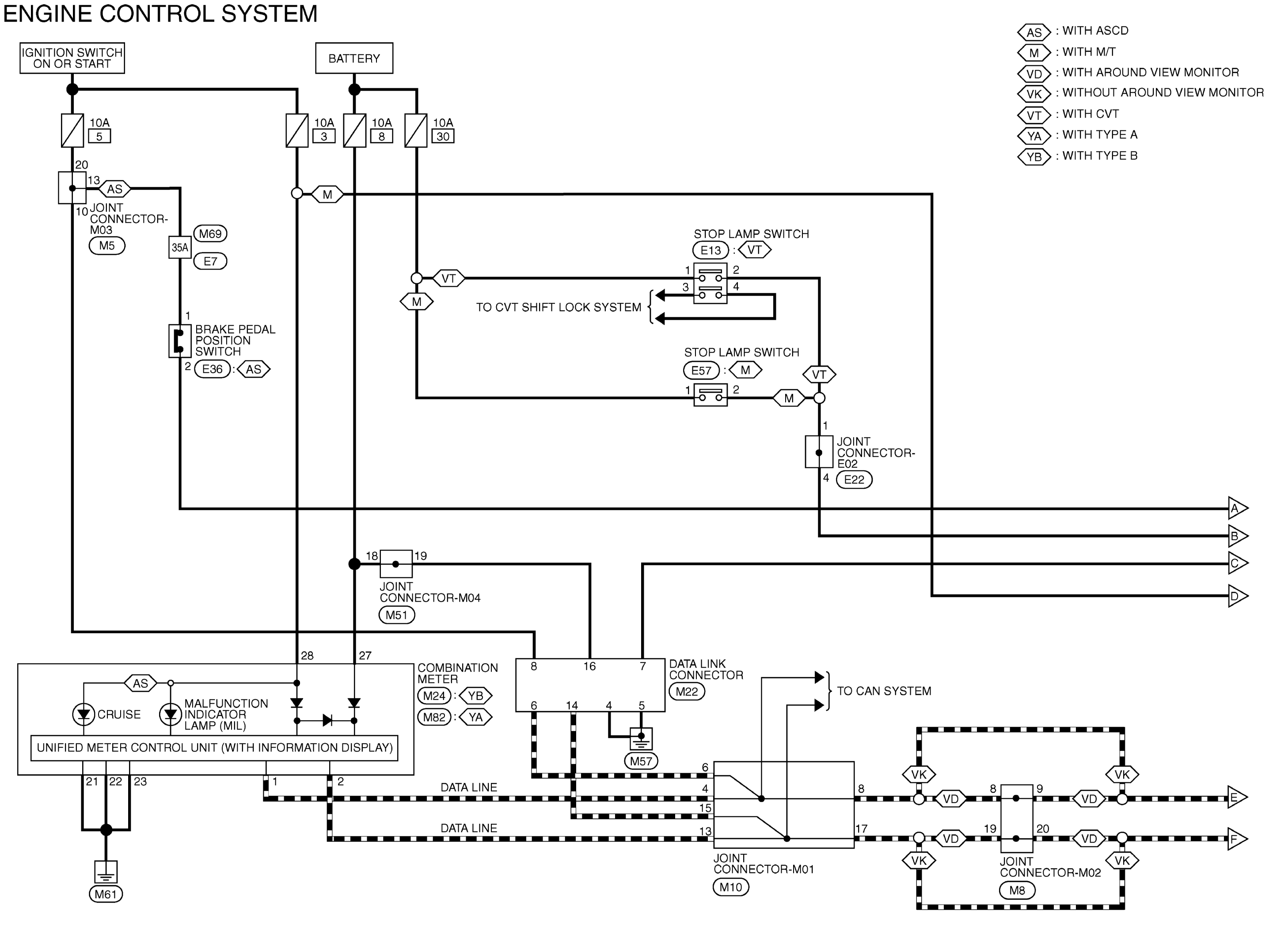

Fig 1: Engine Control System Wiring Diagram (1 Of 6)

GNSABBWA1627GB-627

Courtesy of NISSAN NORTH AMERICA, INC.

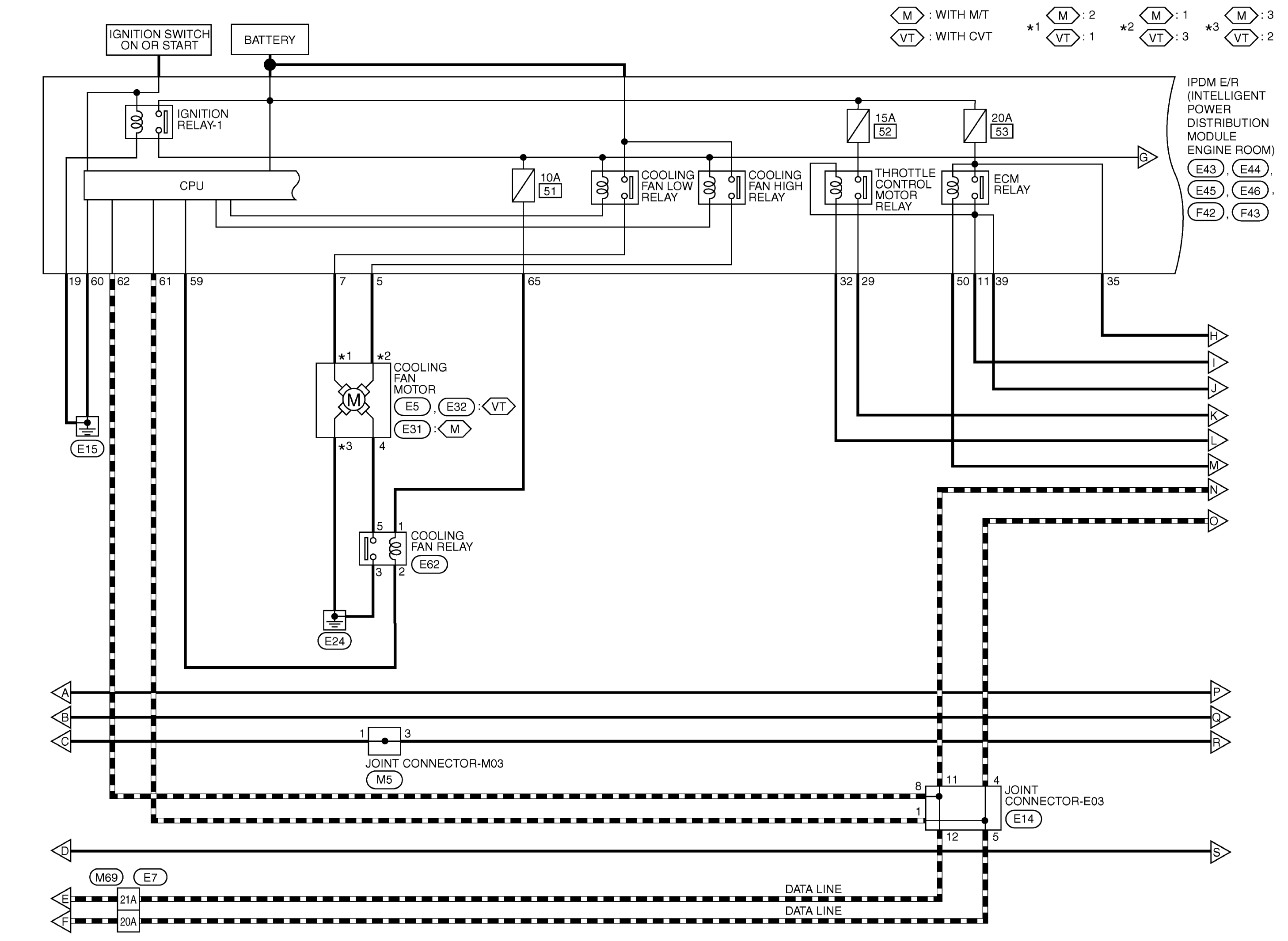

Fig 2: Engine Control System Wiring Diagram (2 Of 6)

GNSABBWA1628GB-628

Courtesy of NISSAN NORTH AMERICA, INC.

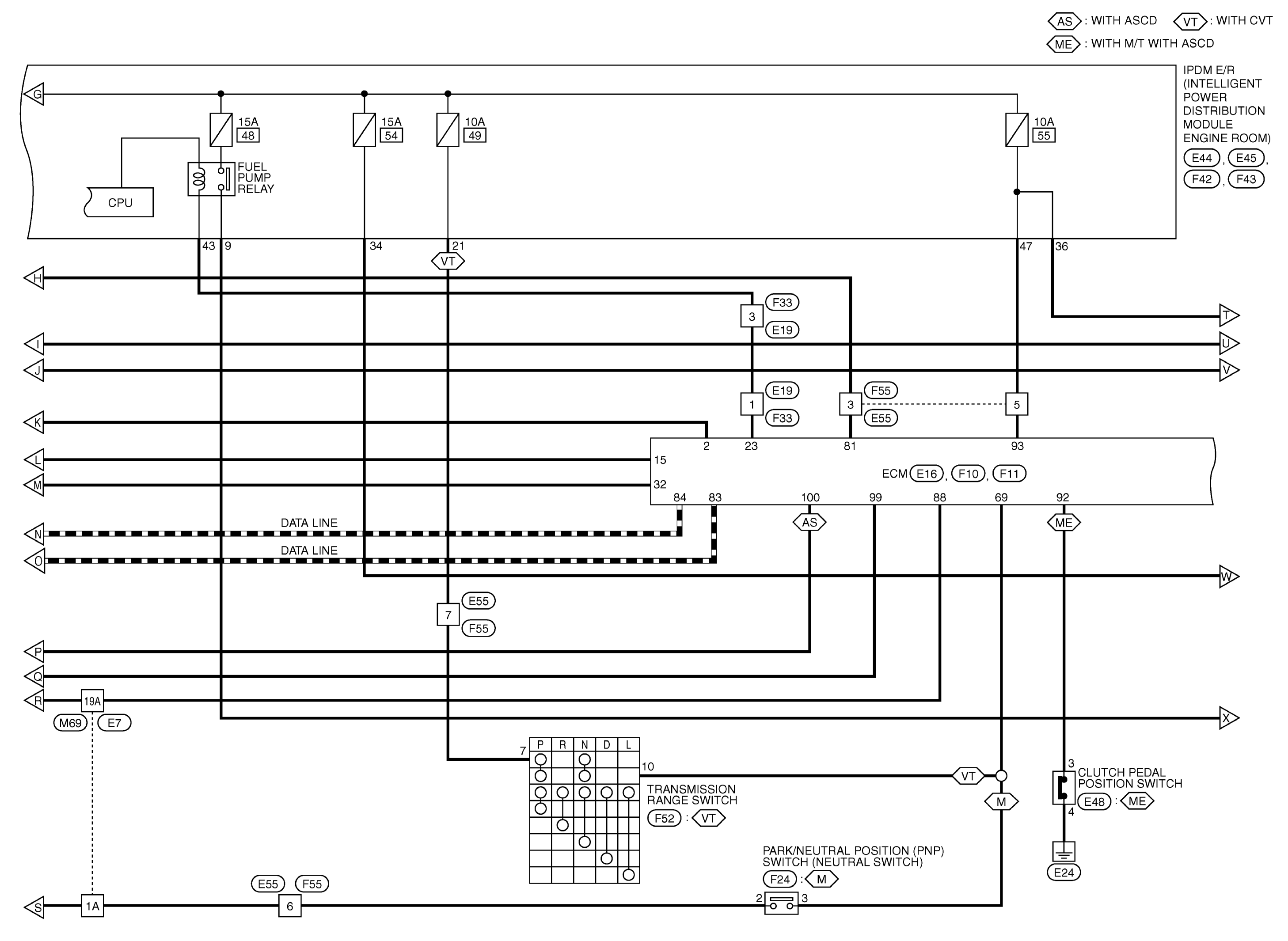

Fig 3: Engine Control System Wiring Diagram (3 Of 6)

GNSABBWA1564GB-564

Courtesy of NISSAN NORTH AMERICA, INC.

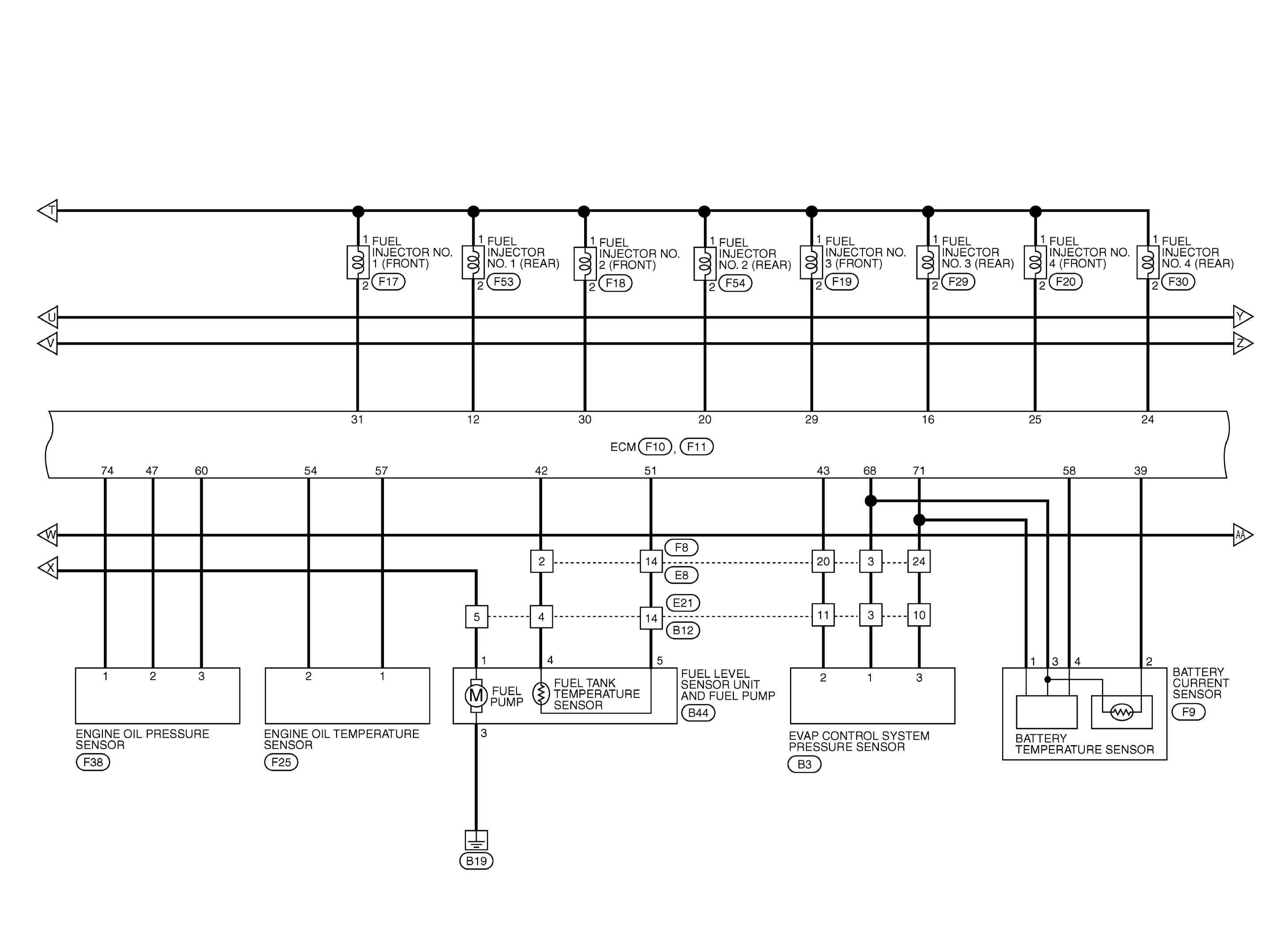

Fig 4: Engine Control System Wiring Diagram (4 Of 6)

GNSABBWA1629GB-629

Courtesy of NISSAN NORTH AMERICA, INC.

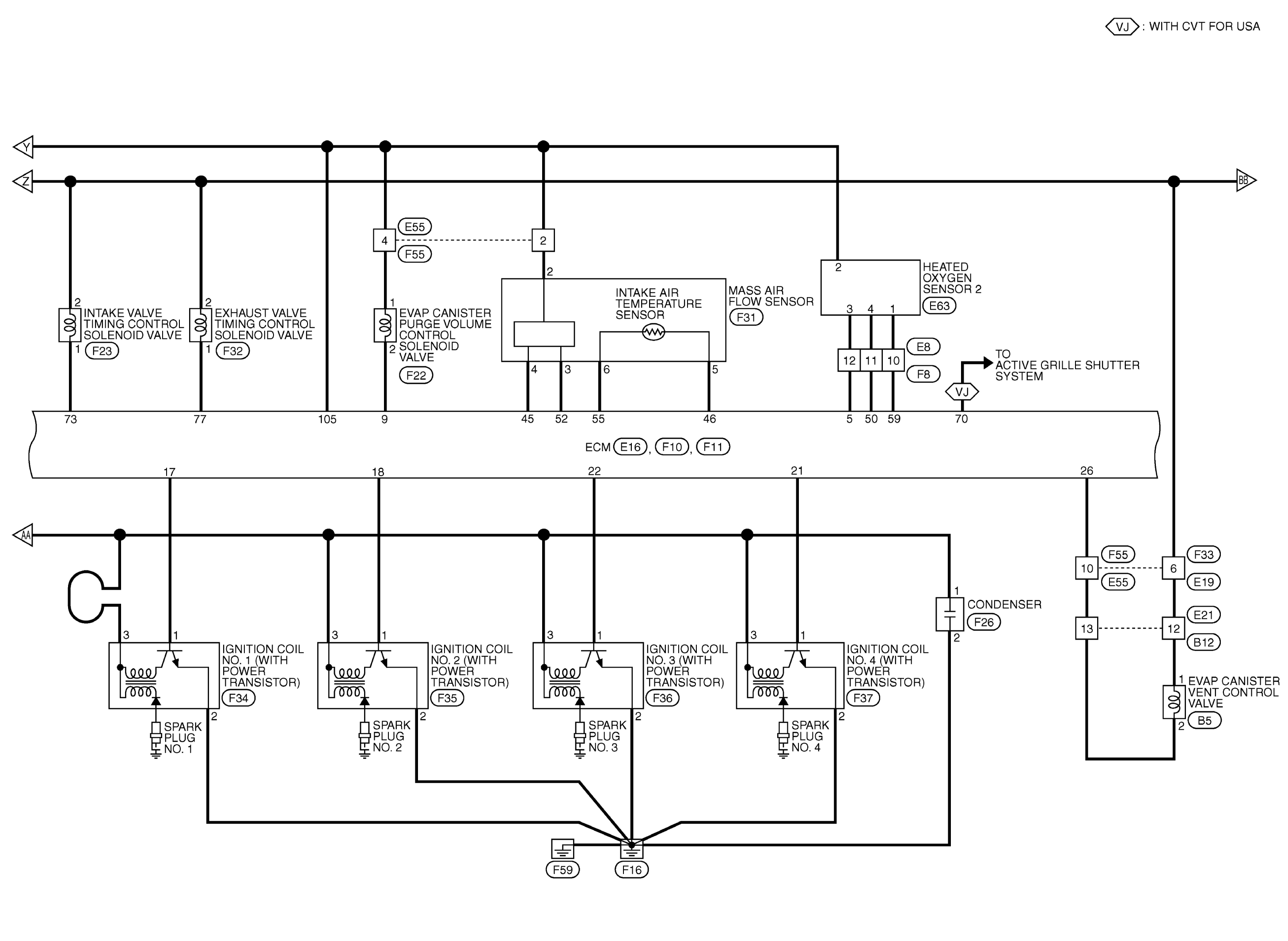

Fig 5: Engine Control System Wiring Diagram (5 Of 6)

GNSAABWA0946GB-946

Courtesy of NISSAN NORTH AMERICA, INC.

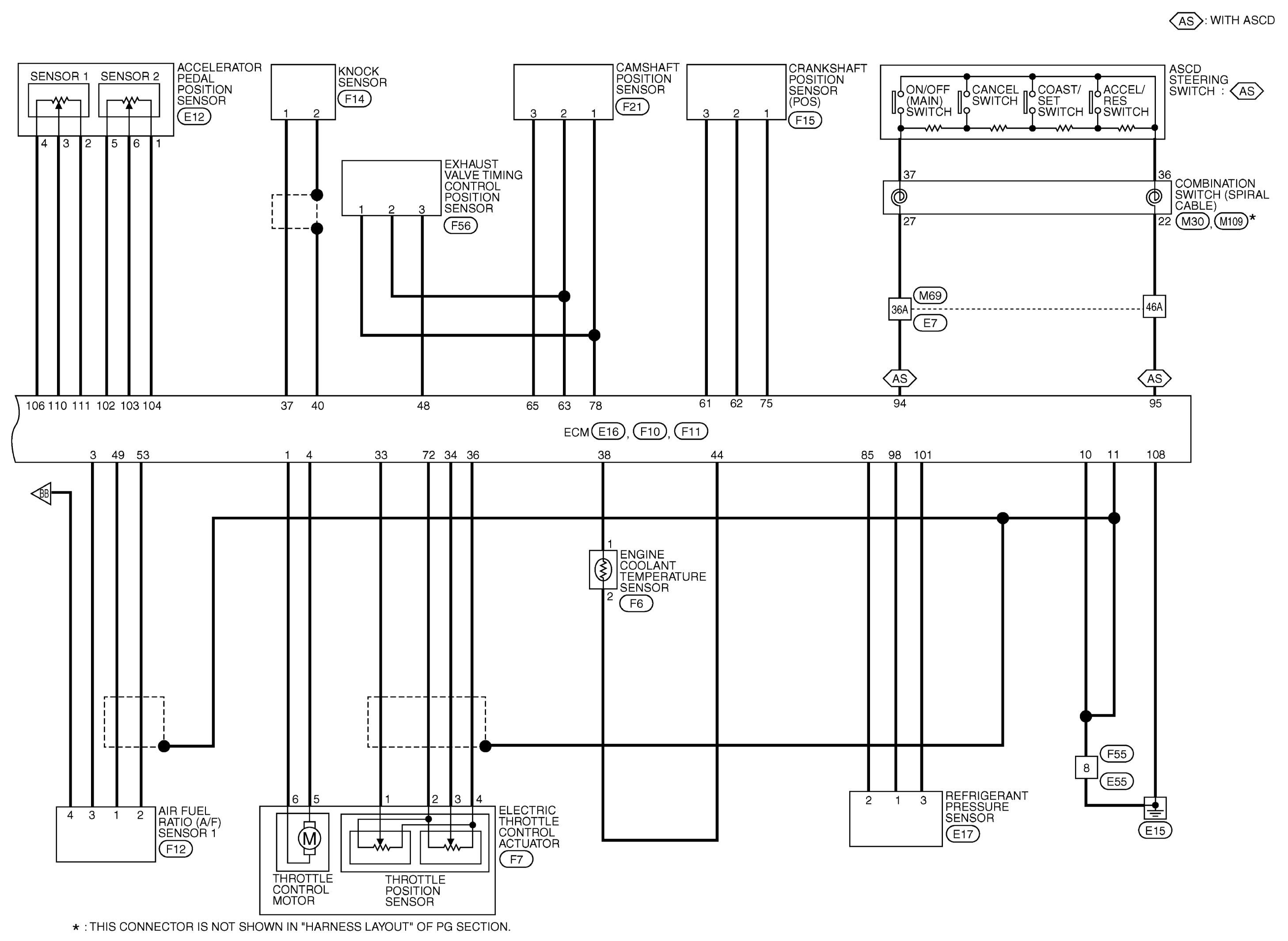

Fig 6: Engine Control System Wiring Diagram (6 Of 6)

GNSABBWA1630GB-630

Courtesy of NISSAN NORTH AMERICA, INC.

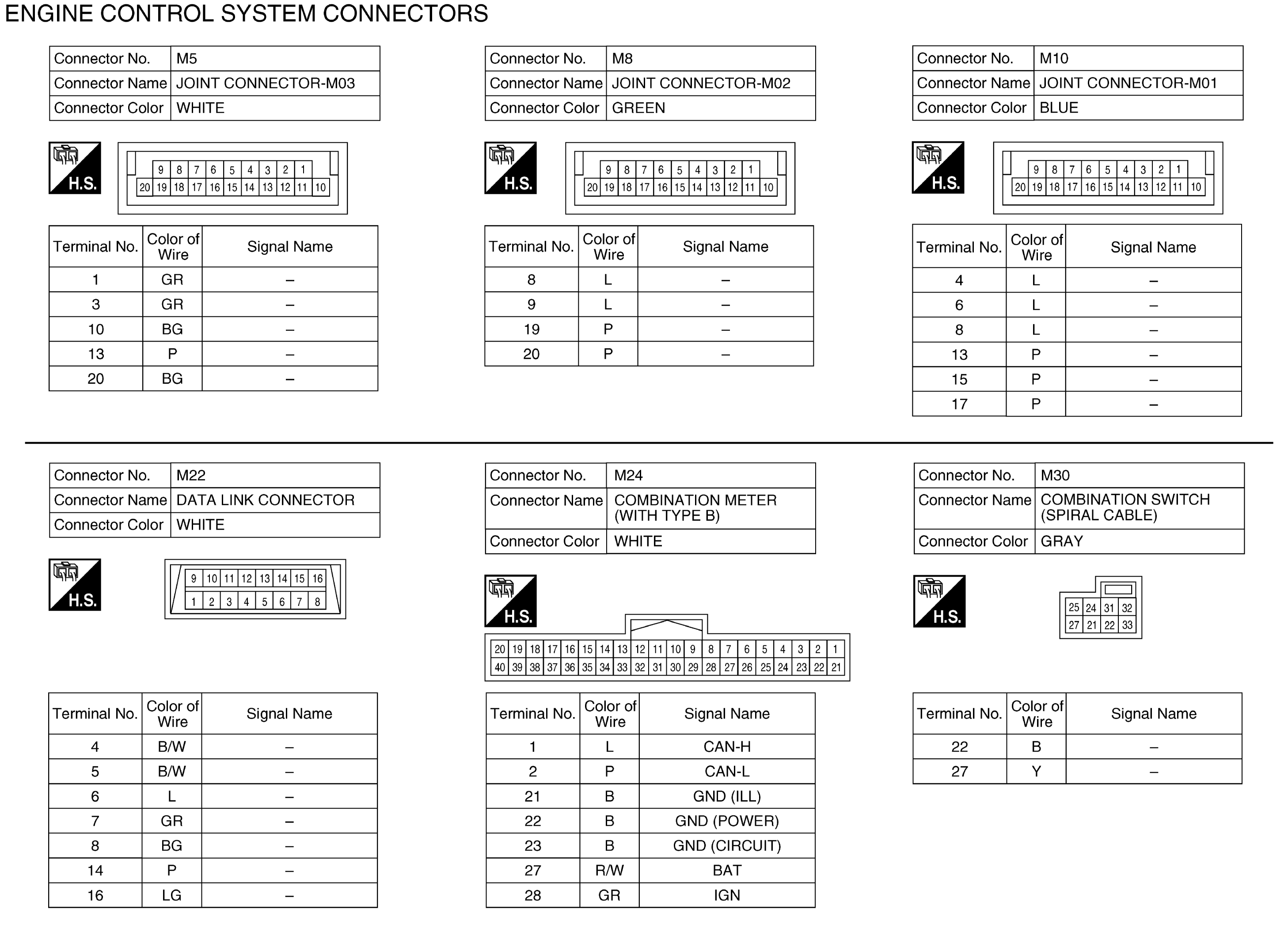

Fig 7: Engine Control System Connectors (1 Of 15)

GNSABBIA3052GB-052

Courtesy of NISSAN NORTH AMERICA, INC.

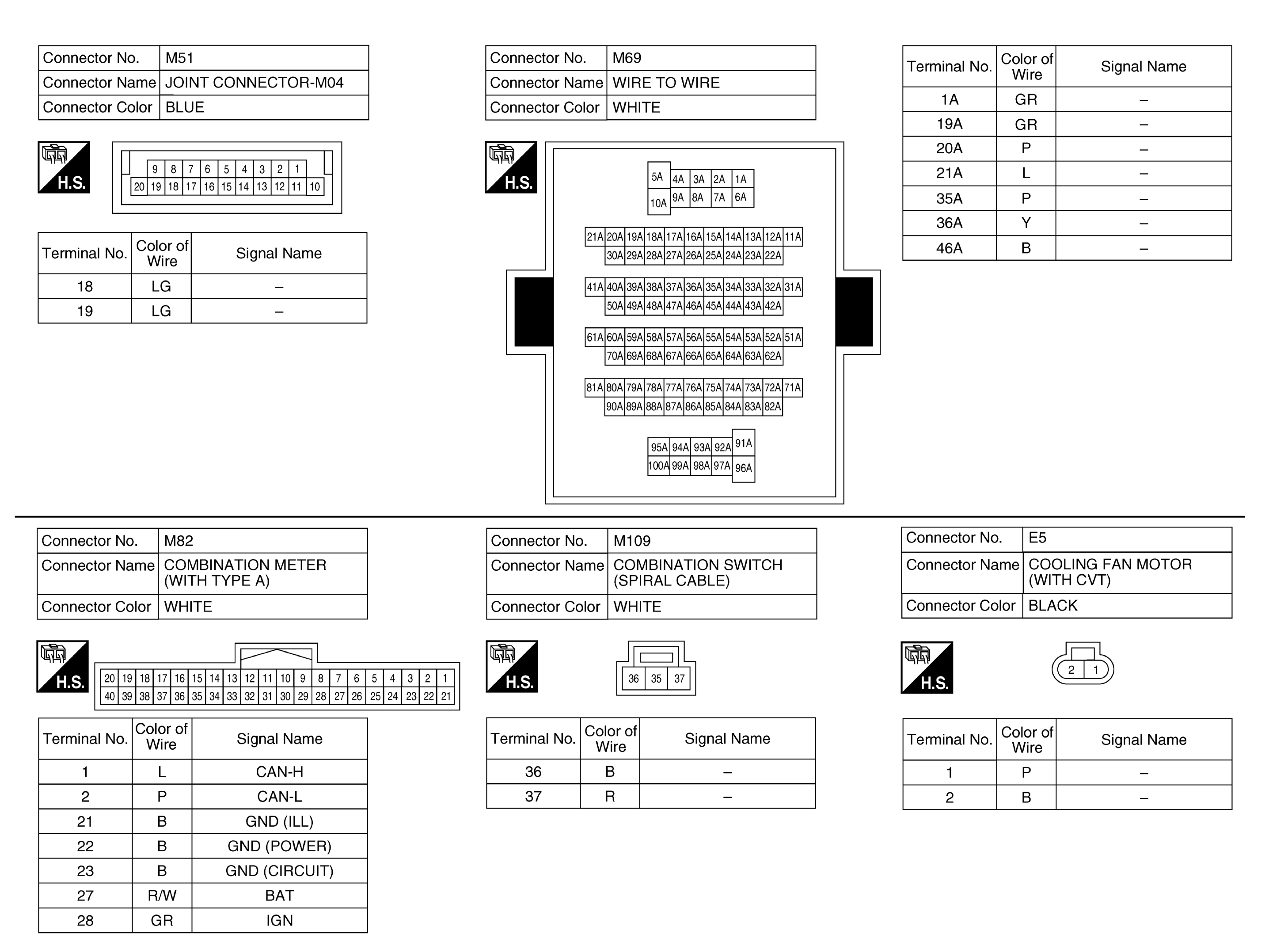

Fig 8: Engine Control System Connectors (2 Of 15)

GNSABBIA3053GB-053

Courtesy of NISSAN NORTH AMERICA, INC.

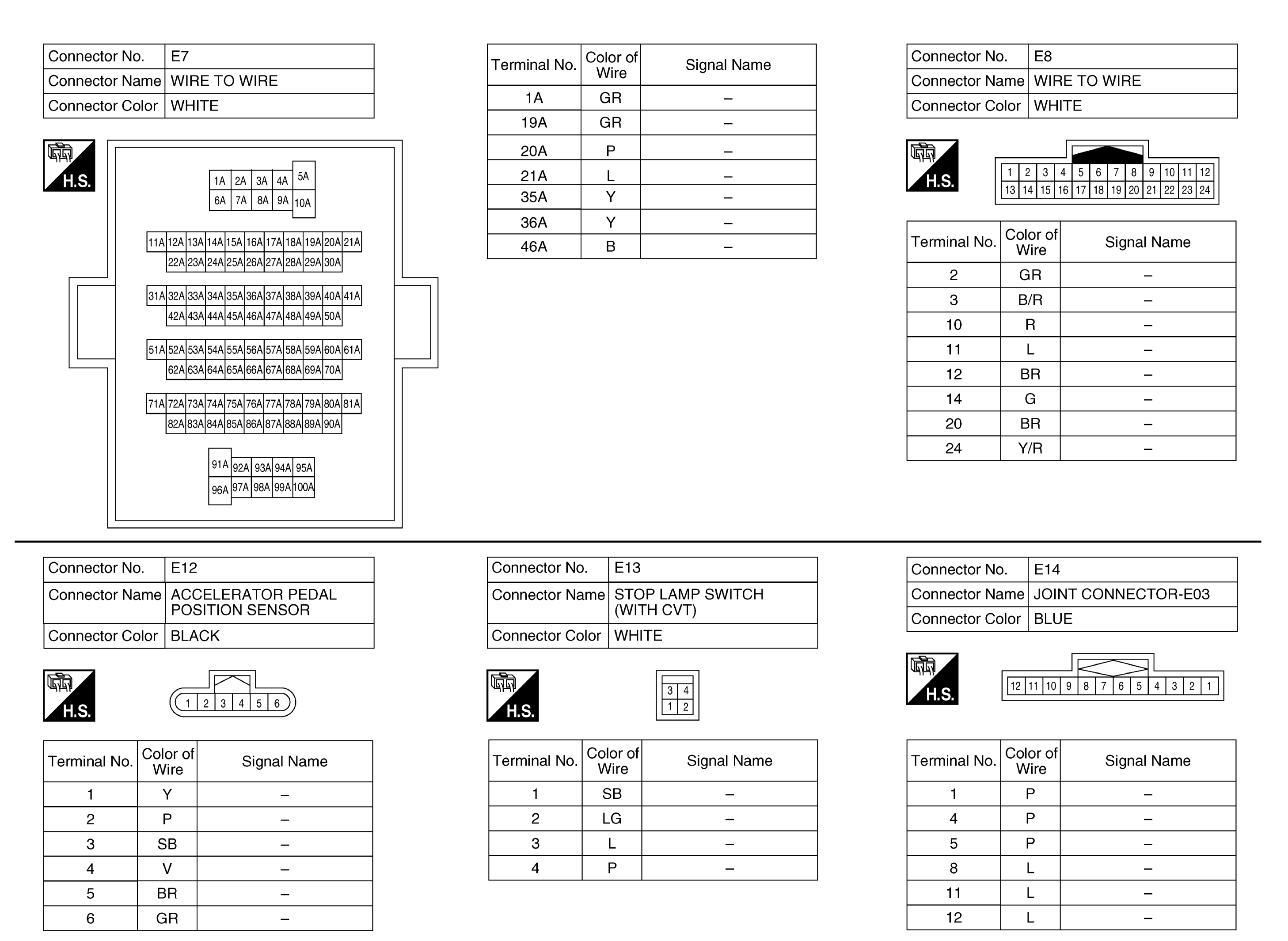

Fig 9: Engine Control System Connectors (3 Of 15)

GNSAABIA1411GB-411

Courtesy of NISSAN NORTH AMERICA, INC.

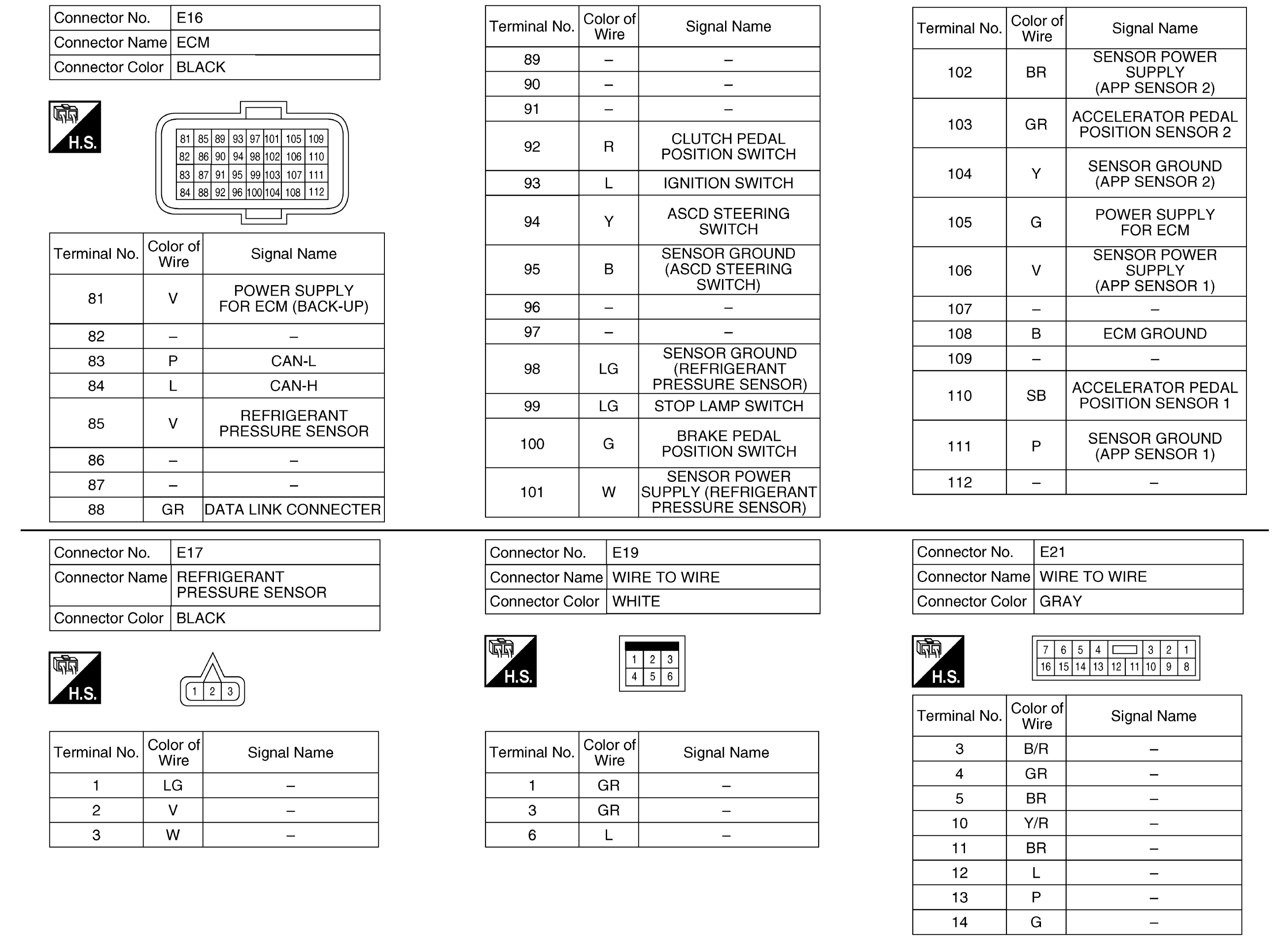

Fig 10: Engine Control System Connectors (4 Of 15)

GNSABBIA3054GB-054

Courtesy of NISSAN NORTH AMERICA, INC.

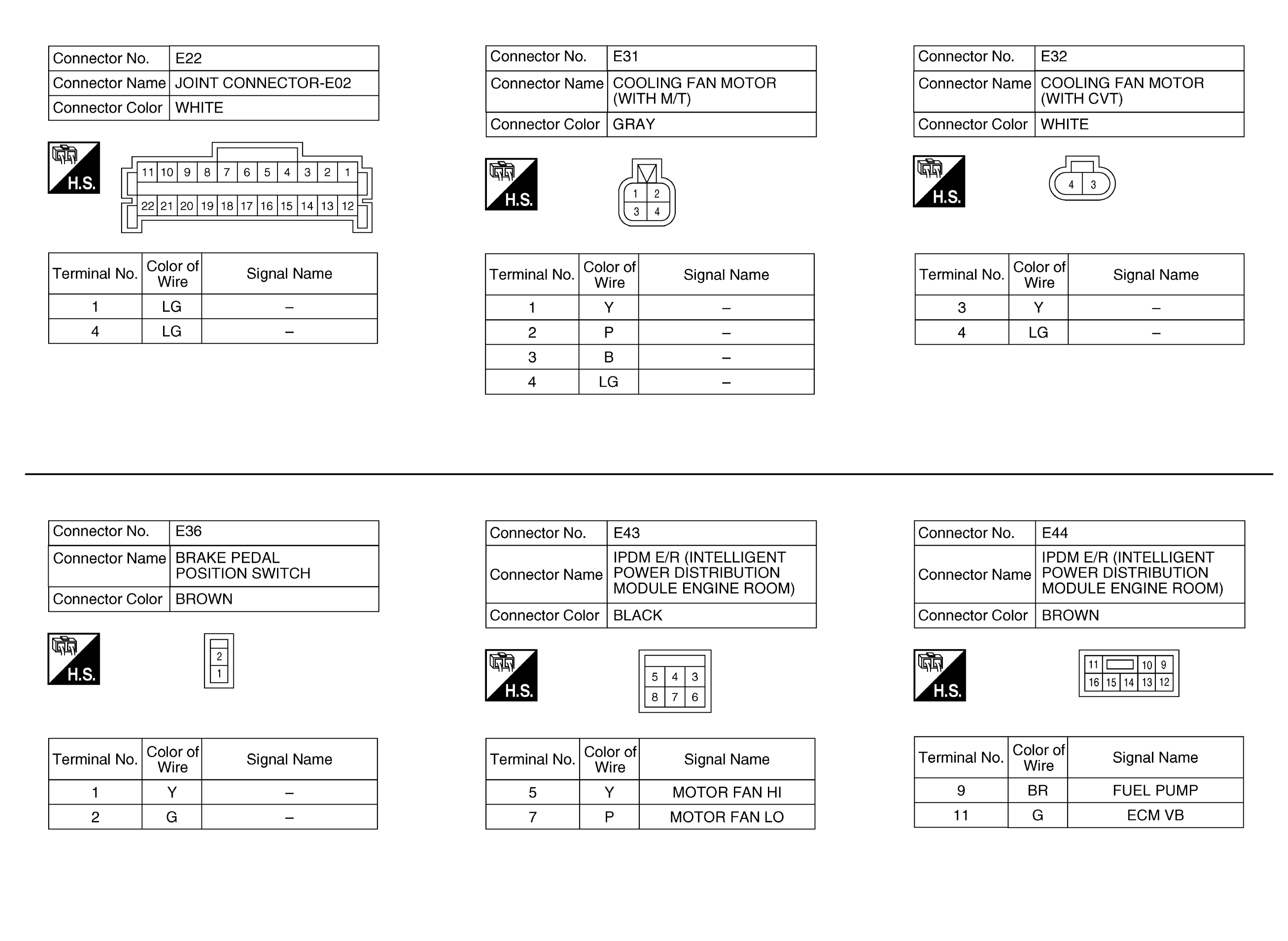

Fig 11: Engine Control System Connectors (5 Of 15)

GNSABBIA3055GB-055

Courtesy of NISSAN NORTH AMERICA, INC.

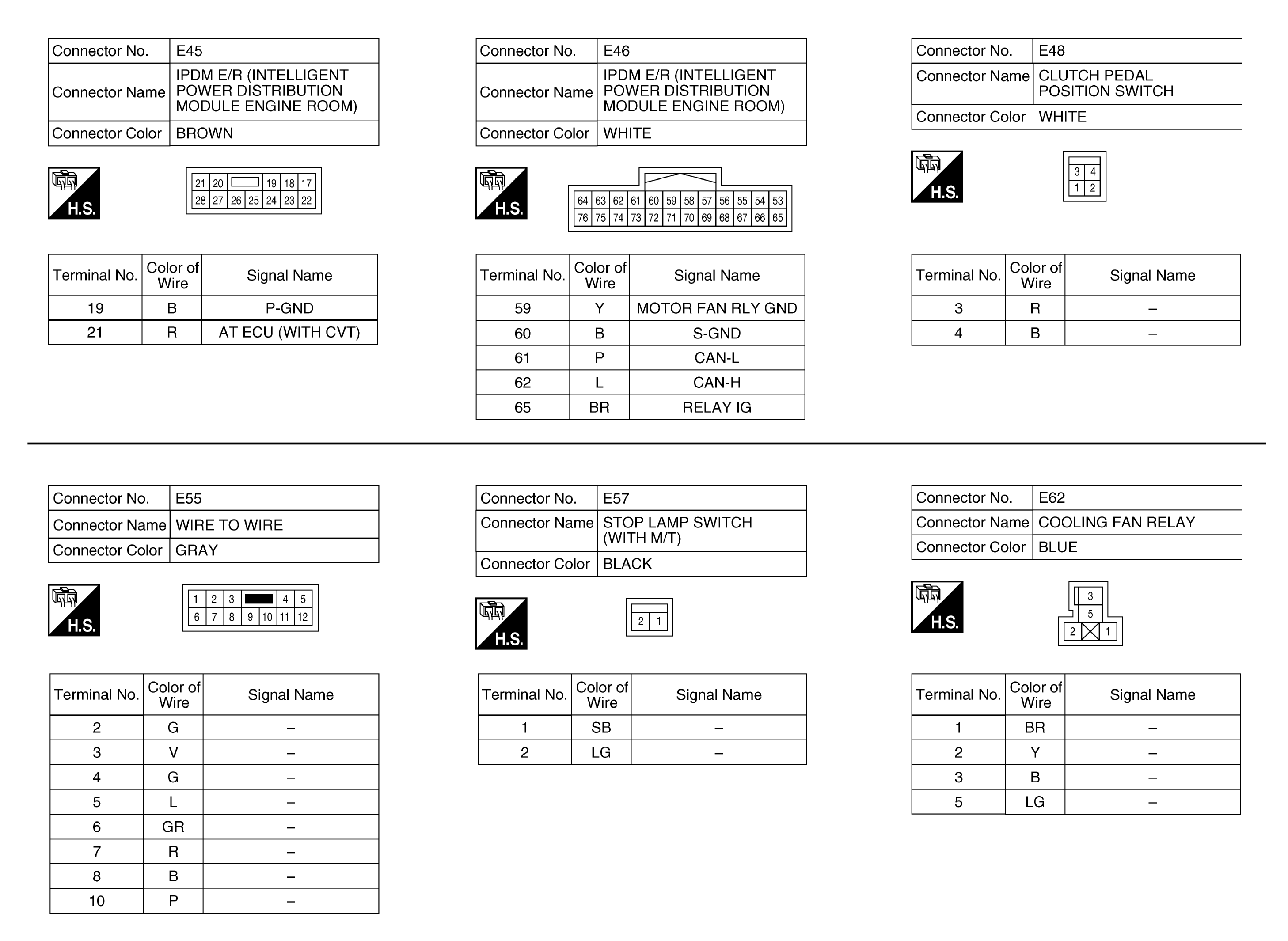

Fig 12: Engine Control System Connectors (6 Of 15)

GNSABBIA3056GB-056

Courtesy of NISSAN NORTH AMERICA, INC.

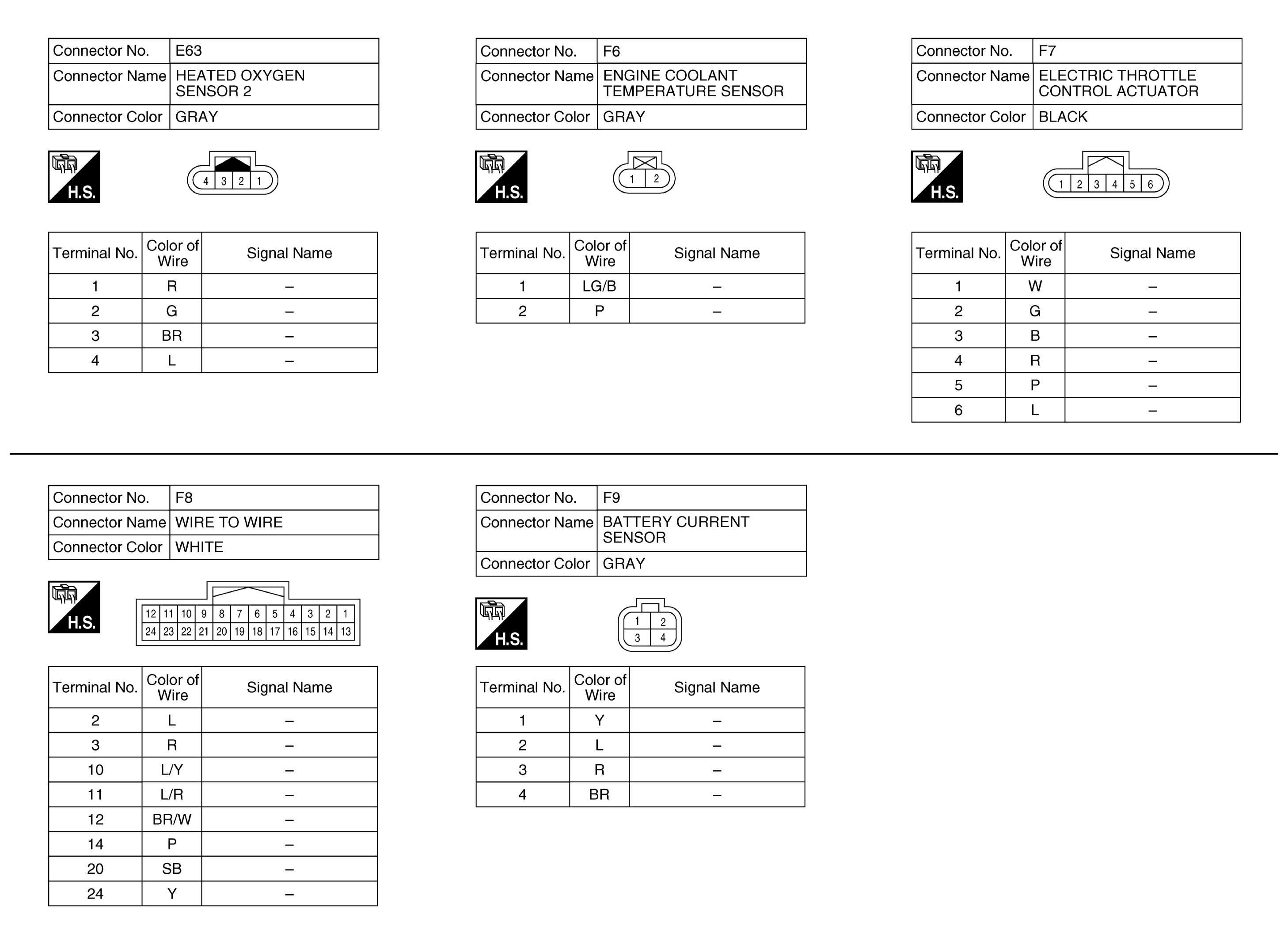

Fig 13: Engine Control System Connectors (7 Of 15)

GNSABBIA3057GB-057

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Connectors (8 Of 15)

G09617648

Courtesy of NISSAN NORTH AMERICA, INC.

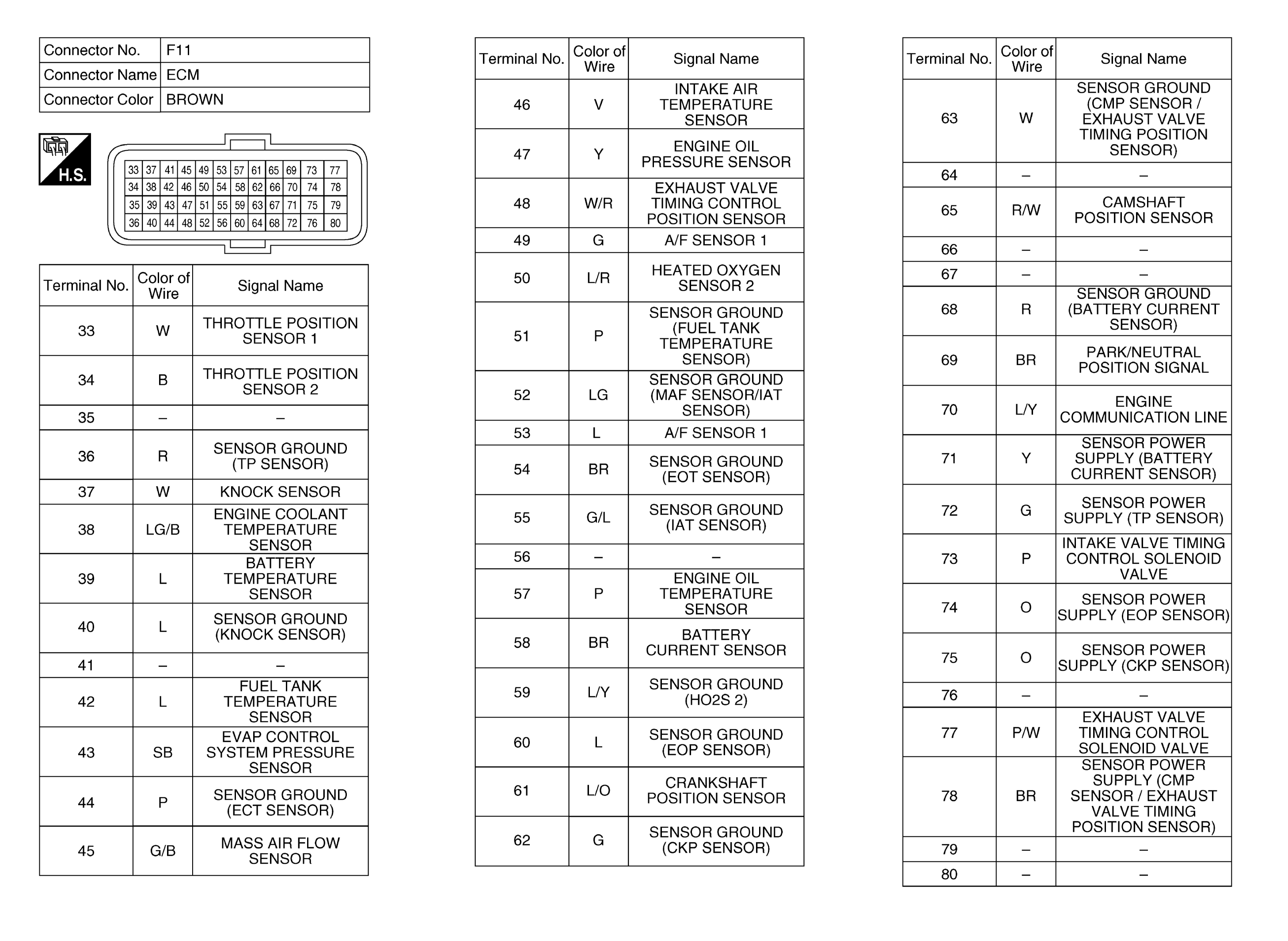

Fig 15: Engine Control System Connectors (9 Of 15)

GNSAABIA1412GB-412

Courtesy of NISSAN NORTH AMERICA, INC.

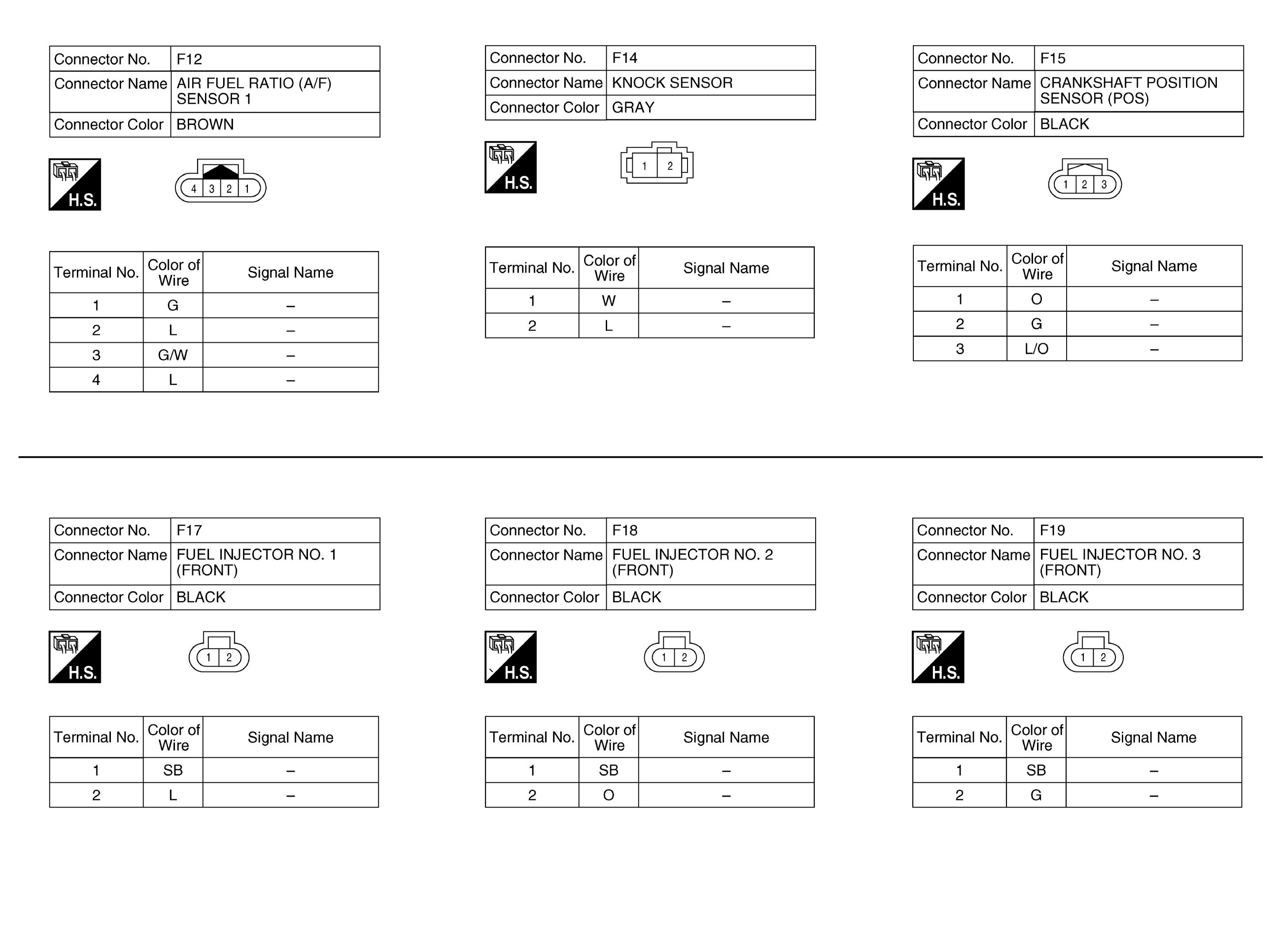

Fig 16: Engine Control System Connectors (10 Of 15)

GNSABBIA3058GB-058

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Engine Control System Connectors (11 Of 15)

G09617651

Courtesy of NISSAN NORTH AMERICA, INC.

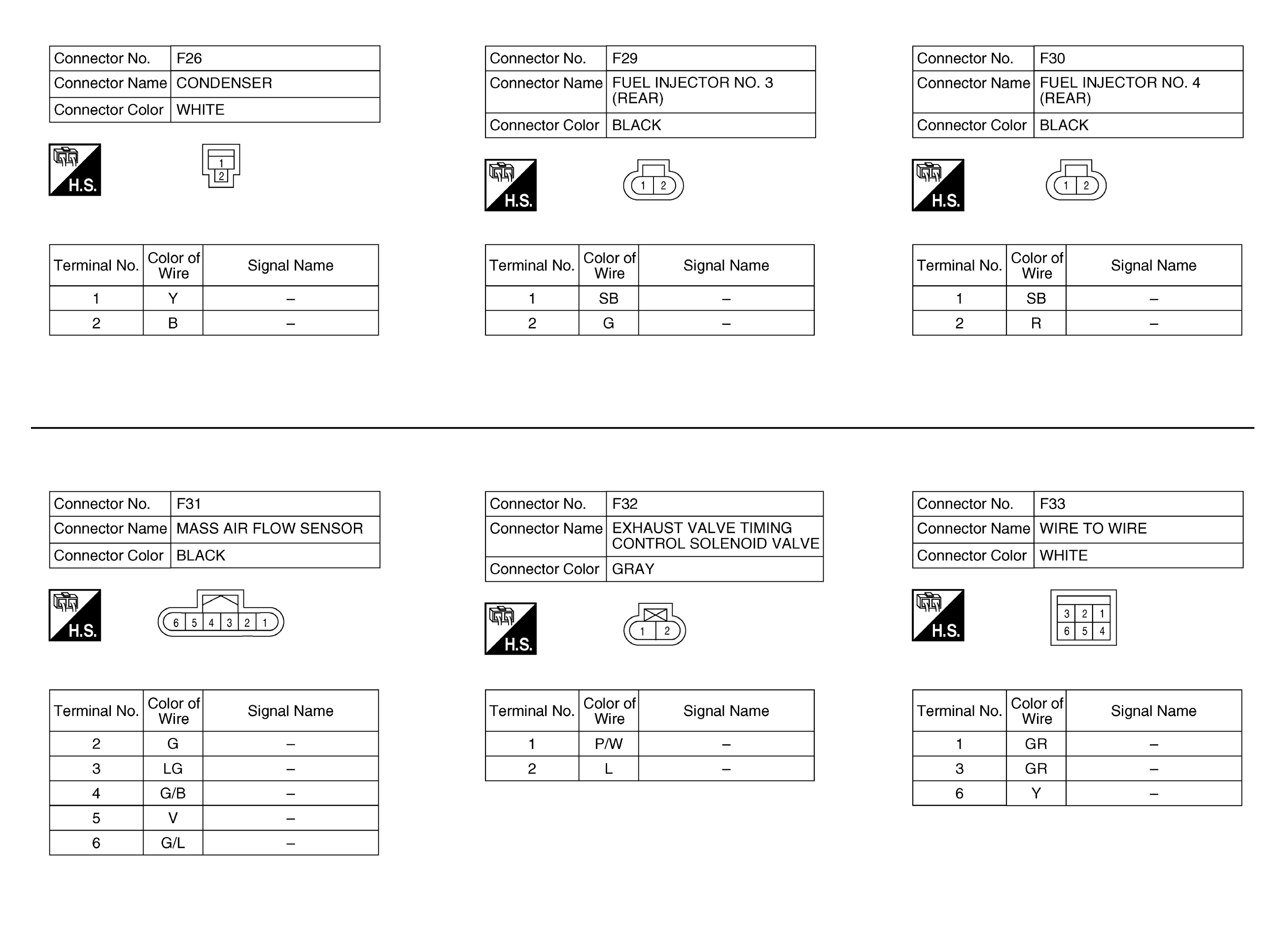

Fig 18: Engine Control System Connectors (12 Of 15)

GNSABBIA3059GB-059

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Engine Control System Connectors (13 Of 15)

G09617653

Courtesy of NISSAN NORTH AMERICA, INC.

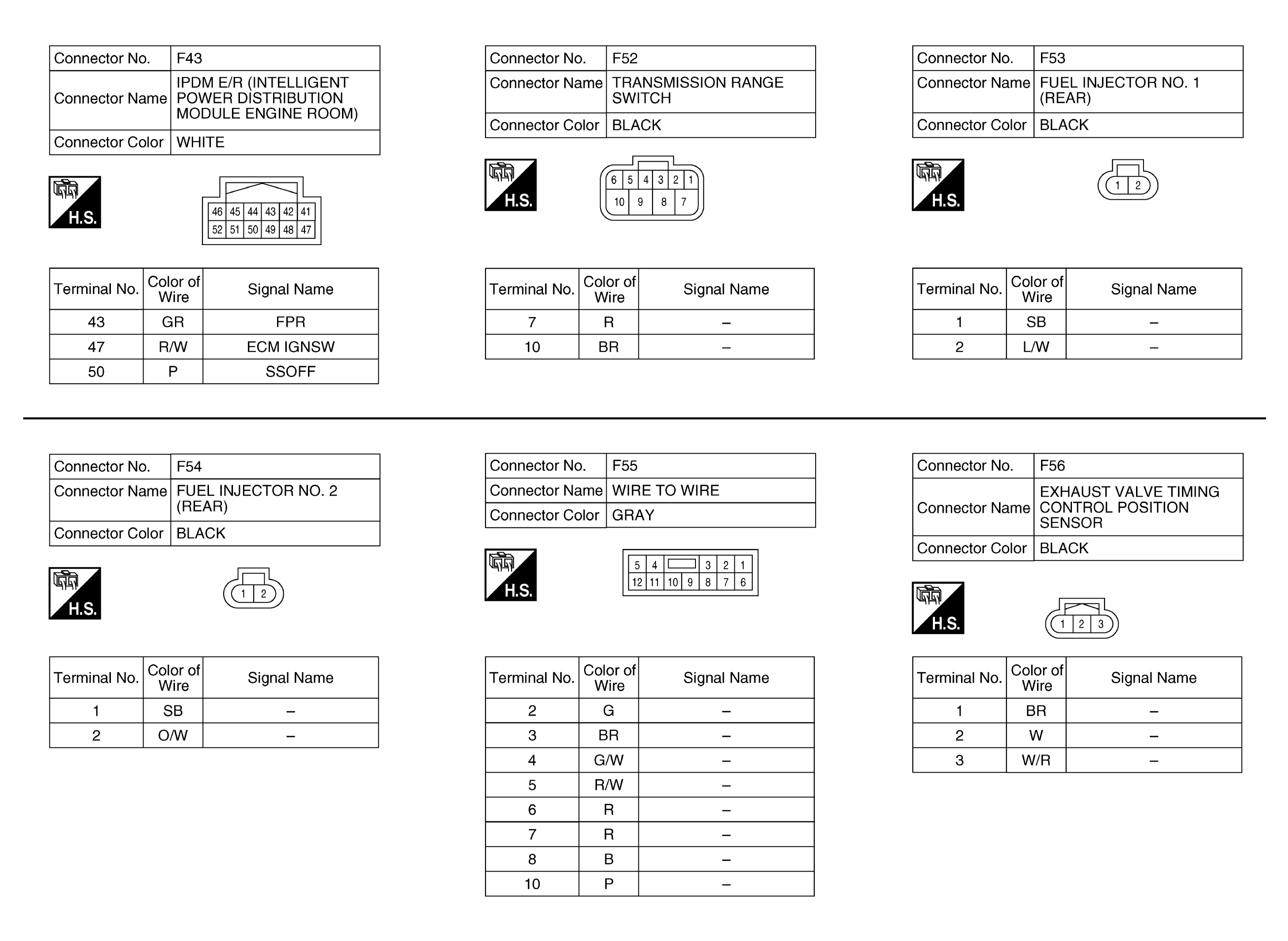

Fig 20: Engine Control System Connectors (14 Of 15)

GNSABBIA3060GB-060

Courtesy of NISSAN NORTH AMERICA, INC.

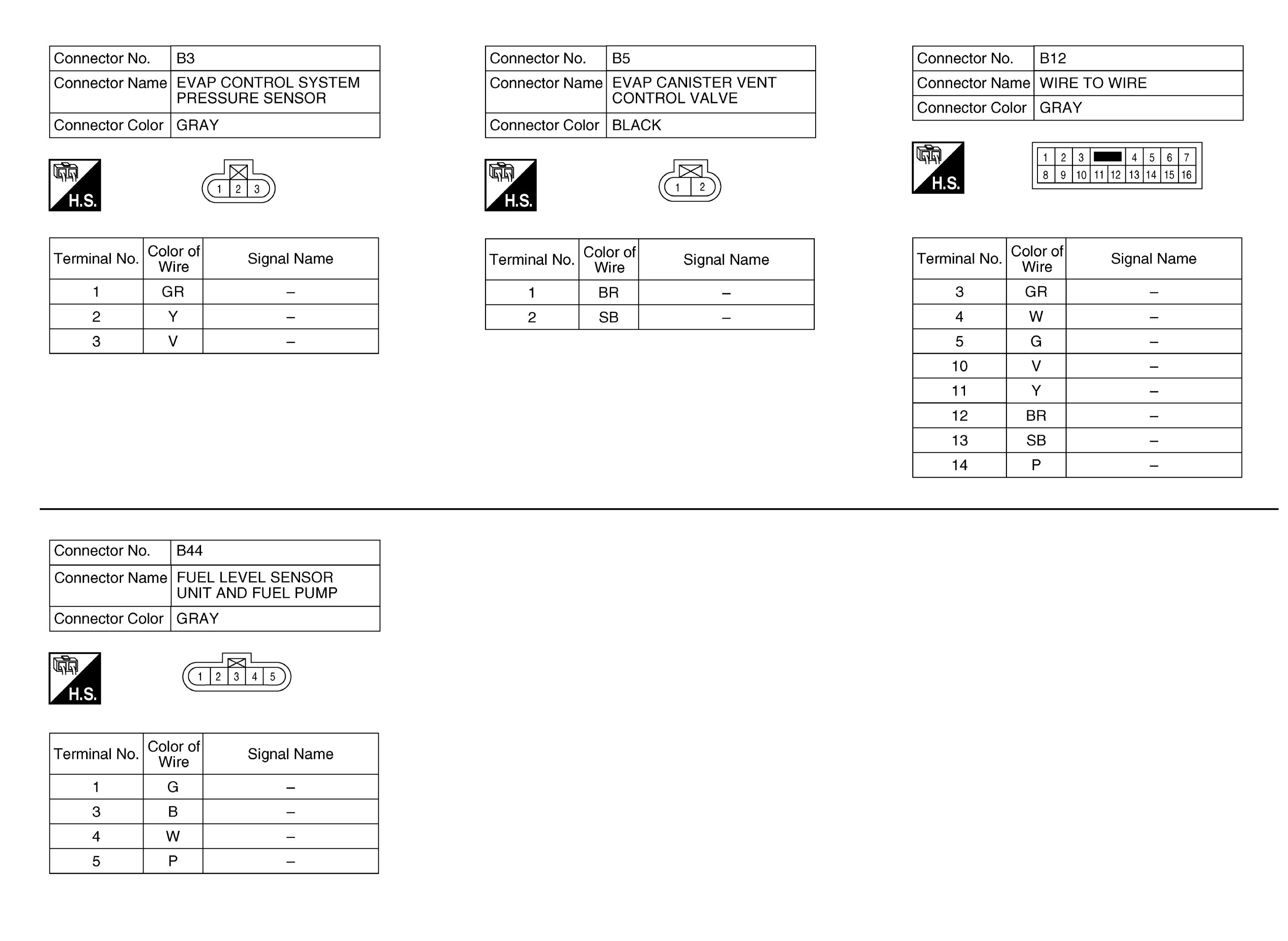

Fig 21: Engine Control System Connectors (15 Of 15)

GNSAABIA1415GB-415

Courtesy of NISSAN NORTH AMERICA, INC.
