Front Subsystem

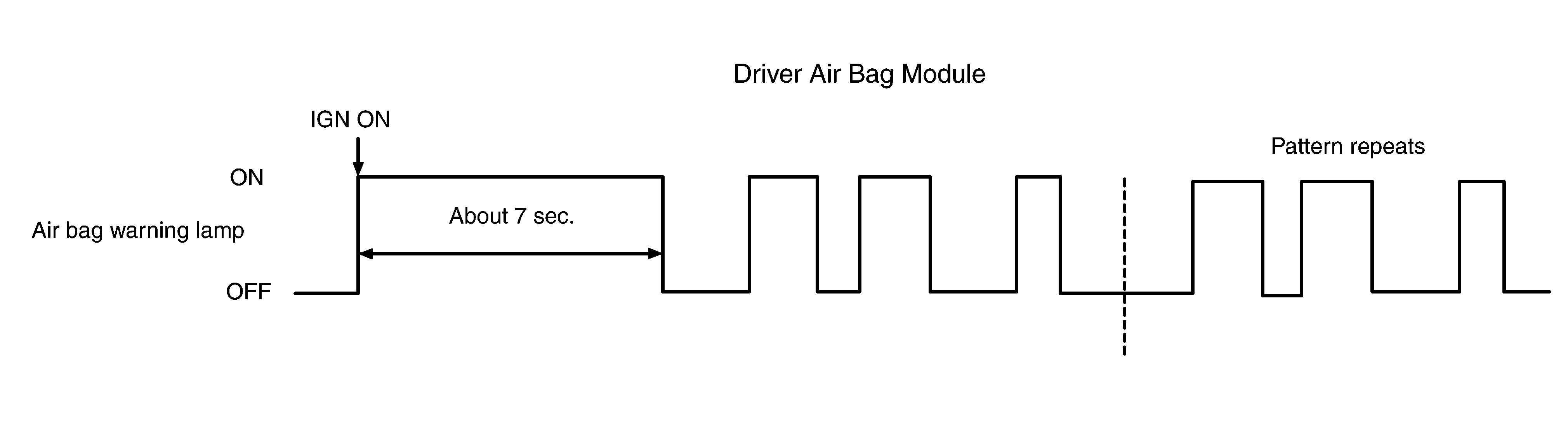

Fig 1: Air Bag Warning Lamp Blinking Pattern (Front Subsystem)
G08686599Courtesy of NISSAN NORTH AMERICA, INC.
Flashes
(Primary)		 Flash Length
(seconds)		 Flashes
(Secondary)		 Malfunctioning Component or Circuit Reference
2 1.5 1 Driver air bag module DIAGNOSIS PROCEDURE
2 Passenger air bag module DIAGNOSIS PROCEDURE
3 Front LH seat belt pre-tensioner DIAGNOSIS PROCEDURE
4 Front RH seat belt pre-tensioner DIAGNOSIS PROCEDURE
