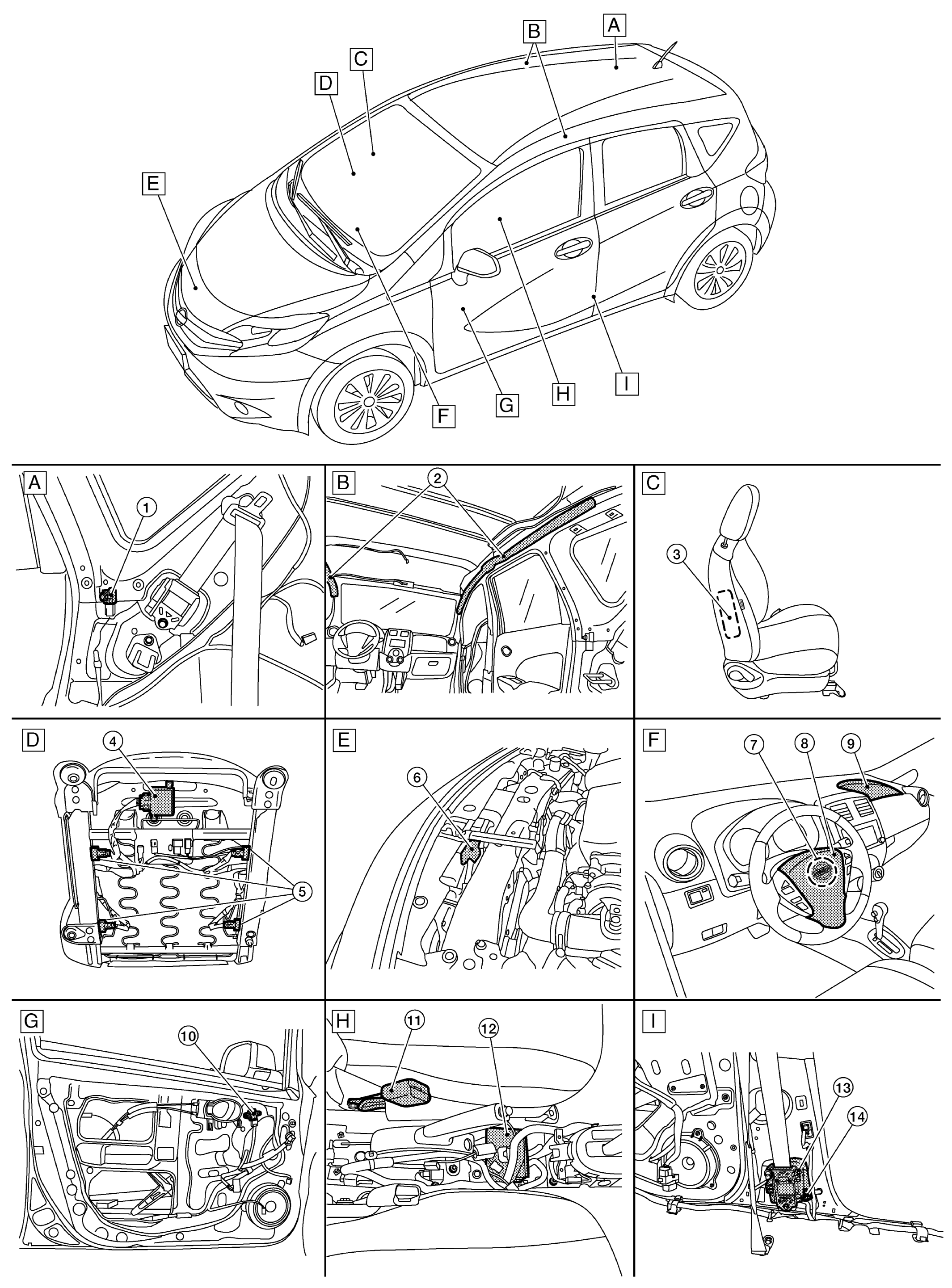

Component Parts Location
| A. | View with RH rear lower luggage finisher removed |
B. | View with headlining removed | C. | RH front passenger seat |
| D. | Occupant classification system | E. | Radiator core support assembly | F. | Instrument panel |
| G. | View with front LH door finisher removed |
H. | View with center console trim removed |
I. | View with lower B-pillar trim removed |
| No. | Component | Function |
|---|---|---|
| 1. | Rear side air bag satellite sensor RH (LH similar) | Refer to REAR SIDE AIR BAG SATELLITE SENSOR . |
| 2. | Side curtain air bag modules | Refer to SIDE CURTAIN AIR BAG MODULE . |
| 3. | Front side air bag module | Refer to FRONT SIDE AIR BAG MODULE . |
| 4. | Occupant classification system control unit | Refer to SYSTEM DESCRIPTION . |
| 5. | Occupant classification system sensors | Refer to SYSTEM DESCRIPTION . |
| 6. | Crash zone sensor | Refer to CRASH ZONE SENSOR . |
| 7. | Spiral cable | The spiral cable provides a rotating physical connection to the driver air bag module. |
| 8. | Drivers air bag module | Refer to DRIVER AIR BAG MODULE . |
| 9. | Front passenger air bag module | Refer to FRONT PASSENGER AIR BAG MODULE . |
| 10. | Front door satellite sensor | Refer to FRONT DOOR SATELLITE SENSOR . |
| 11. | Seat belt buckle switch LH (RH similar) | The seat belt buckle switches (LH/RH) provide the seat belt buckle signals to the air bag diagnosis sensor unit and the combination meter. |
| 12. | Air bag diagnosis sensor unit | Refer to AIR BAG DIAGNOSIS SENSOR UNIT . |
| 13. | Front seat belt pre-tensioner LH (RH similar) | Refer to FRONT SEAT BELT PRE-TENSIONER . |
| 14. | Front side air bag satellite sensor | Refer to FRONT SIDE AIR BAG SATELLITE SENSOR . |
