Exploded View With Torque Specifications

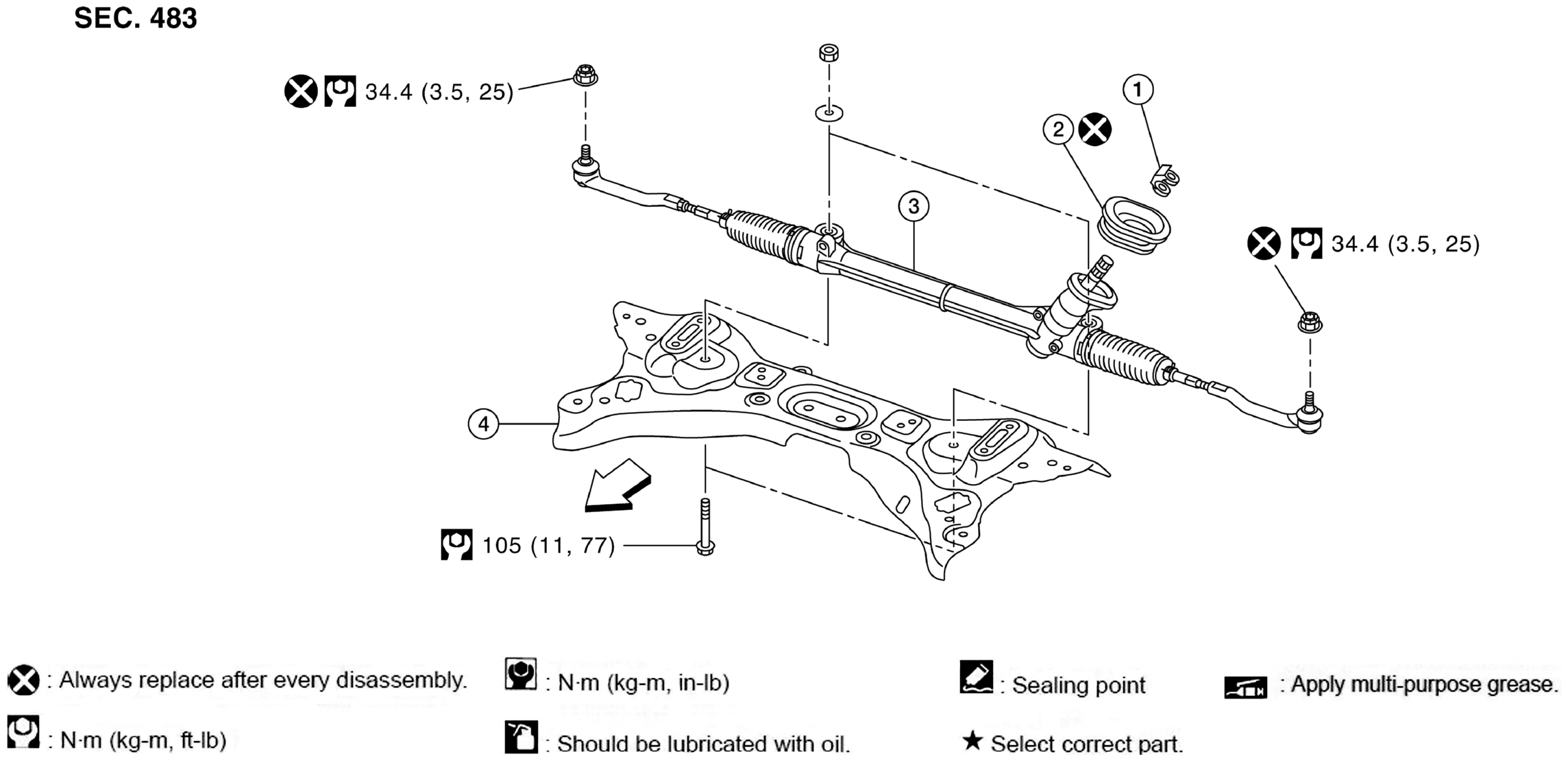

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSAWGIA0236ZZ-236Courtesy of NISSAN NORTH AMERICA, INC.
1. Guide 2. Cowl seal 3. Steering gear
4. Front suspension member ARROW Front
