Exploded View

QR25DE

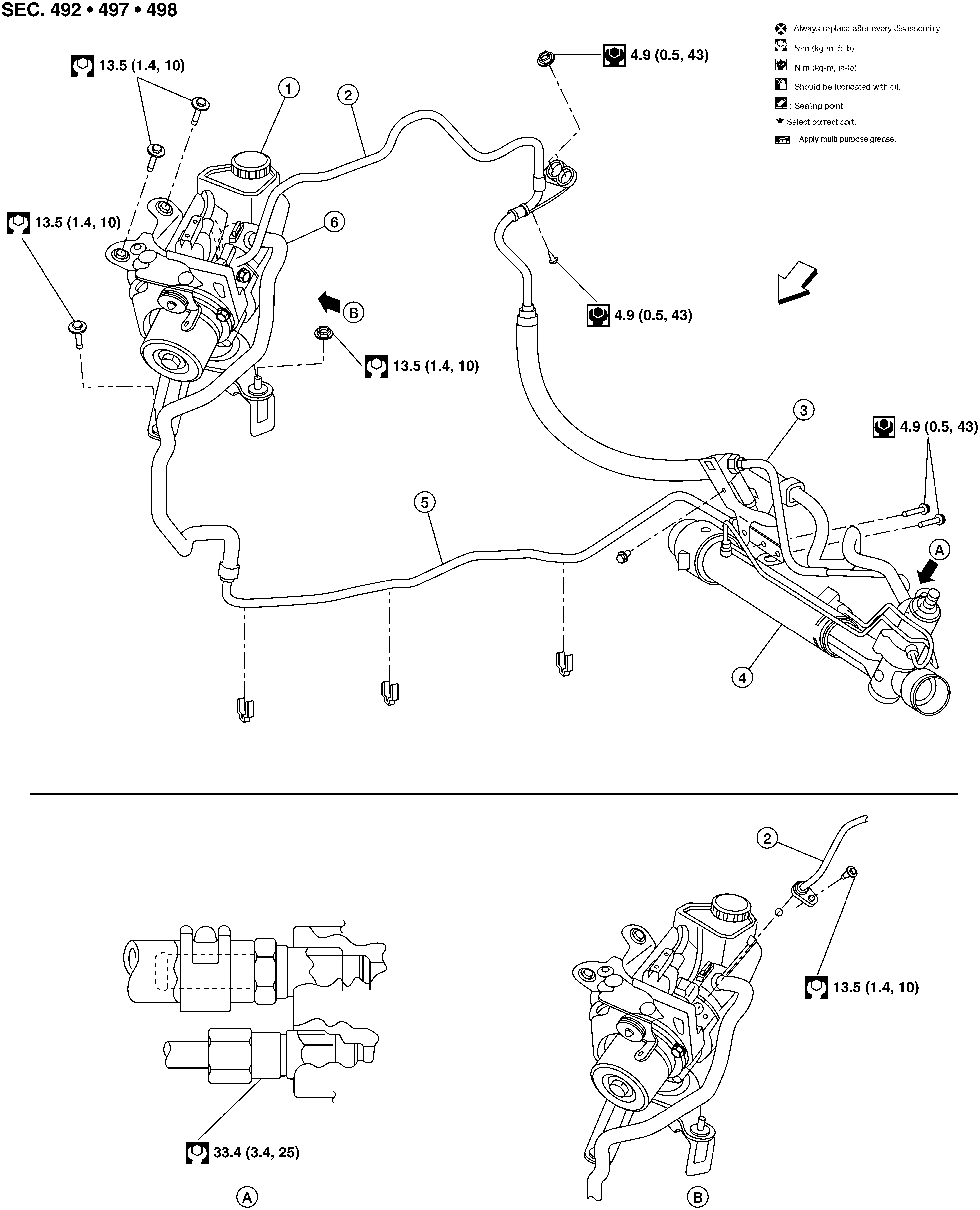

Fig 1: HYDRAULIC LINE With Torque Specifications
GNSALGIA0133GB-133Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering pump assembly 2. High pressure piping (upper) 3. High pressure piping (lower)
4. Power steering gear assembly 5. Low pressure piping (lower) 6. Low pressure piping (upper)
A. View A B. View B ARROW Front

VQ35DE

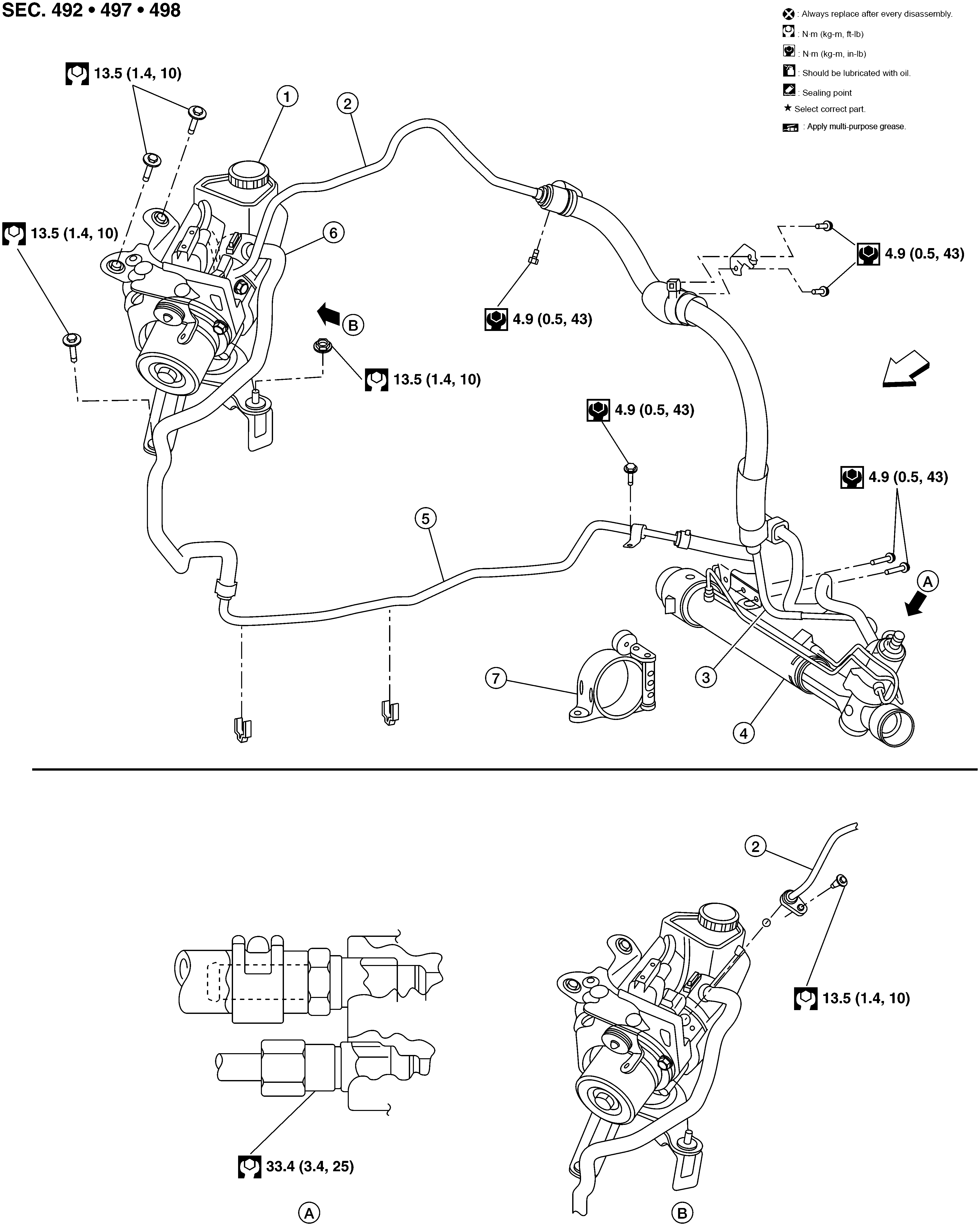

Fig 2: HYDRAULIC LINE With Torque Specifications
GNSALGIA0134GB-134Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering pump assembly 2. High pressure piping (upper) 3. Low pressure piping (lower)
4. Power steering gear assembly 5. Low pressure piping (lower) 6. Low pressure piping (upper)
7. Engine mount bracket A. View A B. View B
ARROW Front
