Exploded View

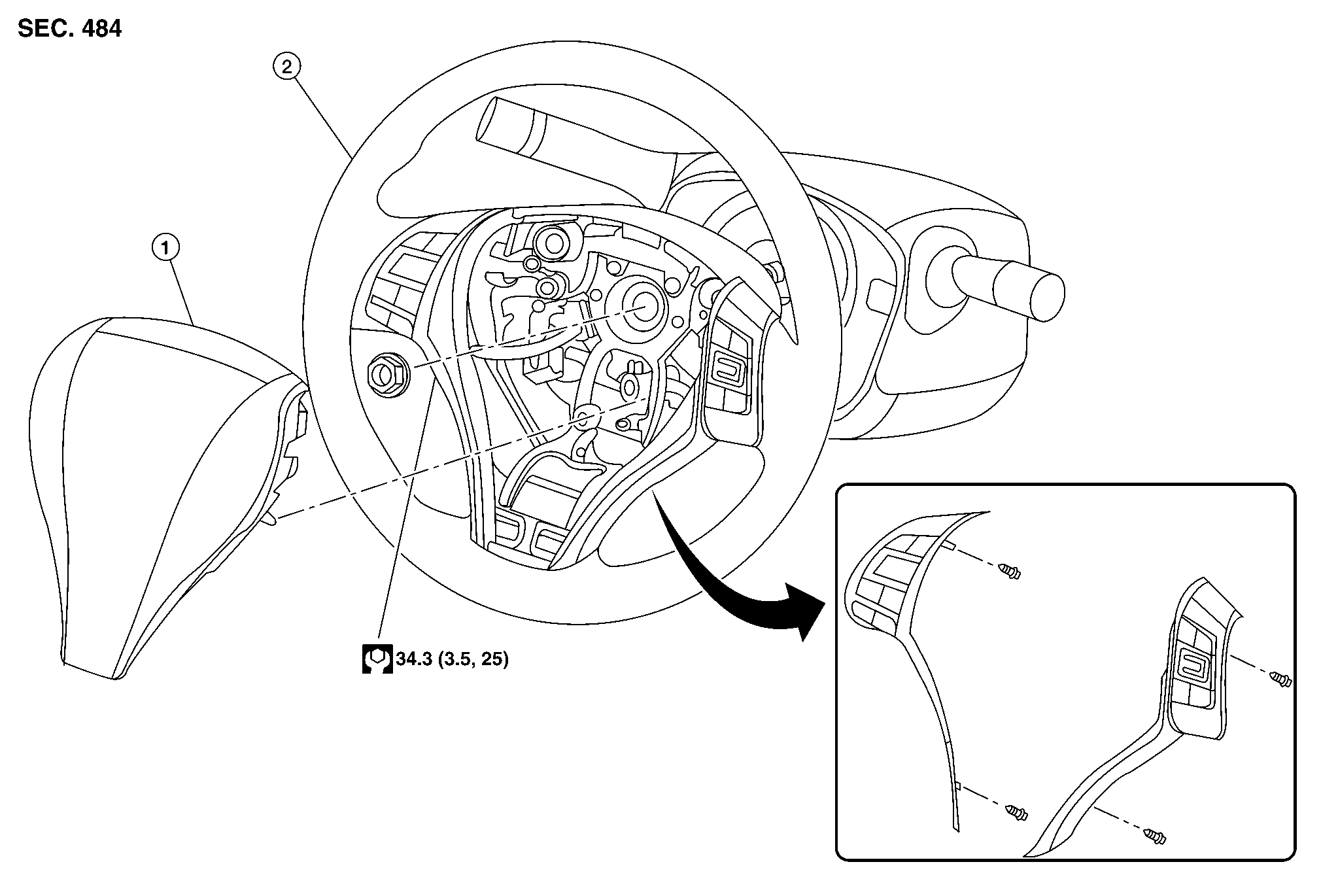

Fig 1: STEERING WHEEL With Torque Specifications
GNSALGIA0138GB-138Courtesy of NISSAN NORTH AMERICA, INC.
1. Driver air bag module 2. Steering wheel
