Exploded View

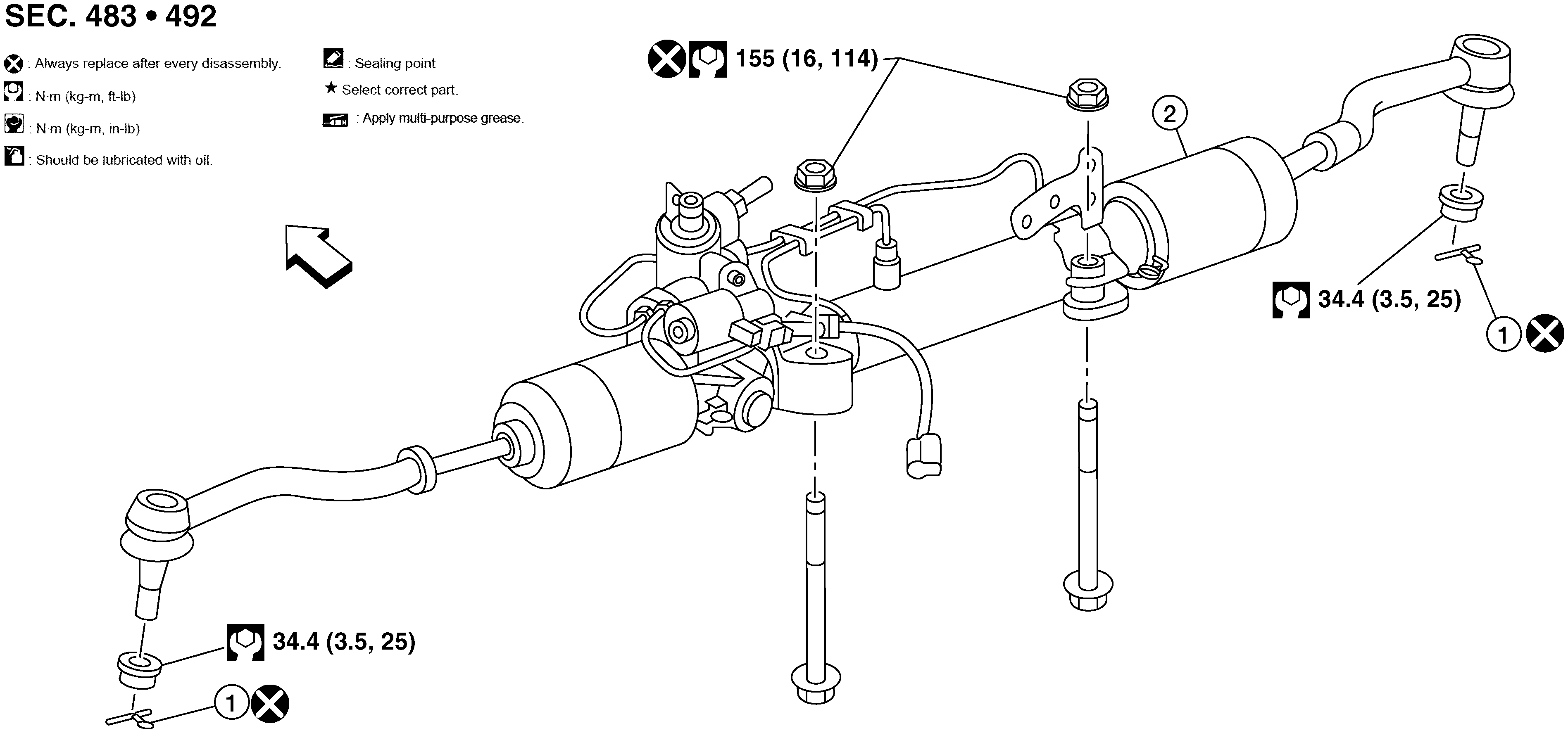

Fig 1: STEERING GEAR AND LINKAGE With Torque Specifications
GNSALGIA0205ZZ-205Courtesy of NISSAN NORTH AMERICA, INC.
1. Cotter pin 2. Steering gear ARROW Front
