Component Location

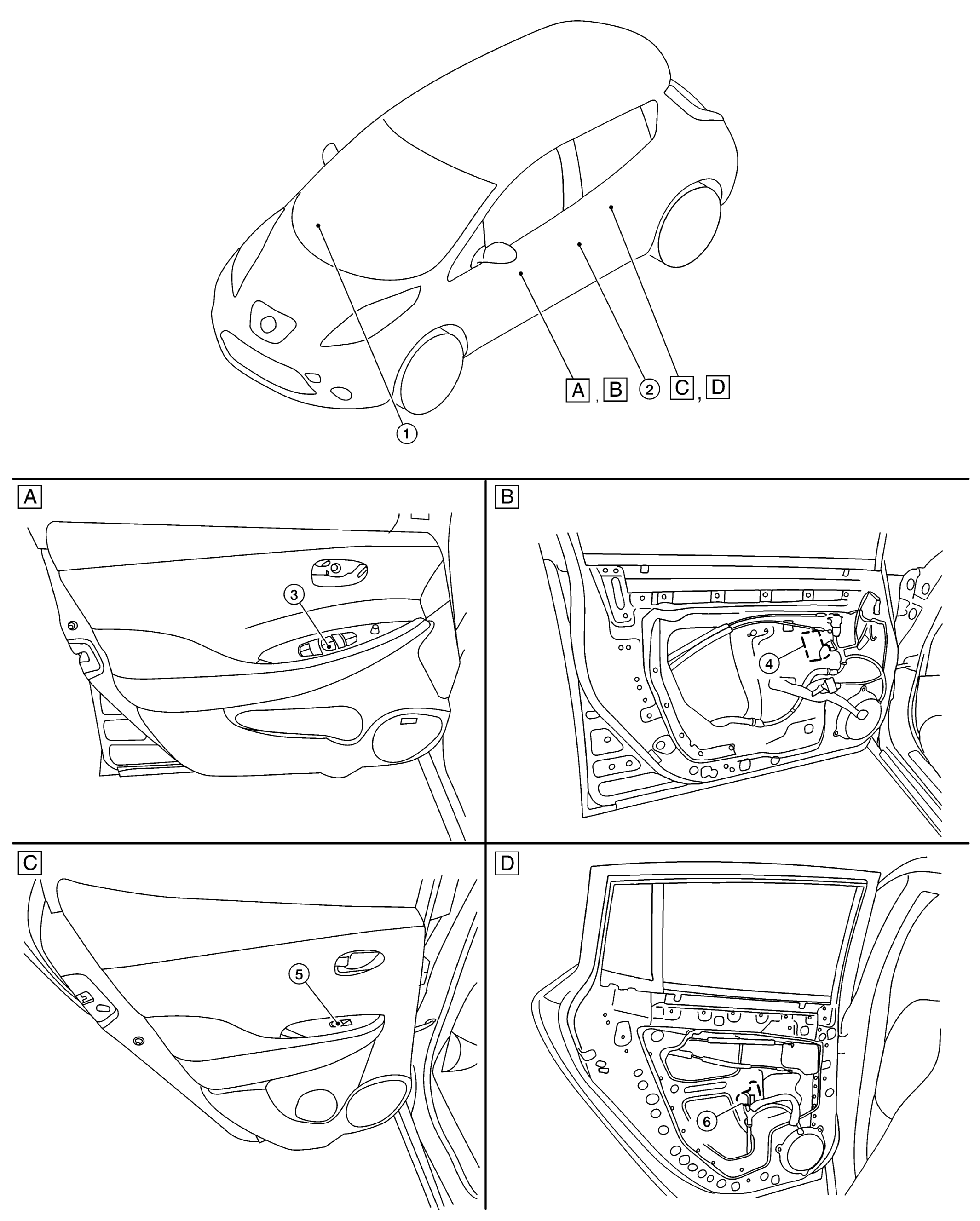

GNSALKIA3515ZZ-515Courtesy of NISSAN NORTH AMERICA, INC.
A. Front door finisher LH B. View with front door finisher removed C. Rear door finisher LH
D. View with rear door finisher removed
No. Component parts Function
1. BCM
  • Supplies power supply to power window switches
  • Controls retained power
  • Refer to COMPONENT LOCATION for detailed installation

    location.
2. Front door switch LH
  • Inputs door open/close condition to BCM
  • Refer to COMPONENT LOCATION for detailed installation location.
3. Main power window and door lock/unlock switch Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
4. Front power window motor LH Refer to POWER WINDOW MOTOR .
5. Rear power window switch LH Refer to POWER WINDOW SWITCH .
6. Rear power window motor LH Refer to POWER WINDOW MOTOR .
