Accelerator Control

Unit: mm (in)

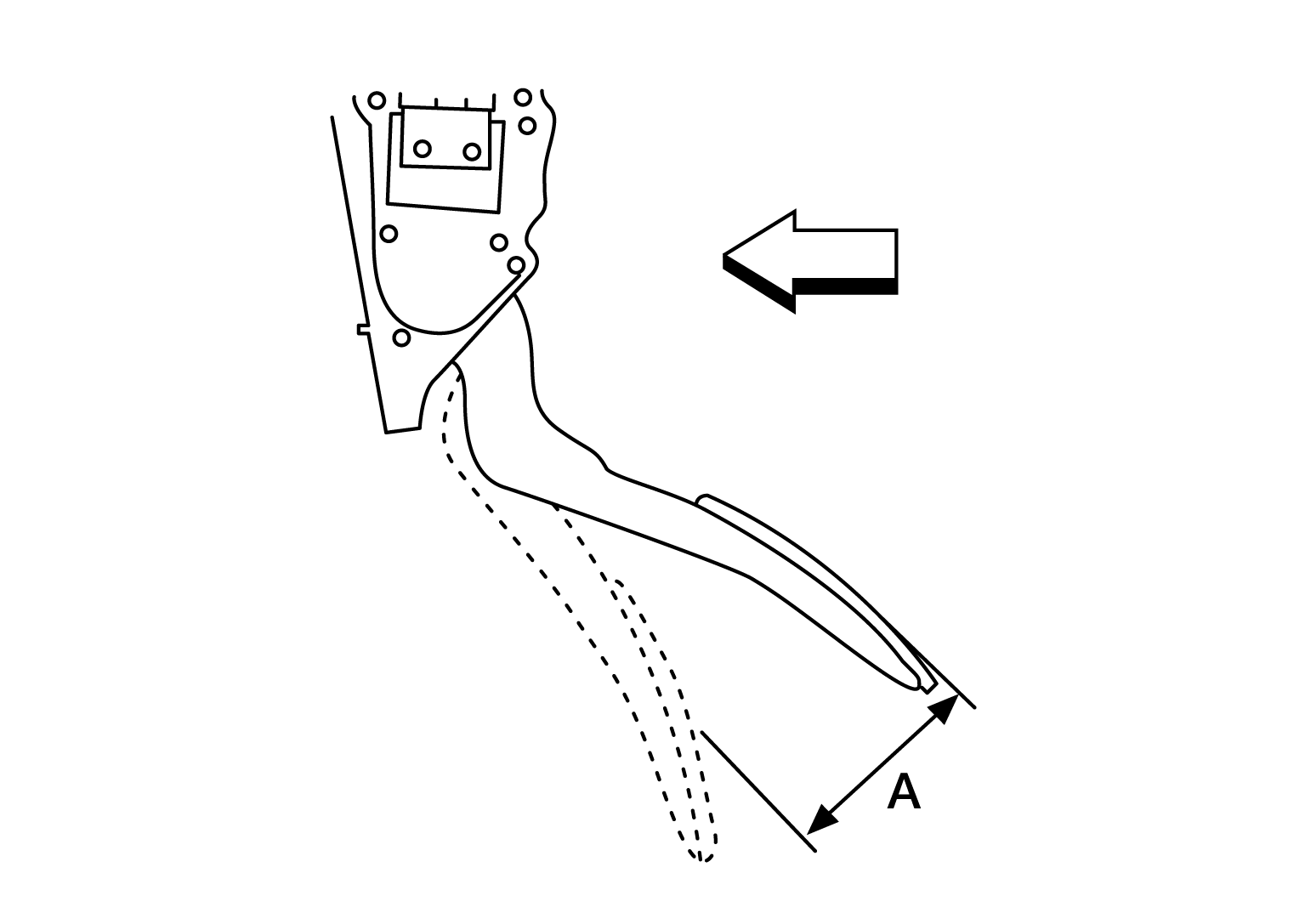

G08703534Courtesy of NISSAN NORTH AMERICA, INC.

Accelerator pedal stroke (A) 49.8 - 52.6 (1.96 - 2.07)
Accelerator pedal height 124.9 +10, -0 (4.92 +0.4, -0)

ARROW : Front
