Component Location

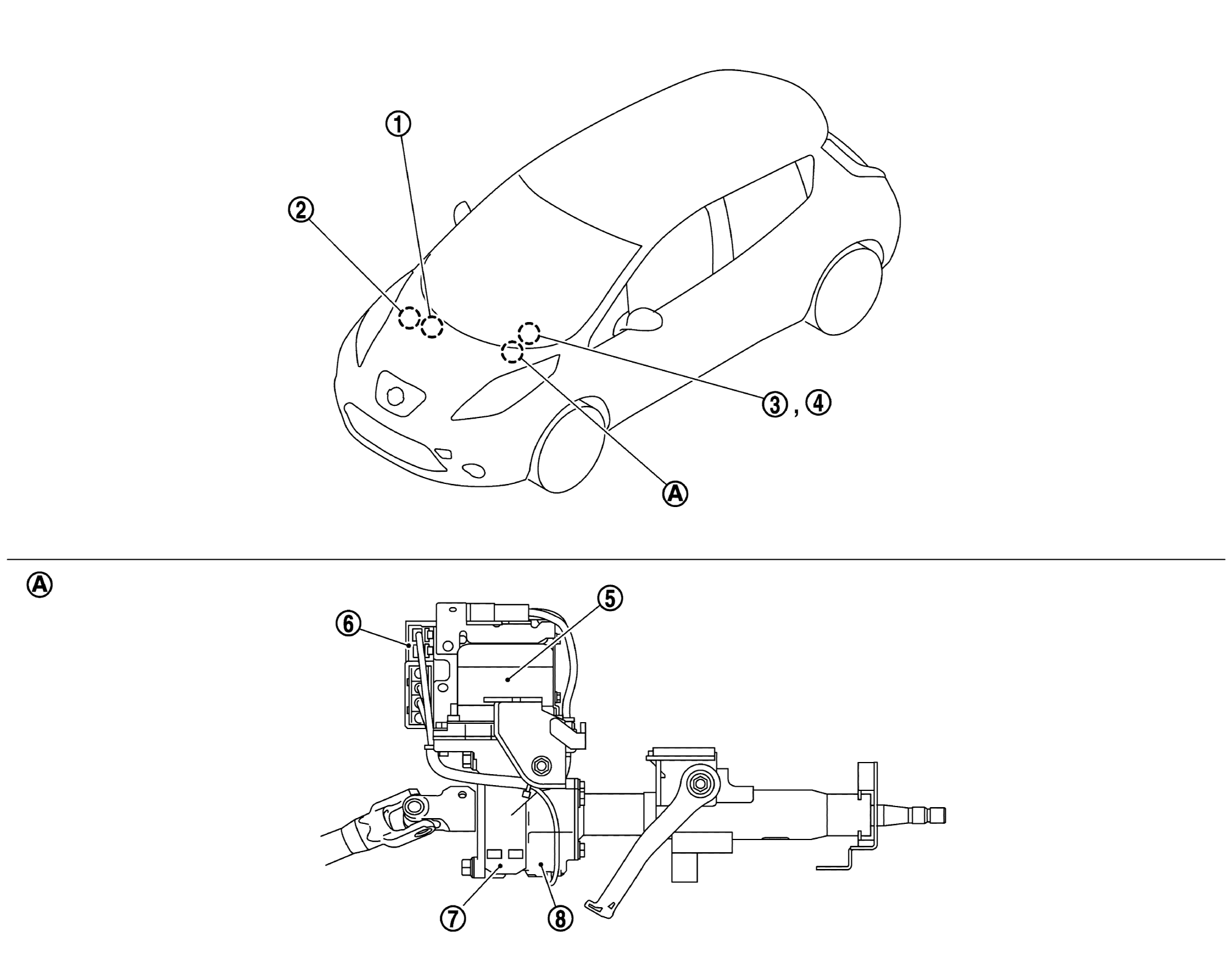

GNSJSGIA0847GB-847Courtesy of NISSAN NORTH AMERICA, INC.
A. Steering column assembly
No. Component Function
1. VCM (Vehicle Control Module)
  • Transmits mainly the following signals to EPS control unit via CAN communication.
    • Power steering start activation request signal

      Refer to COMPONENT LOCATION for detailed installation location.
2. ABS actuator and electric unit (control unit)
  • Transmits mainly the following signal to EPS control unit via CAN communication.
3. Combination meter
  • Transmits mainly the following signal to EPS control unit via CAN communication.
  • Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.
4. EPS warning lamp SYSTEM DESCRIPTION
5. EPS motor EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR
6. EPS control unit EPS CONTROL UNIT
7. Reduction gear EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR
8. Torque sensor EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR
