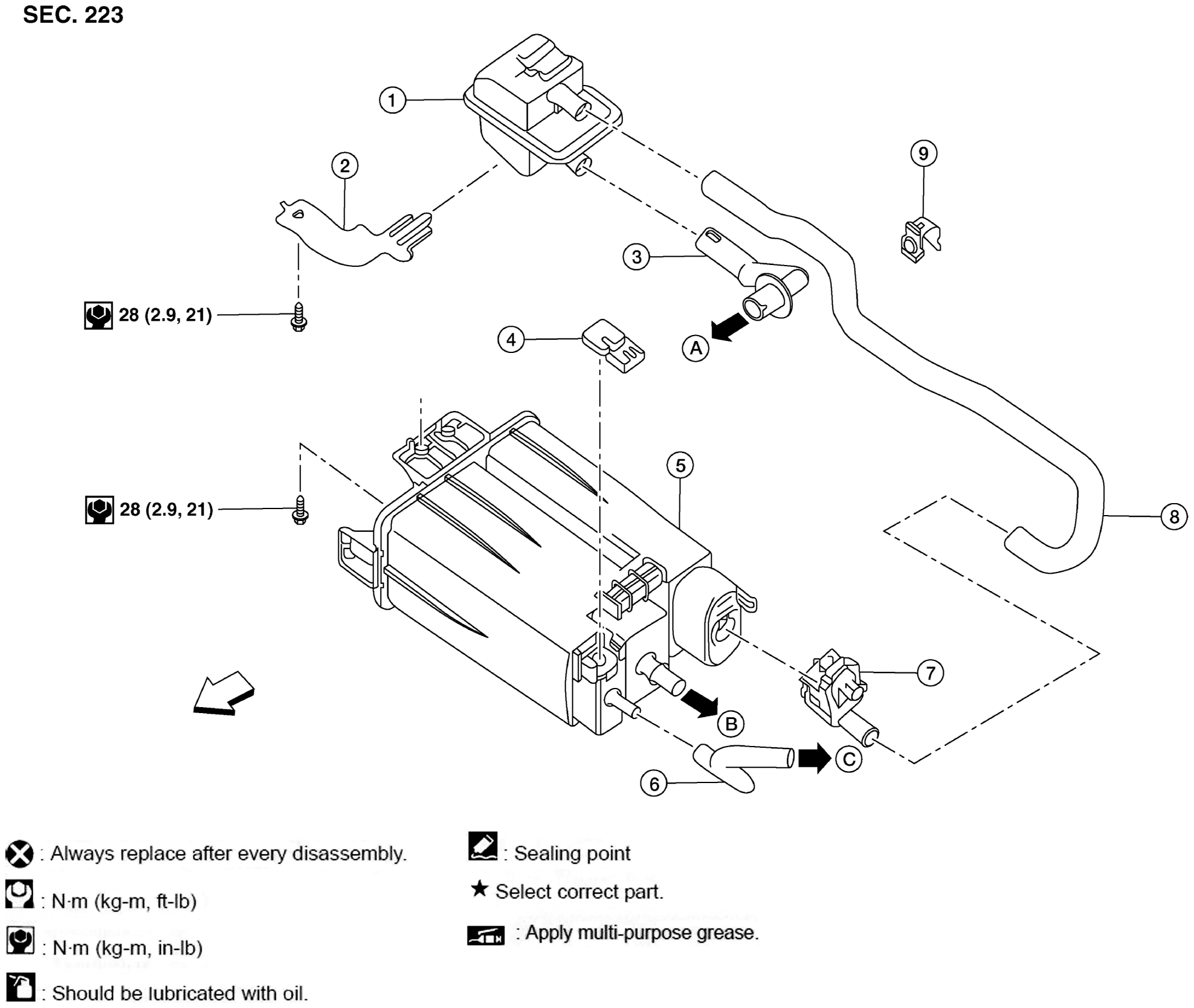

Exploded View
| 1. | EVAP canister filter | 2. | EVAP filter bracket | 3. | EVAP canister filter vent hose |
| 4. | EVAP control system pressure sensor (with O-ring) | 5. | EVAP canister | 6. | EVAP canister purge hose |
| 7. | EVAP canister vent control valve (with O-ring) | 8. | EVAP canister control valve hose | 9. | Clip |
| A. | To vehicle body | B. | To fuel tank | C. | To EVAP tube |
| Front |
