Component Location

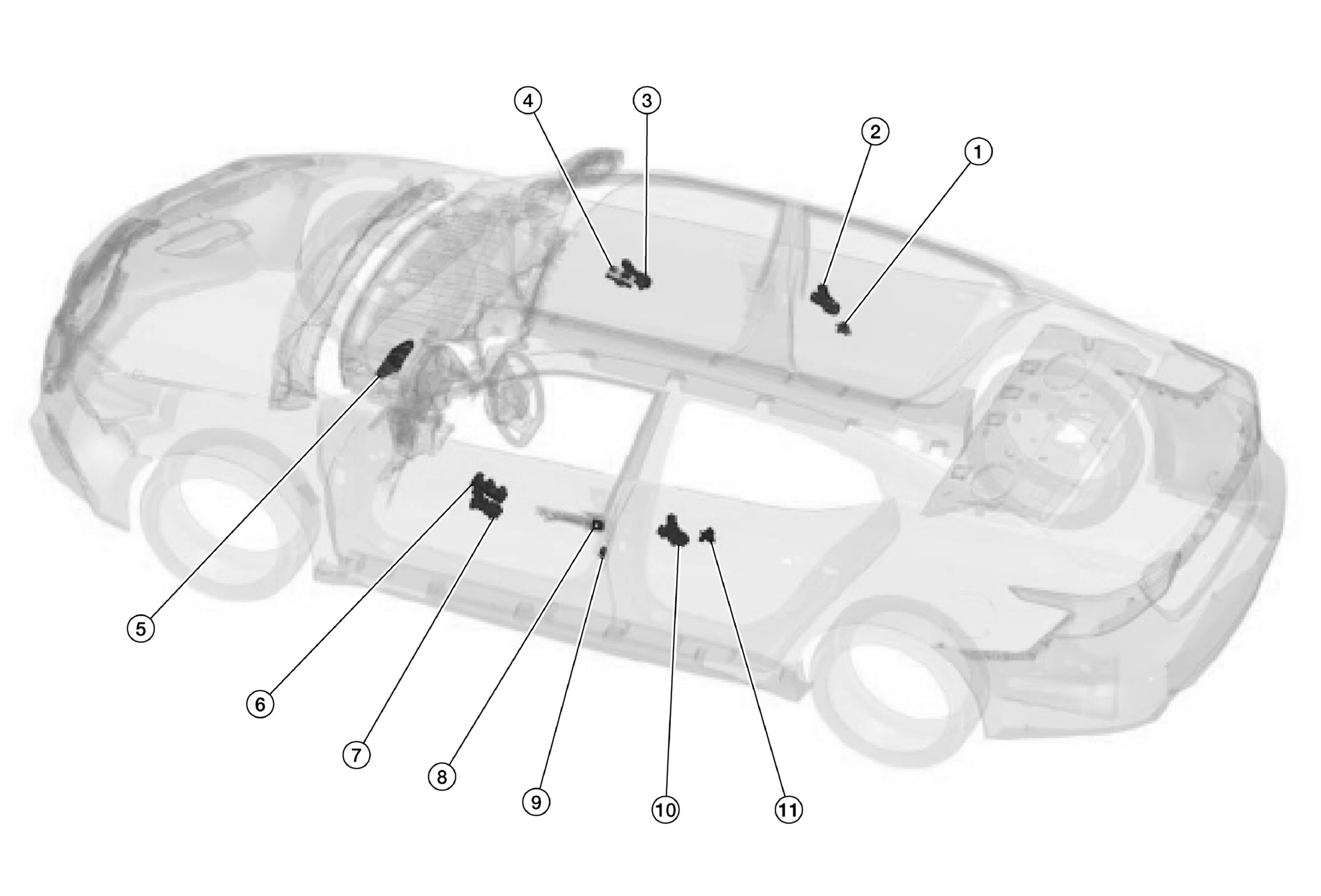

GNSALKIA3990ZZ-990Courtesy of NISSAN NORTH AMERICA, INC.
No. Part Function
1. Rear power window switch RH Refer to REAR POWER WINDOW SWITCH .
2. Rear power window motor RH Refer to POWER WINDOW MOTOR .
3. Front power window motor RH Refer to POWER WINDOW MOTOR .
4. Power window and door lock/unlock switch RH Refer to POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH .
5. BCM
  • Supplies power to the window switches.
  • Controls retained power.
  • Refer to COMPONENT LOCATION for detailed installation location.
6. Main power window and door lock/unlock switch Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
7. Front power window motor LH Refer to POWER WINDOW MOTOR .
8. Front door lock assembly LH (key cylinder switch) Transmits operation condition of door key cylinder switch to main power window and door lock/unlock switch.
9. Front door switch LH
  • Detects door open/close condition and transmits to BCM.
  • Refer to FRONT DOOR SWITCH .
10. Rear power window motor LH Refer to POWER WINDOW MOTOR .
11. Rear power window switch LH Refer to REAR POWER WINDOW SWITCH .
