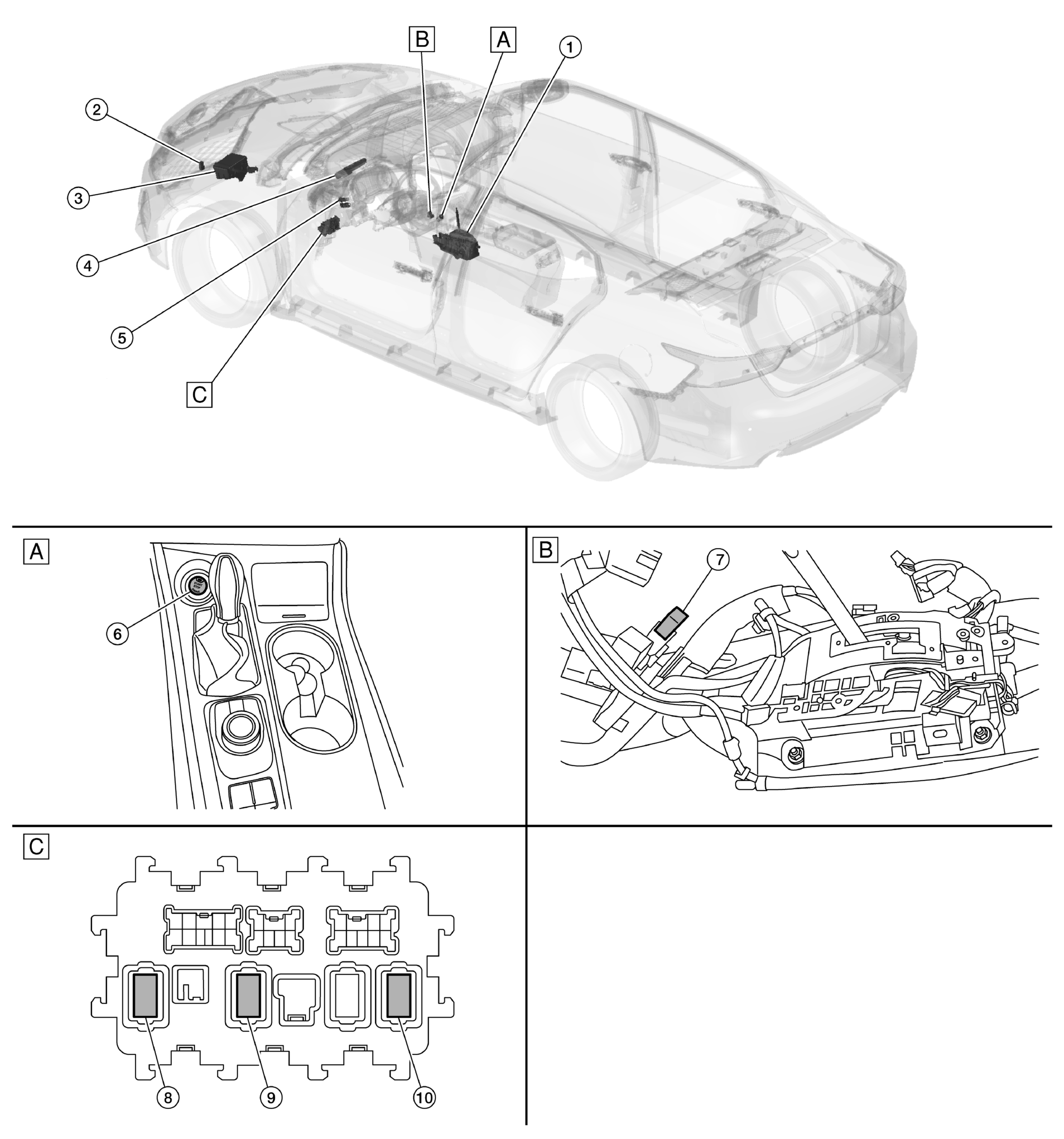

| 1. |
CVT shift selector |
CVT shift selector detects shift lever status, transmits detention switch signal to BCM.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 2. |
Stop lamp relay |
Refer to COMPONENT LOCATION
(LED headlamp) or COMPONENT LOCATION
(halogen headlamp). |
| 3. |
IPDM E/R |
- IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM.
- IPDM E/R receives ignition relay (IPDM E/R) control signal and ignition switch ON signal (CAN) from BCM, and controls ignition relay (built in IPDM E/R)
Refer to COMPONENT LOCATION
for detailed installation location. |
| 4. |
BCM |
- BCM controls power distribution system.
- BCM judges ignition switch position by push-button ignition switch (push switch) and vehicle condition.
- BCM checks the ignition switch position internally.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 5. |
Stop lamp switch |
Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM.
Refer to STOP LAMP SWITCH
(without ICC) or STOP LAMP SWITCH
(with ICC). |
| 6. |
Push-button ignition switch |
Refer to PUSH-BUTTON IGNITION SWITCH . |
| 7. |
Accessory relay-2 |
- Accessory relay-2 is controlled by BCM.
- Accessory relay-2 supplies accessory power supply or ignition ON signal to each ECU when ignition is turned ON.
- BCM compares status of accessory relay-2 control signal, and ignition position judged by BCM.
|
| 8. |
Ignition relay-2 (in fuse block) |
- Ignition relay-2 is controlled by BCM.
- Ignition relay-2 supplies ignition ON power supply or ignition ON signal to each ECU and system when ignition is turned ON.
- BCM compares status of ignition relay-2 control signal and ignition position judged by BCM.
- BCM monitors ignition relay-2 operating status by ignition relay-2 feedback signal.
|
| 9. |
Front blower motor relay (in fuse block) |
- Front blower motor relay is controlled by BCM.
- Front blower motor supplies ignition ON power supply or ignition ON signal to air conditioning system when ignition is turned ON.
- BCM compares status of front blower motor relay control signal and ignition position judged by BCM.
|
| 10. |
Accessory relay-1 (in fuse block) |
- Accessory relay-1 is controlled by BCM.
- Accessory relay-1 supplies accessory power supply or ignition ON signal to each ECU when ignition is turned ON.
- BCM compares status of accessory relay-1 control signal, and ignition position judged by BCM.
|
