Component Location

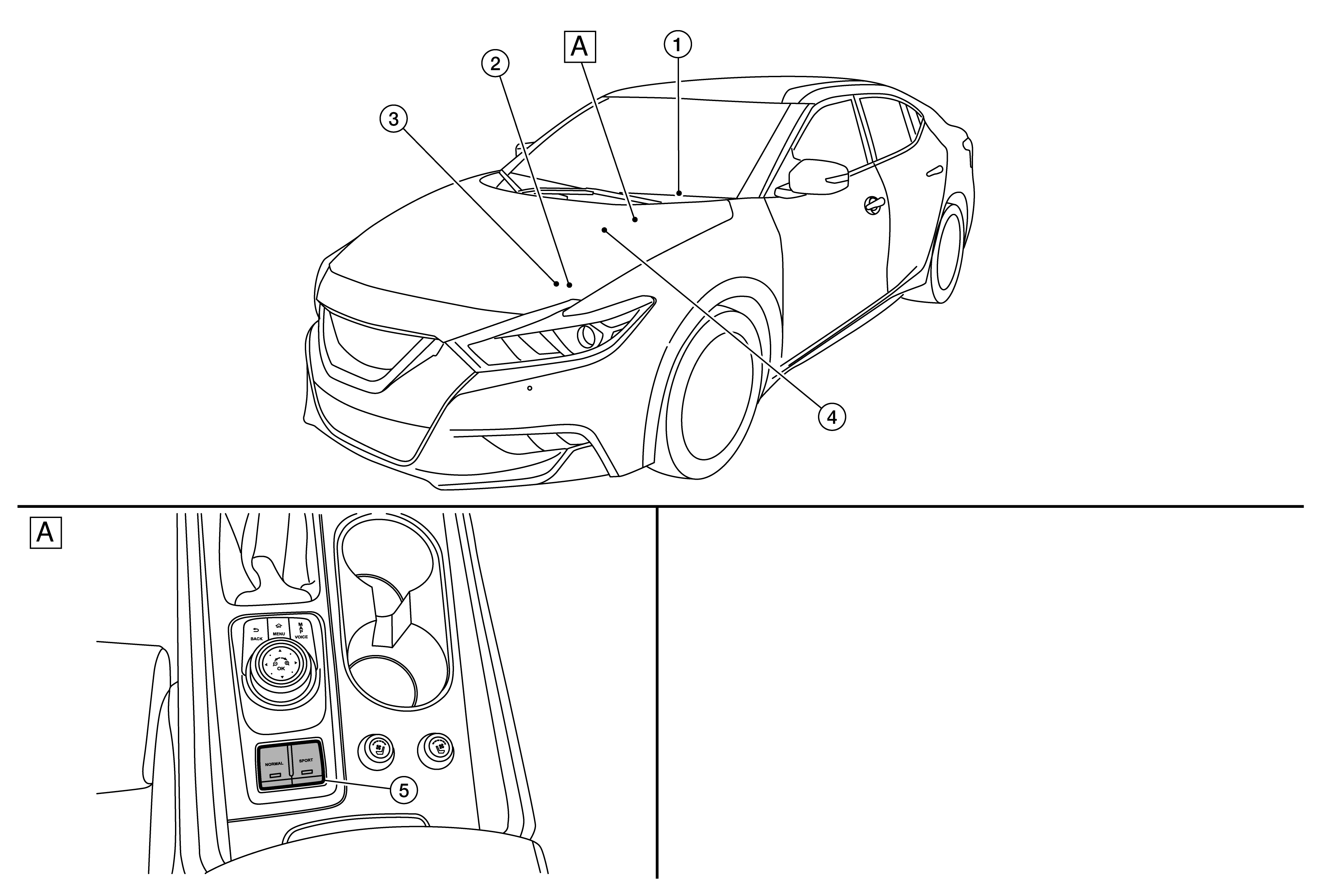

GNSDB124144Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Center console finisher
No. Component Function
WHITE-1 Combination meter The combination meter receives the drive mode indicator signal via CAN communications from the TCM.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 TCM
  • The TCM receives the drive mode selector signal via CAN communications from the A/C auto amp.
  • The TCM transmits the drive mode indicator signal via CAN communications to the combination meter.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-3 ECM The ECM receives the drive mode signal via CAN communications from the TCM.
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-4 A/C auto amp. The combination meter transmits the drive mode selector signal via CAN communications to the TCM.
WHITE-5 Drive mode selector Refer to DRIVE MODE SELECTOR .
