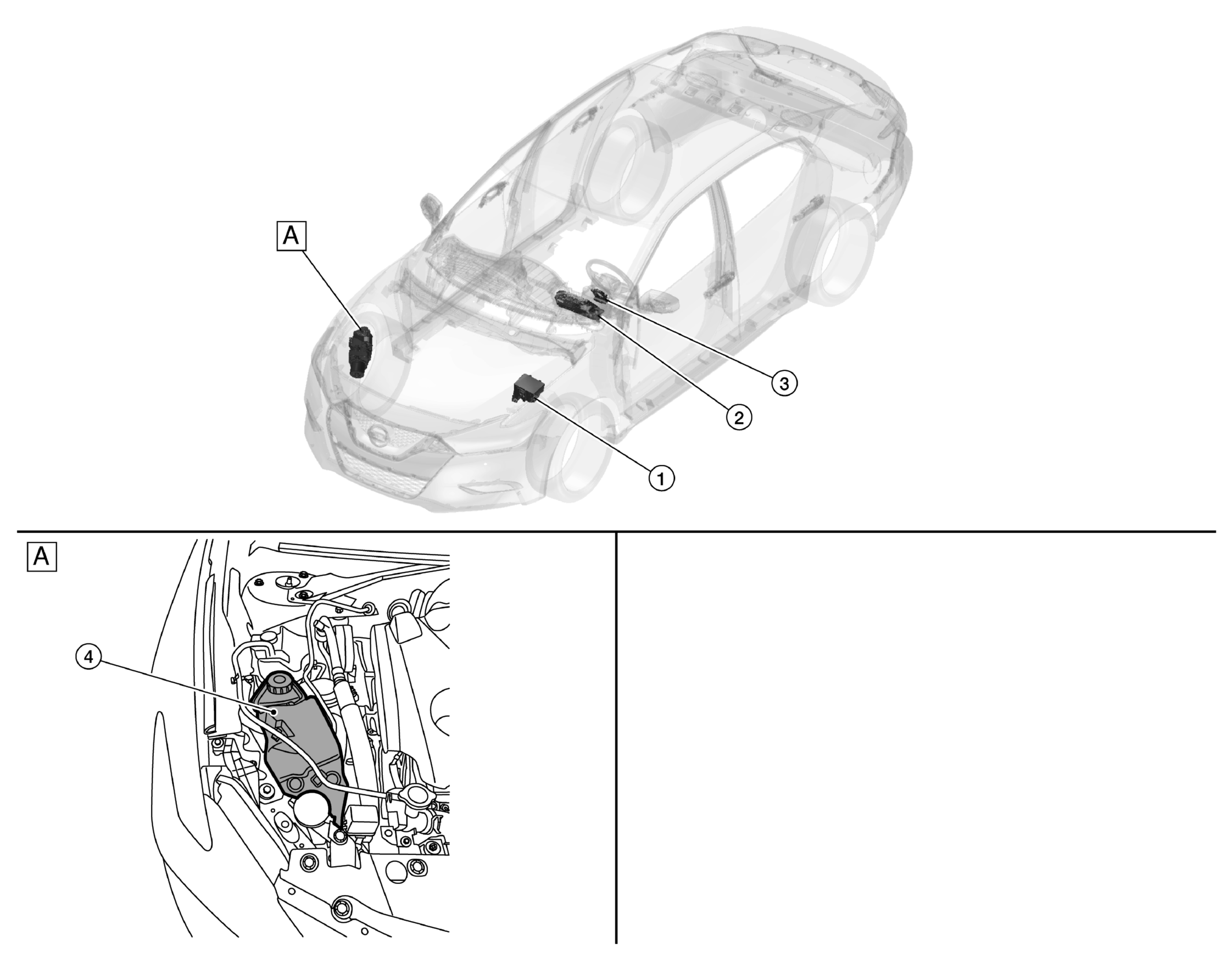

| 1. |
IPDM E/R |
Transmits mainly the following signal to power steering control module via CAN communication:
|
| 2. |
Combination meter |
Transmits mainly the following signal to power steering control module via CAN communication:
|
| The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module. |
| 3. |
Steering angle sensor |
Transmits mainly the following signal to power steering control module via CAN communication:
- Steering angle sensor signal
|
| 4. |
Power steering oil pump assembly |
Reservoir tank |
POWER STEERING OIL PUMP ASSEMBLY |
| Power steering oil pump |
| Power steering motor |
| Power steering control module |
