Component Location

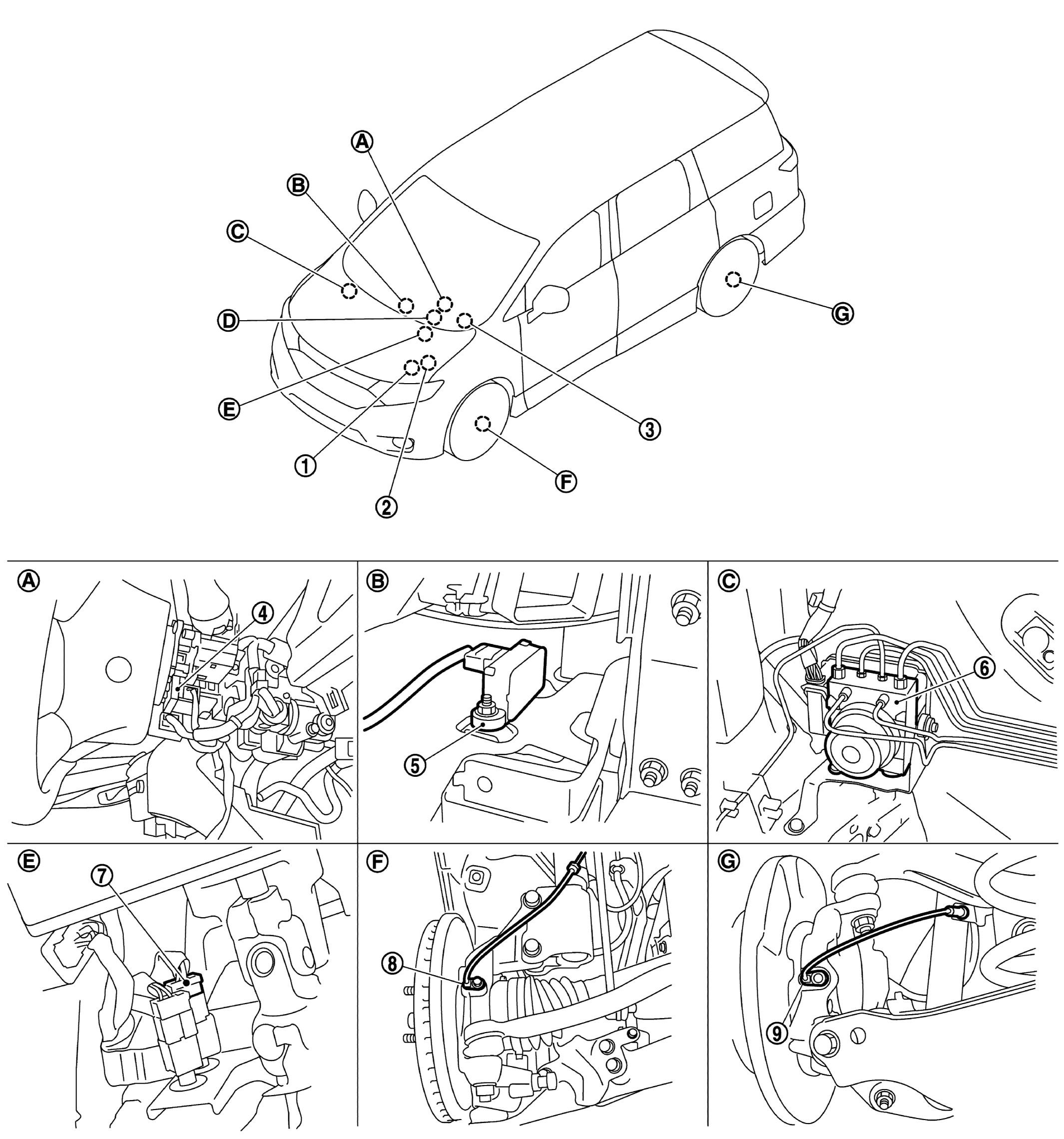

GNSJSFIA0965ZZ-965Courtesy of NISSAN NORTH AMERICA, INC.
A. Back of spiral cable assembly B. Inside instrument stay cover C. Inside engine room (RH side)
D. ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp (in combination meter) E. Brake pedal F. Steering knuckle
G. Rear axle housing
No. Components Function
1. TCM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Shift position signal
  • Current gear position signal
  • P range signal
  • R range signal
  • N range signal
2. ECM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Accelerator pedal position signal
  • Engine speed signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.
  • Target throttle position signal
3. VDC OFF switch VDC OFF SWITCH
4. Steering angle sensor STEERING ANGLE SENSOR
5. Yaw rate/side G sensor YAW RATE/SIDE G SENSOR
6. ABS actuator and electric unit (control unit) ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
7. Stop lamp switch STOP LAMP SWITCH
8. Front wheel sensor WHEEL SENSOR AND SENSOR ROTOR
9. Rear wheel sensor
