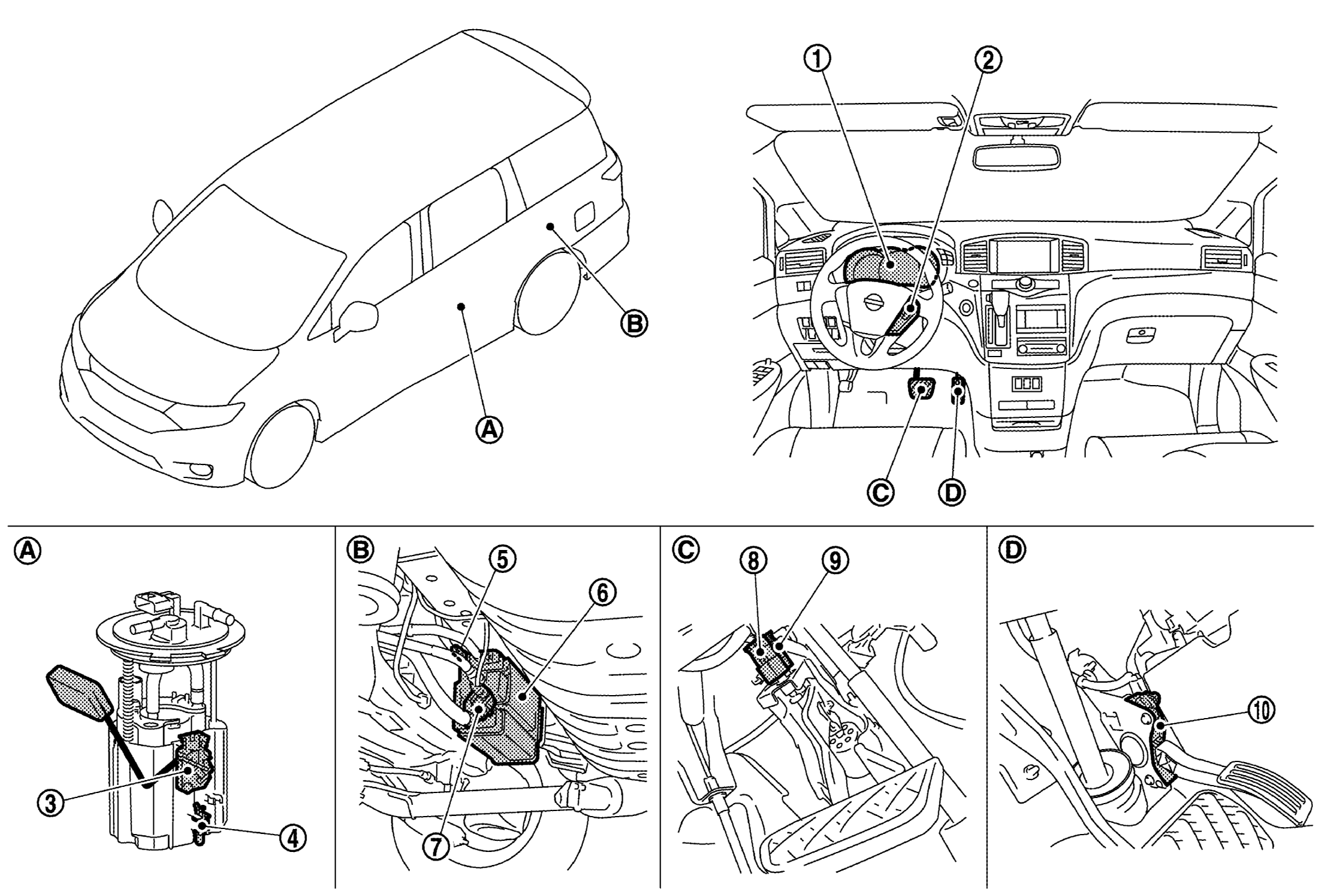

Component Location: Body
| A. | Fuel tank top center | B. | Rear suspension member periphery | C. | Pedal periphery |
| D. | Pedal periphery | ||||
| No. | Component | Function | |
|---|---|---|---|
| 1. | Combination meter | Malfunction indicator lamp (MIL) | MALFUNCTION INDICATOR LAMP (MIL) |
| Information display | The operation mode of the ASCD is indicated on the information display in the combination meter. ECM transmits the status signal to the combination meter via CAN communication according to ASCD operation. |
||
| 2. | ASCD steering switch | ASCD STEERING SWITCH | |
| 3. | Fuel level sensor unit and fuel pump | FUEL LEVEL SENSOR UNIT AND FUEL PUMP Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS for detailed installation location. |
|
| 4. | Fuel tank temperature sensor | FUEL TANK TEMPERATURE SENSOR | |
| 5. | EVAP canister vent control valve | EVAP CANISTER VENT CONTROL VALVE | |
| 6. | EVAP canister | EVAP CANISTER VENT CONTROL VALVE | |
| 7. | EVAP control system pressure sensor | EVAP CONTROL SYSTEM PRESSURE SENSOR | |
| 8. | Brake pedal position switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| 9. | Stop lamp switch | ||
| 10. | Accelerator pedal position sensor | ACCELERATOR PEDAL POSITION SENSOR | |
