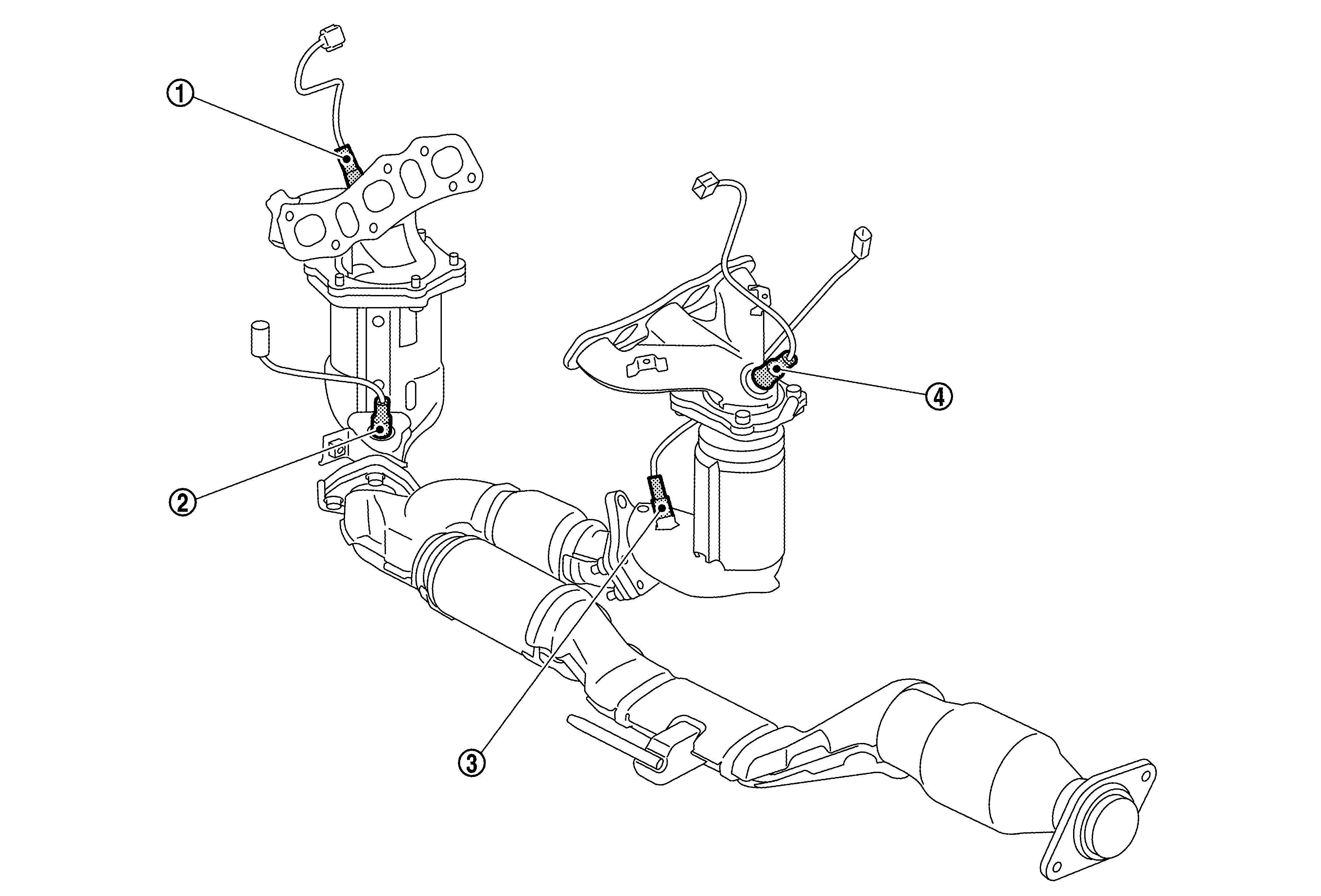

Component Location: Exhaust
| No. | Component | Function |
|---|---|---|
| 1. | Air fuel ratio (A/F) sensor 1 (bank 2) | AIR FUEL RATIO (A/F) SENSOR 1 |
| 2. | Heated oxygen sensor 2 (bank 2) | HEATED OXYGEN SENSOR 2 |
| 3. | Heated oxygen sensor 2 (bank 1) | HEATED OXYGEN SENSOR 2 |
| 4. | Air fuel ratio (A/F) sensor 1 (bank 1) | AIR FUEL RATIO (A/F) SENSOR 1 |
