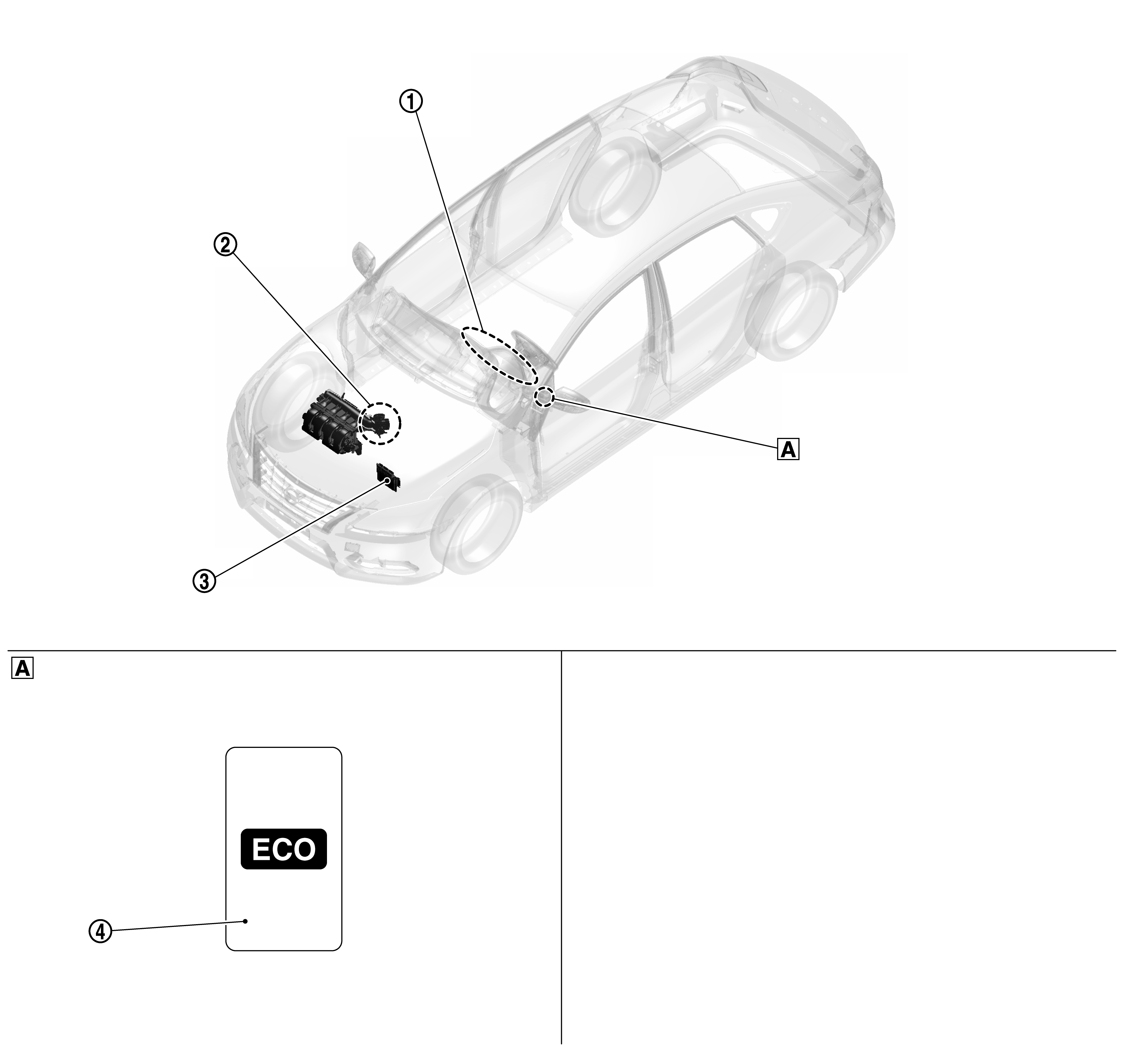

Component Location

GNSJSOIA0682ZZ-682Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Instrument lower finisher
No. Component Function
WHITE-1 ECO mode indicator lamp ECO MODE INDICATOR LAMP
WHITE-2 Electric throttle control actuator ELECTRIC THROTTLE CONTROL ACTUATOR
WHITE-3 ECM ECM
WHITE-4 ECO mode switch ECO MODE SWITCH
