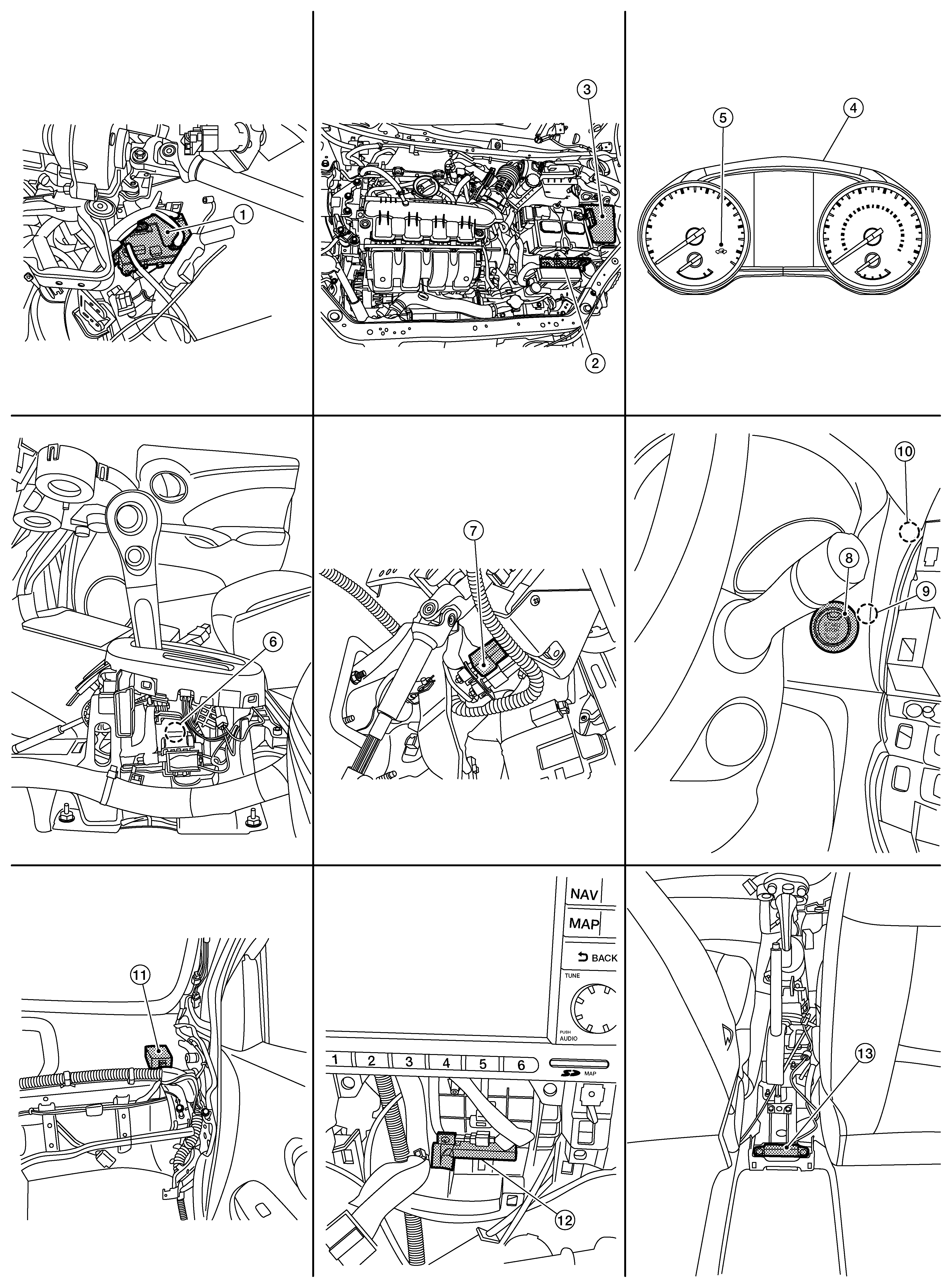

| 1. |
BCM (view with instrument panel removed) |
2. |
ECM |
3. |
IPDM E/R |
| 4. |
Combination meter |
5. |
Security indicator lamp |
6. |
CVT shift selector (park position switch) (view with center console removed) |
| 7. |
Stop lamp switch |
8. |
Push-button ignition switch |
9. |
NATS antenna amp. |
| 10. |
Dongle unit (Canada only) |
11. |
Remote keyless entry receiver (view with instrument panel removed) |
12. |
Inside key antenna (instrument center) |
| 13. |
Inside key antenna (console) (view with center console removed) |

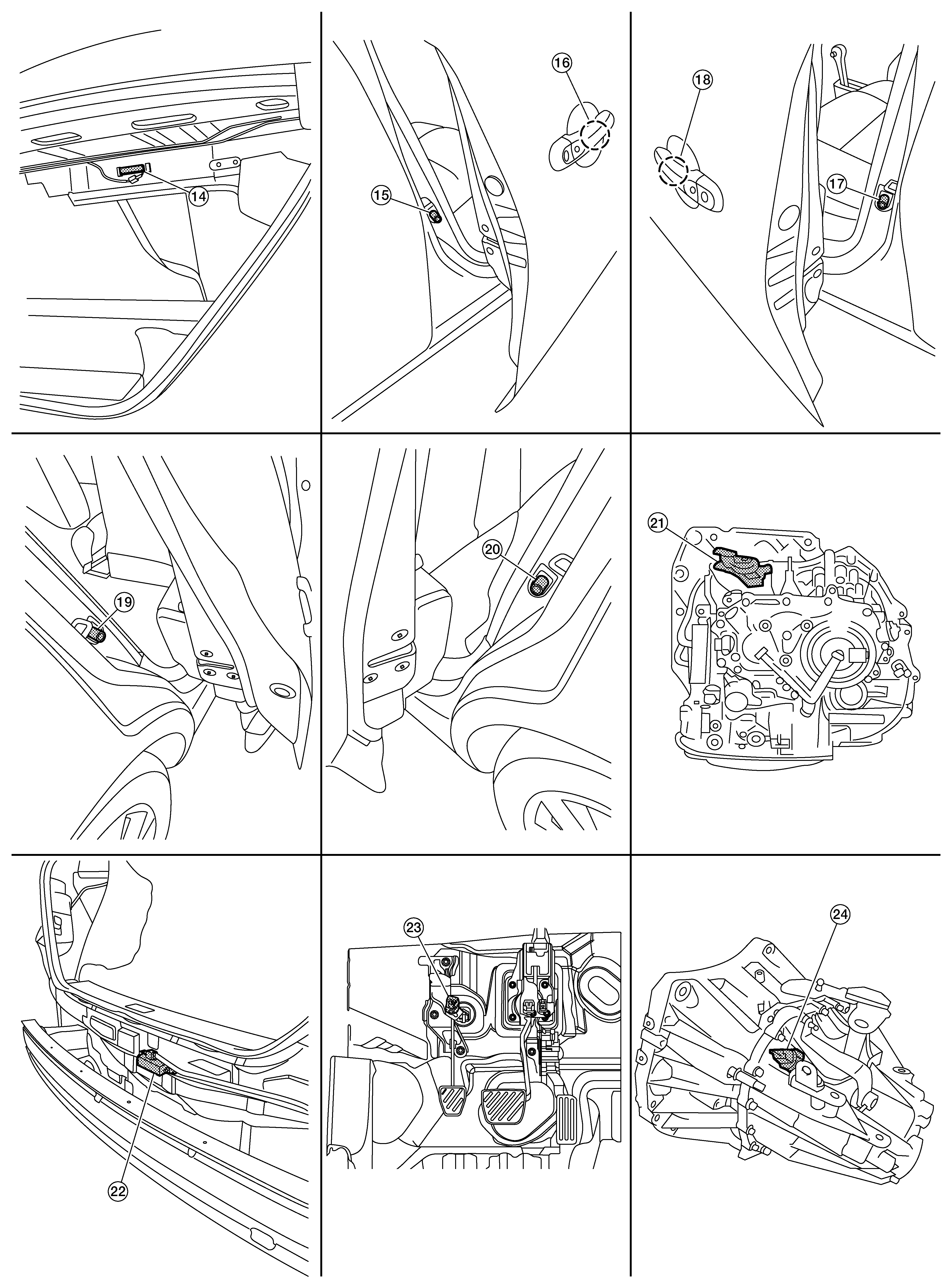

14. |
Inside key antenna (trunk room) |
15. |
Front door switch RH |
| 16. |
Outside key antenna (passenger side) |
17. |
Front door switch LH |
18. |
Outside key antenna (driver side) |
| 19. |
Rear door switch RH |
20. |
Rear door switch LH |
21. |
Transmission range switch (CVT) |
| 22. |
Outside key antenna (rear bumper) |
23. |
Clutch interlock switch (M/T) |
24. |
Park/neutral position (PNP) switch (neutral switch) (M/T) |
