Component Location

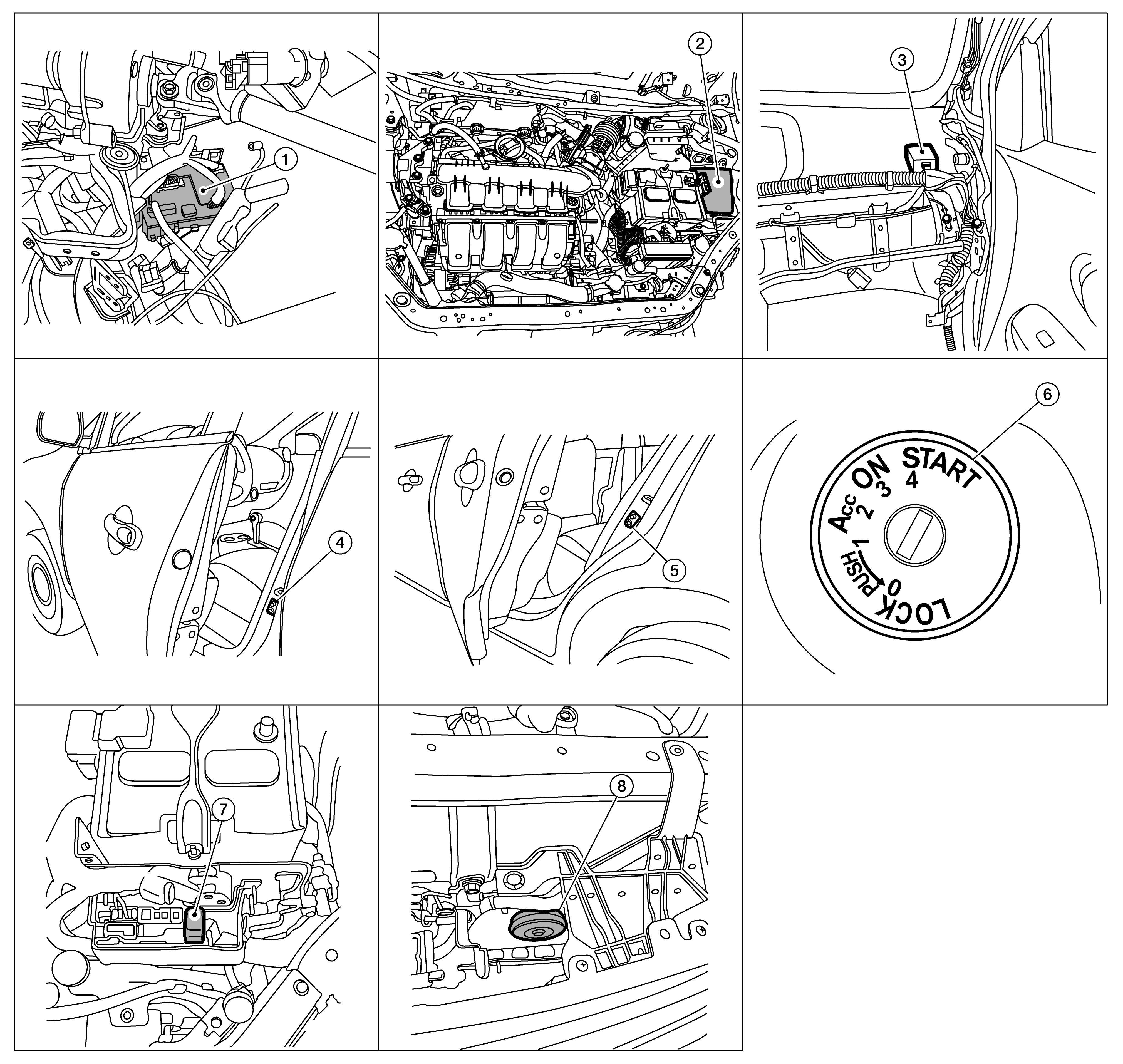

GNSALKIA2953ZZ-953Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM
(view with instrument panel removed)		 2. IPDM E/R 3. Remote keyless entry receiver
(view with instrument panel removed)
4. Front door switch LH
(RH similar)		 5. Rear door switch LH
(RH similar)		 6. Key switch
7. Horn relay 8. Horn
