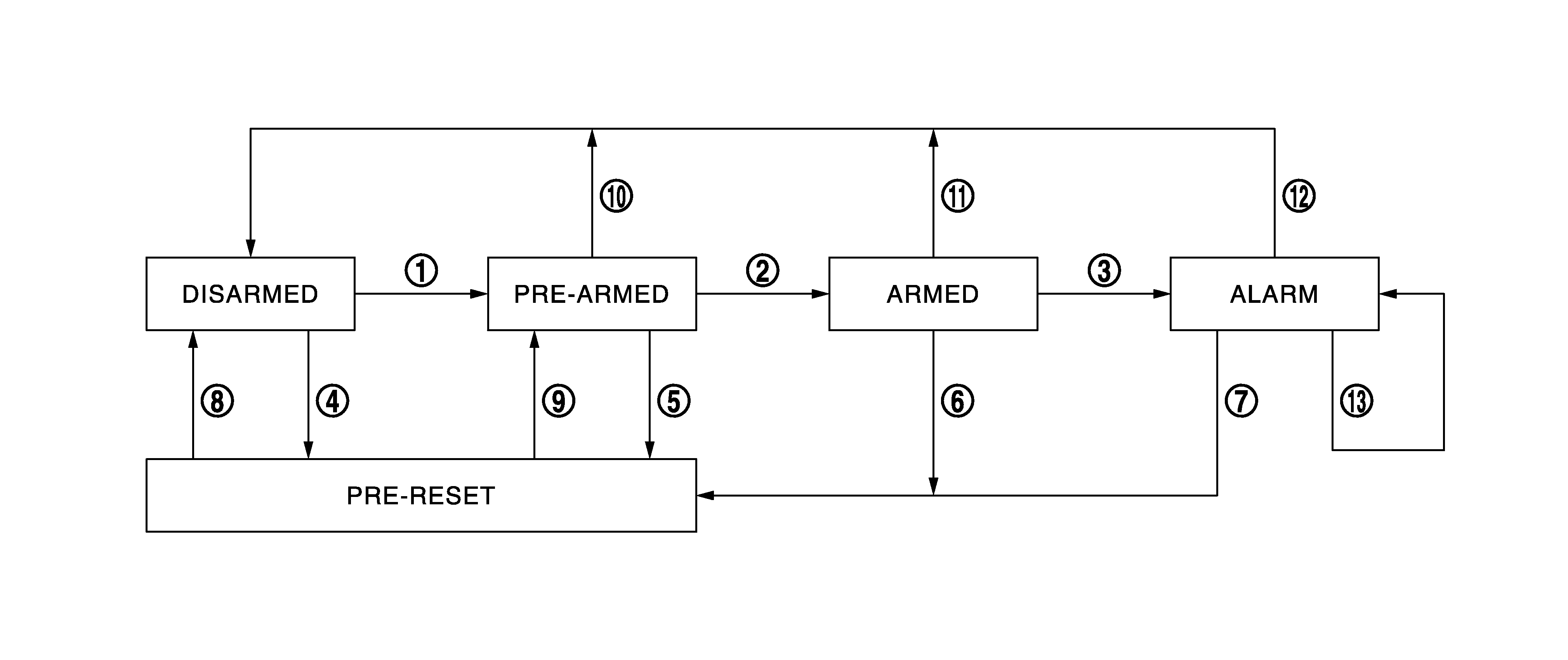

Operation Flow

Courtesy of NISSAN NORTH AMERICA, INC.

No.	System state	Switching condition
1	DISARMED to PRE-ARMED	When all conditions of A and one condition of B is satisfied.	A	B
1	DISARMED to PRE-ARMED		Ignition switch: OFF All doors: Closed	All doors are locked by: Door key cylinder LOCK switch LOCK button of Keyfob Door lock and unlock switch
2	PRE-ARMED to ARMED	When all of the following conditions are satisfied for 30 seconds.	Ignition switch: OFF All doors: Locked
3	ARMED to ALARM	When all conditions of A and B are satisfied.	A	B
3	ARMED to ALARM	When all conditions of A and B are satisfied.	Keyfob: Not used	Any door: Open
4	DISARMED to PRE-RESET	No conditions.
5	PRE-ARMED to PRE-RESET
6	ARMED to PRE-RESET
7	ALARM to PRE-RESET
8	PRE-RESET to DISARMED
9	PRE-RESET to PRE-ARMED
10	PRE-ARMED to DISARMED	When one of the following condition is satisfied.	Ignition switch: ACC/ON Door key cylinder UNLOCK switch: ON UNLOCK button of Keyfob: ON UNLOCK switch of door lock and unlock switch: ON Any door: Open
11	ARMED to DISARMED	When one of the following condition is satisfied.	Ignition switch: ACC/ON Door key cylinder UNLOCK switch: ON UNLOCK button of Keyfob: ON
12	ALARM to DISARMED	When one of the following condition is satisfied.
13	RE-ALARM	When the following condition is satisfied after the ALARM operation is finished.	Any door: Open

NOTE:

BCM ignores the door key cylinder UNLOCK switch signal input for 1 second after the door key cylinder LOCK switch signal input.
To lock/unlock all doors by operating remote controller button of Keyfob, the Keyfob must be within the detection area of remote keyless entry receiver. For details, refer to SYSTEM DESCRIPTION .
