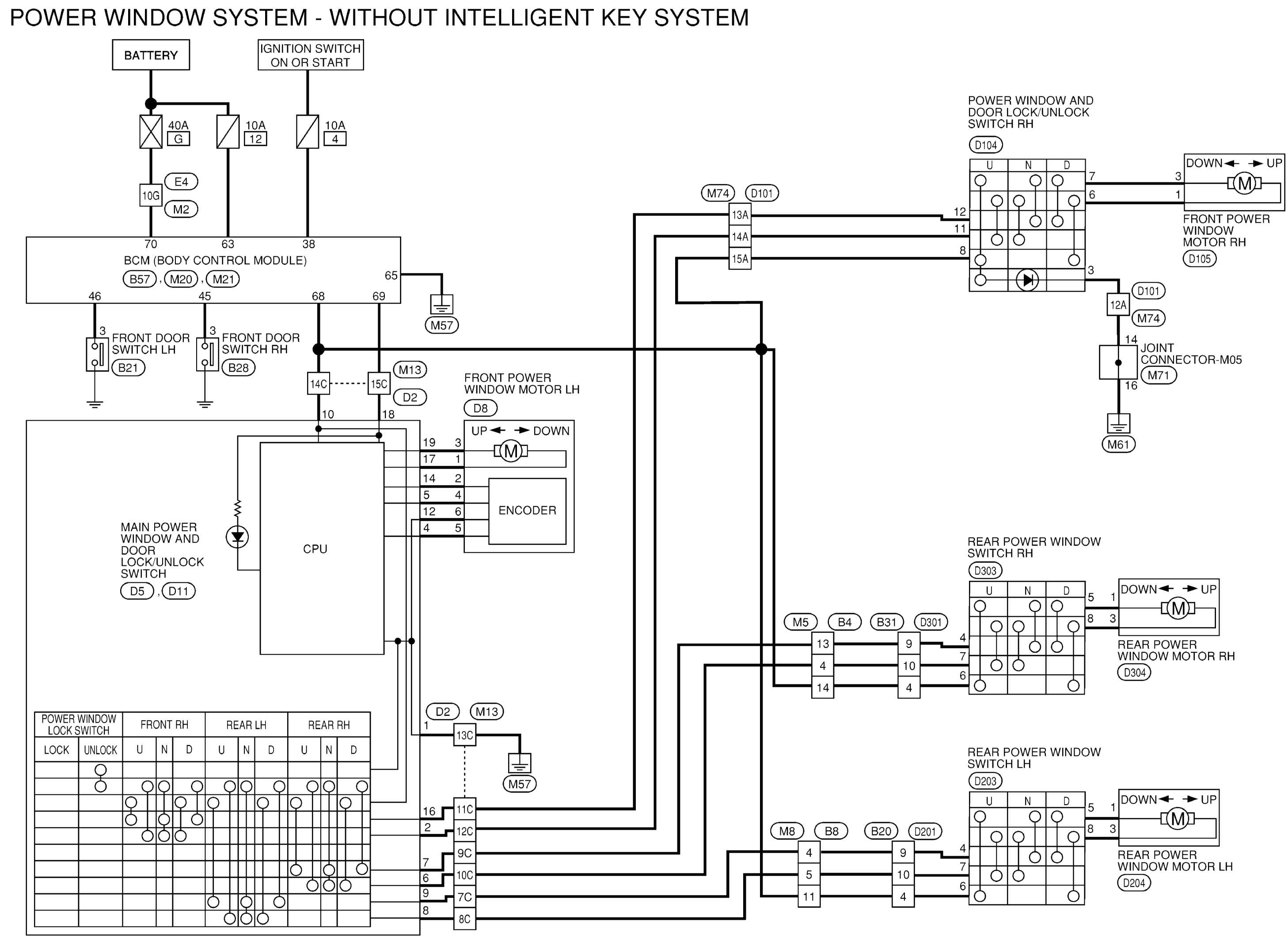

Wiring Diagram - Without Intelligent Key System

GNSAAKWA1648GB-648

Courtesy of NISSAN NORTH AMERICA, INC.

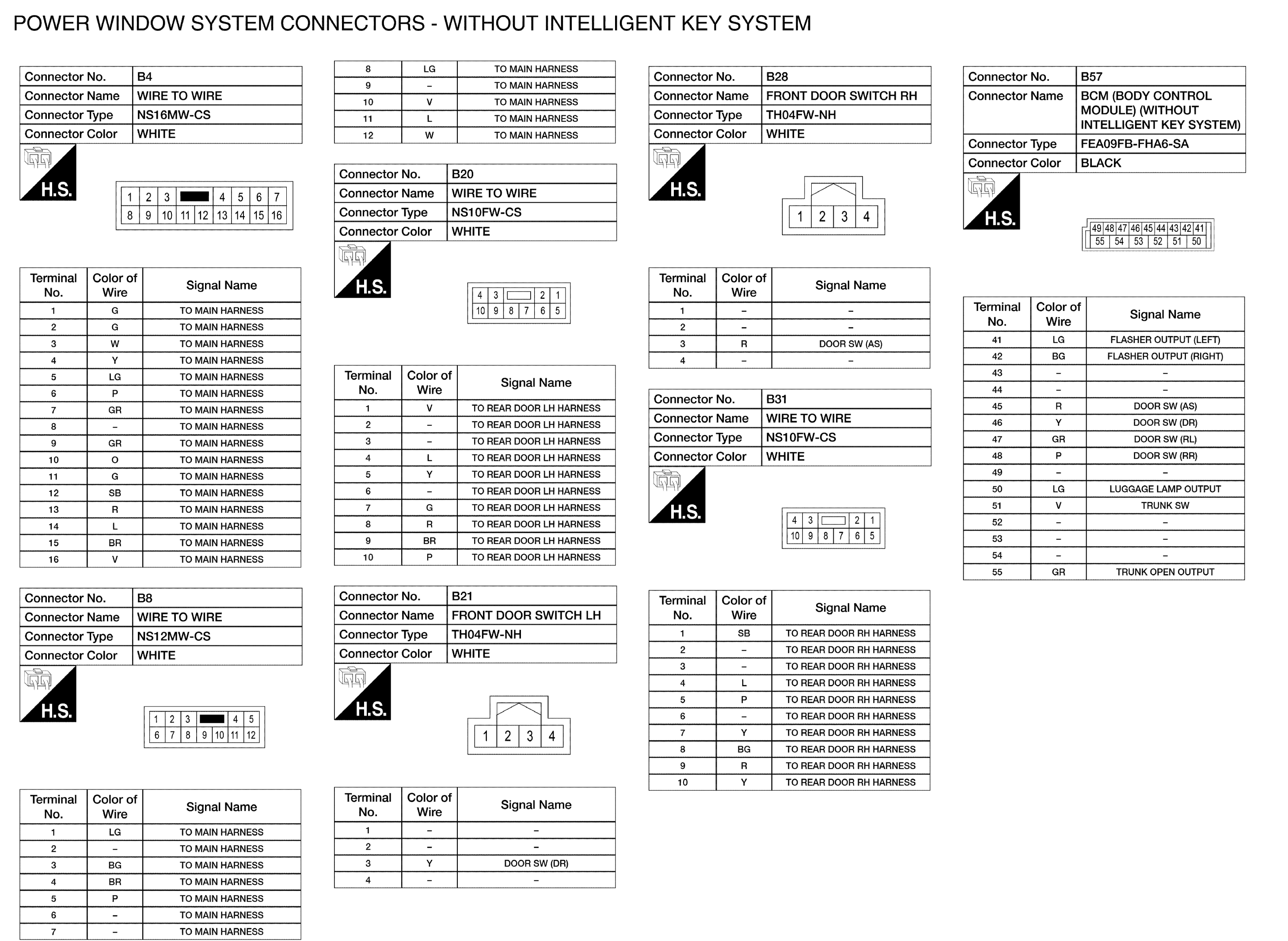

GNSAAKIA4555GB-555

Courtesy of NISSAN NORTH AMERICA, INC.

GNSAAKIA4556GB-556

Courtesy of NISSAN NORTH AMERICA, INC.

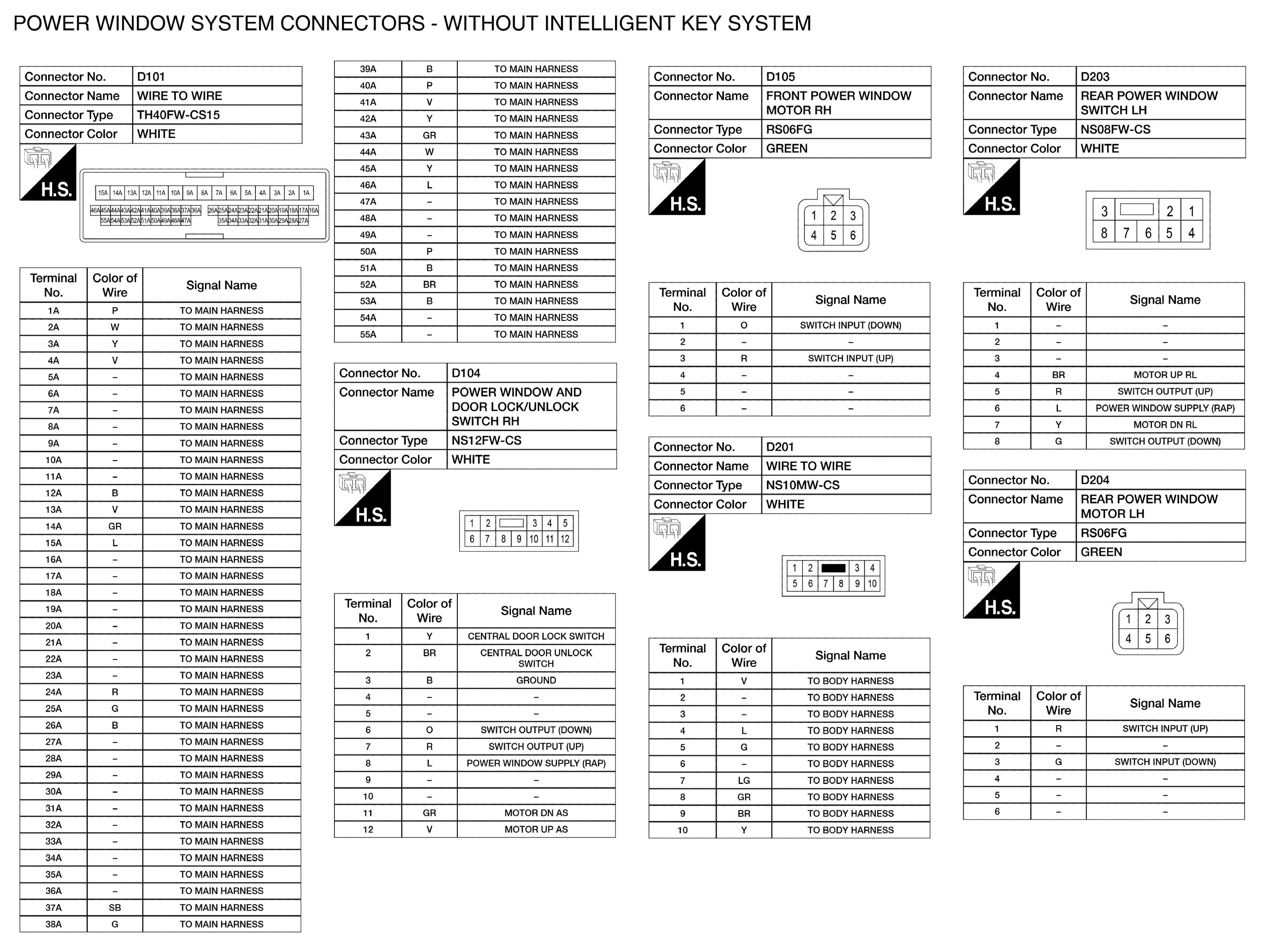

GNSAAKIA4557GB-557

Courtesy of NISSAN NORTH AMERICA, INC.

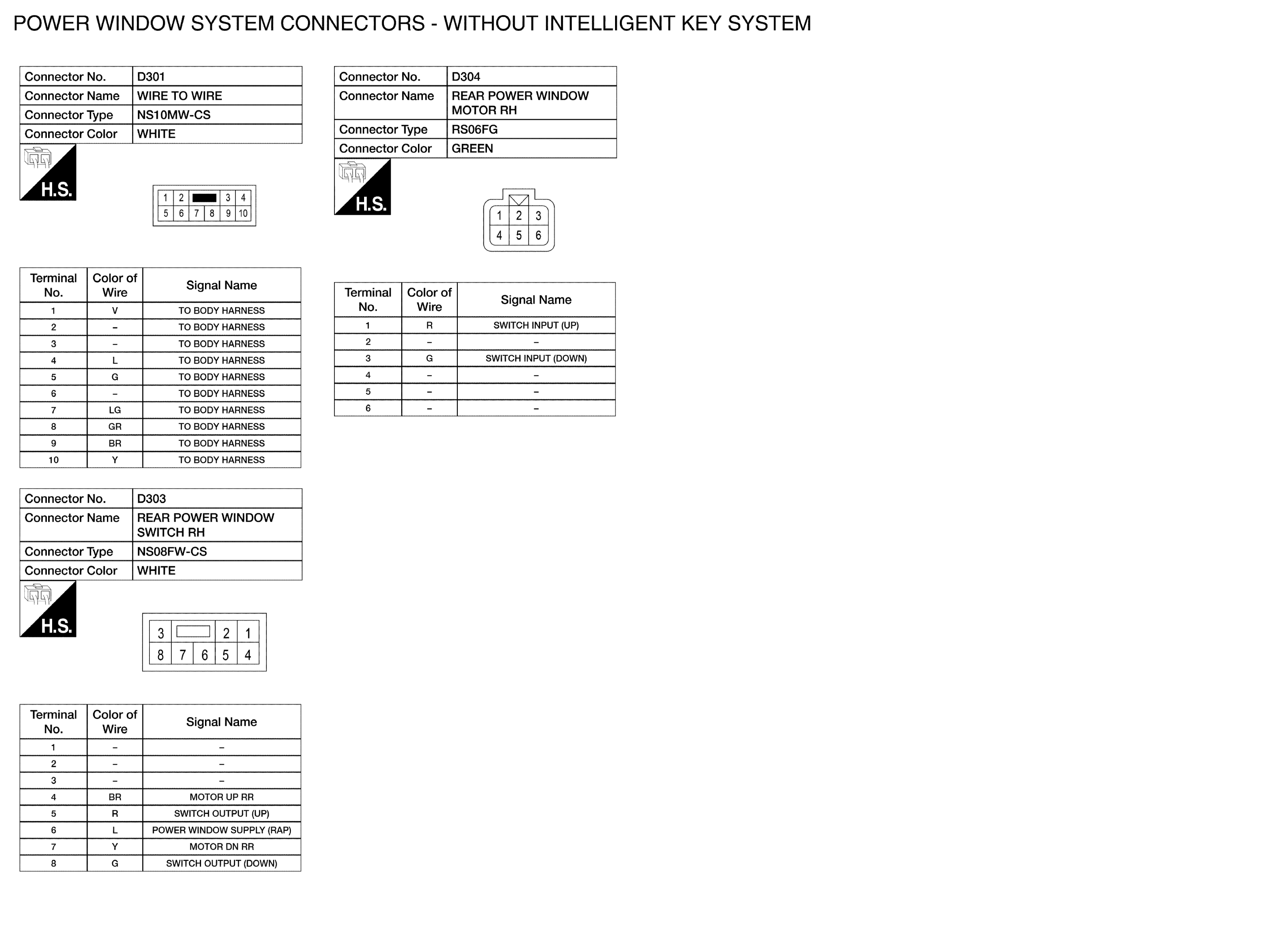

GNSAAKIA4558GB-558

Courtesy of NISSAN NORTH AMERICA, INC.

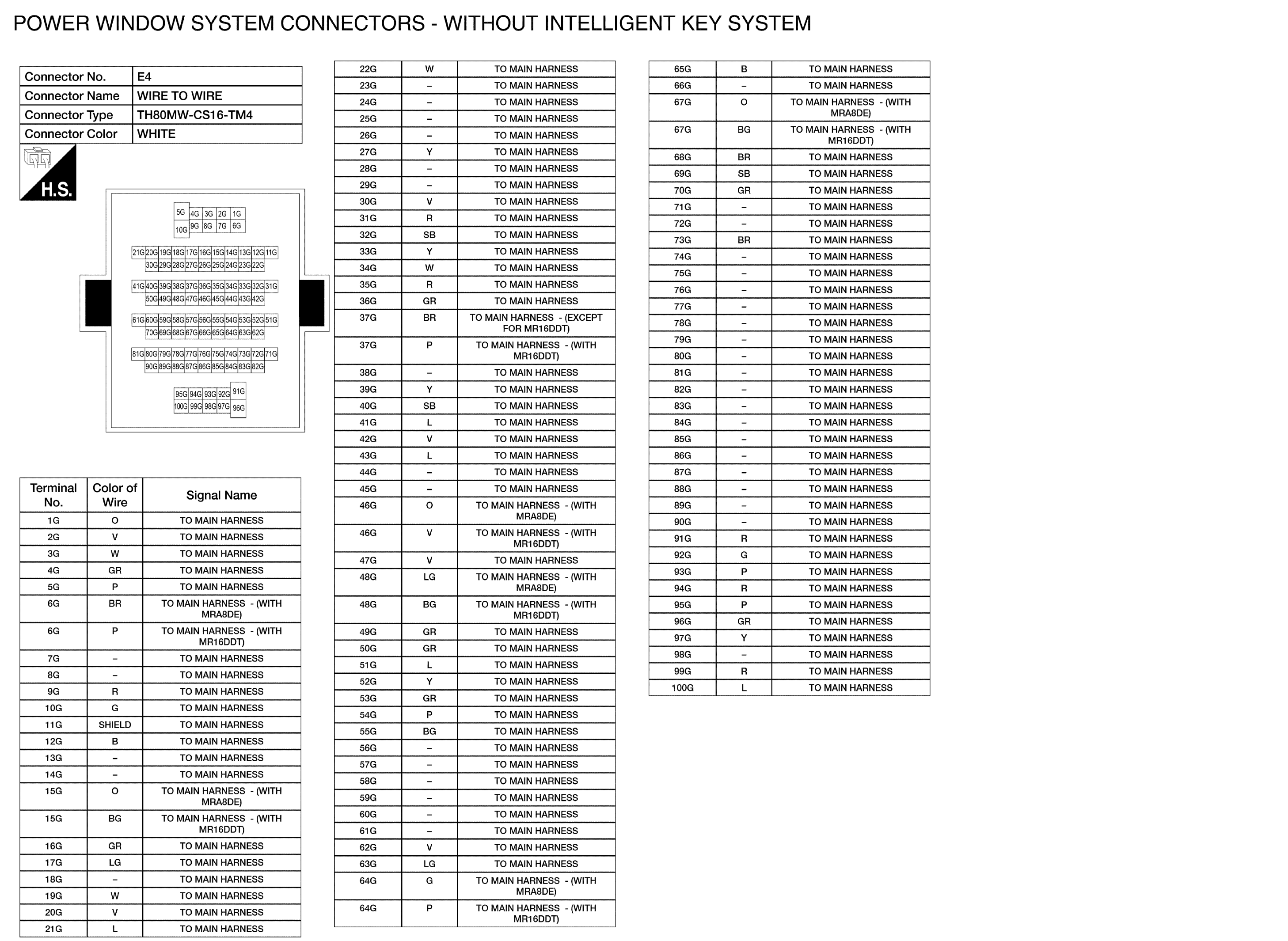

GNSAAKIA4559GB-559

Courtesy of NISSAN NORTH AMERICA, INC.

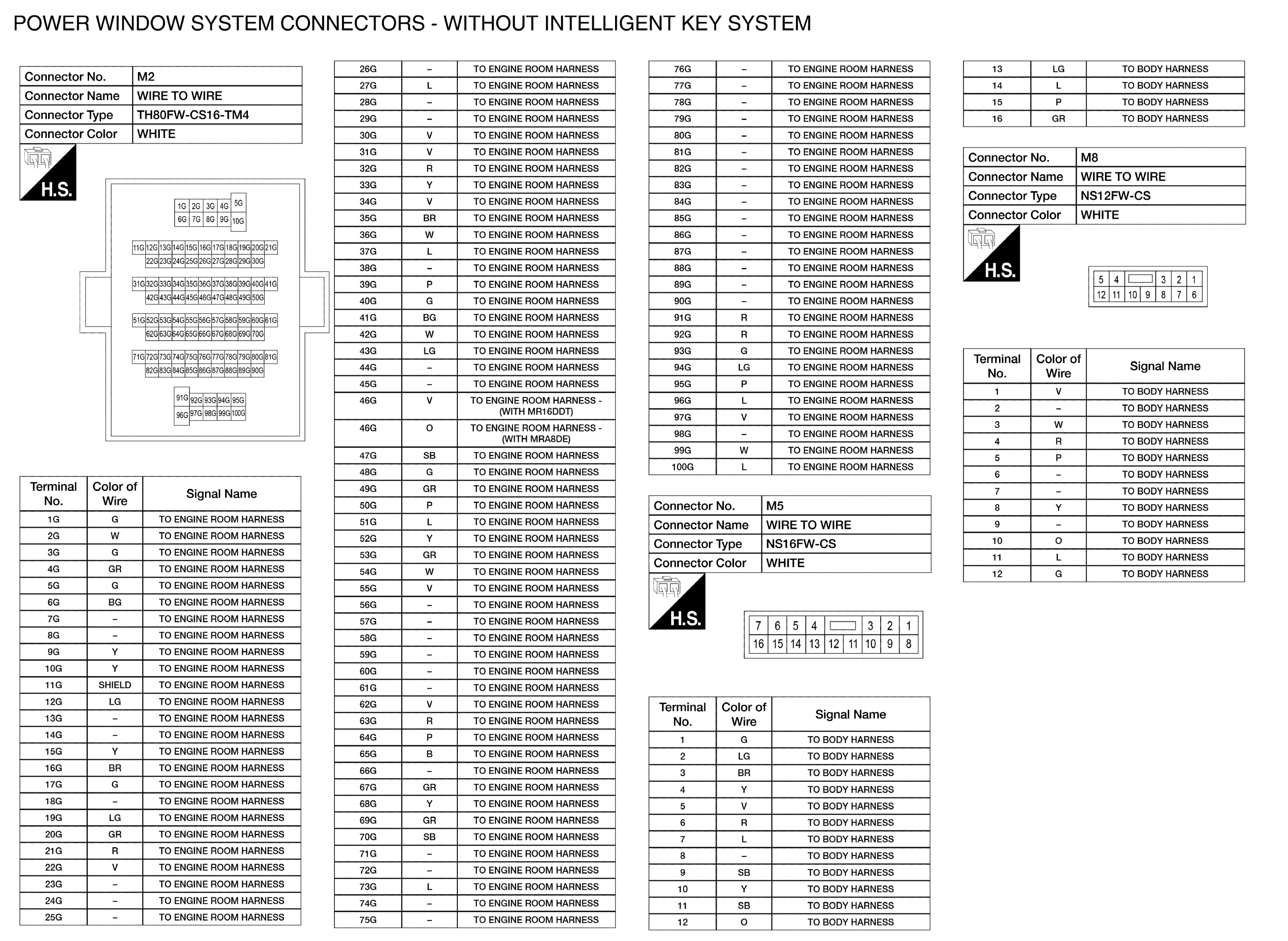

GNSAAKIA4560GB-560

Courtesy of NISSAN NORTH AMERICA, INC.

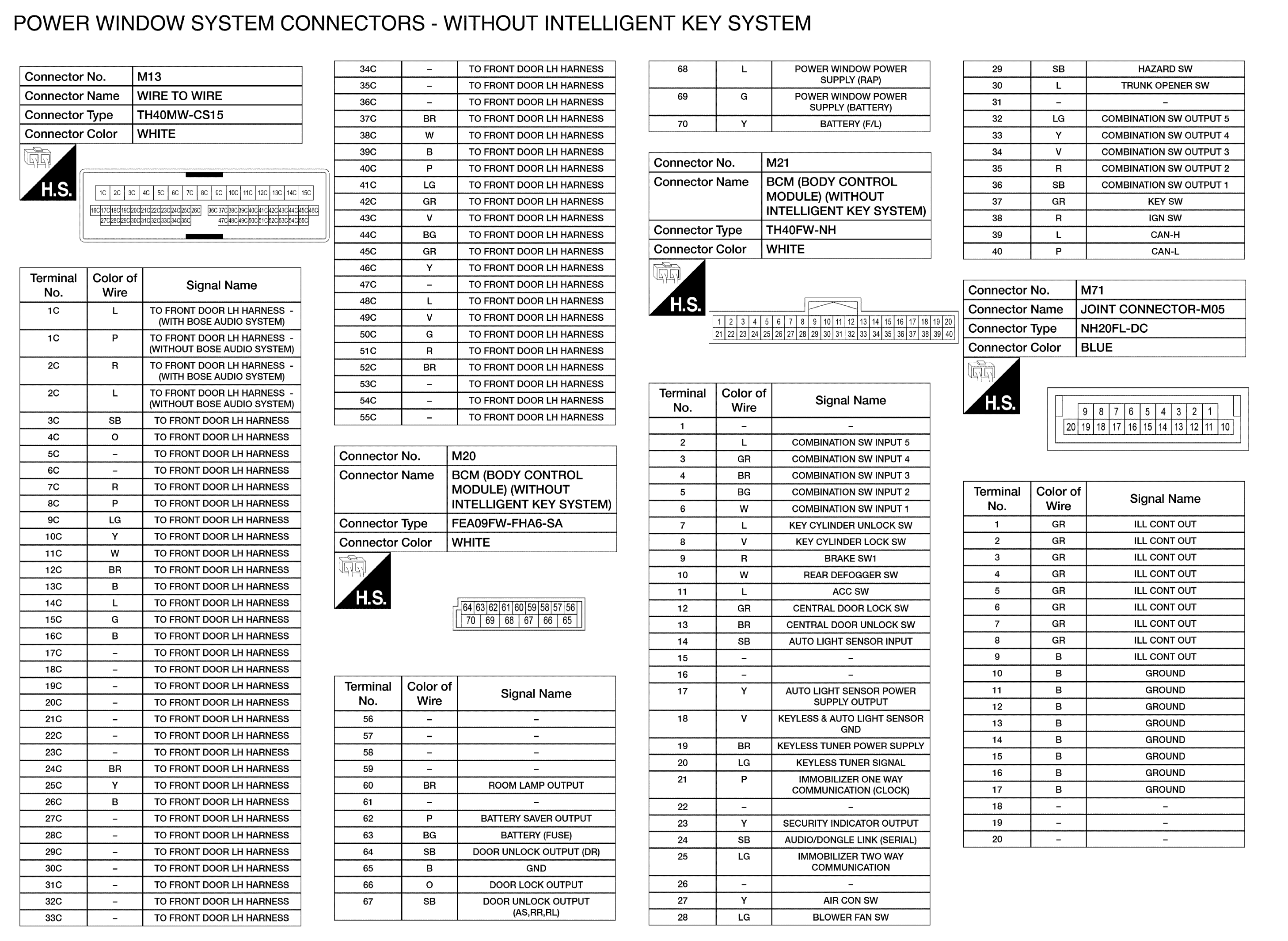

GNSAAKIA4561GB-561

Courtesy of NISSAN NORTH AMERICA, INC.

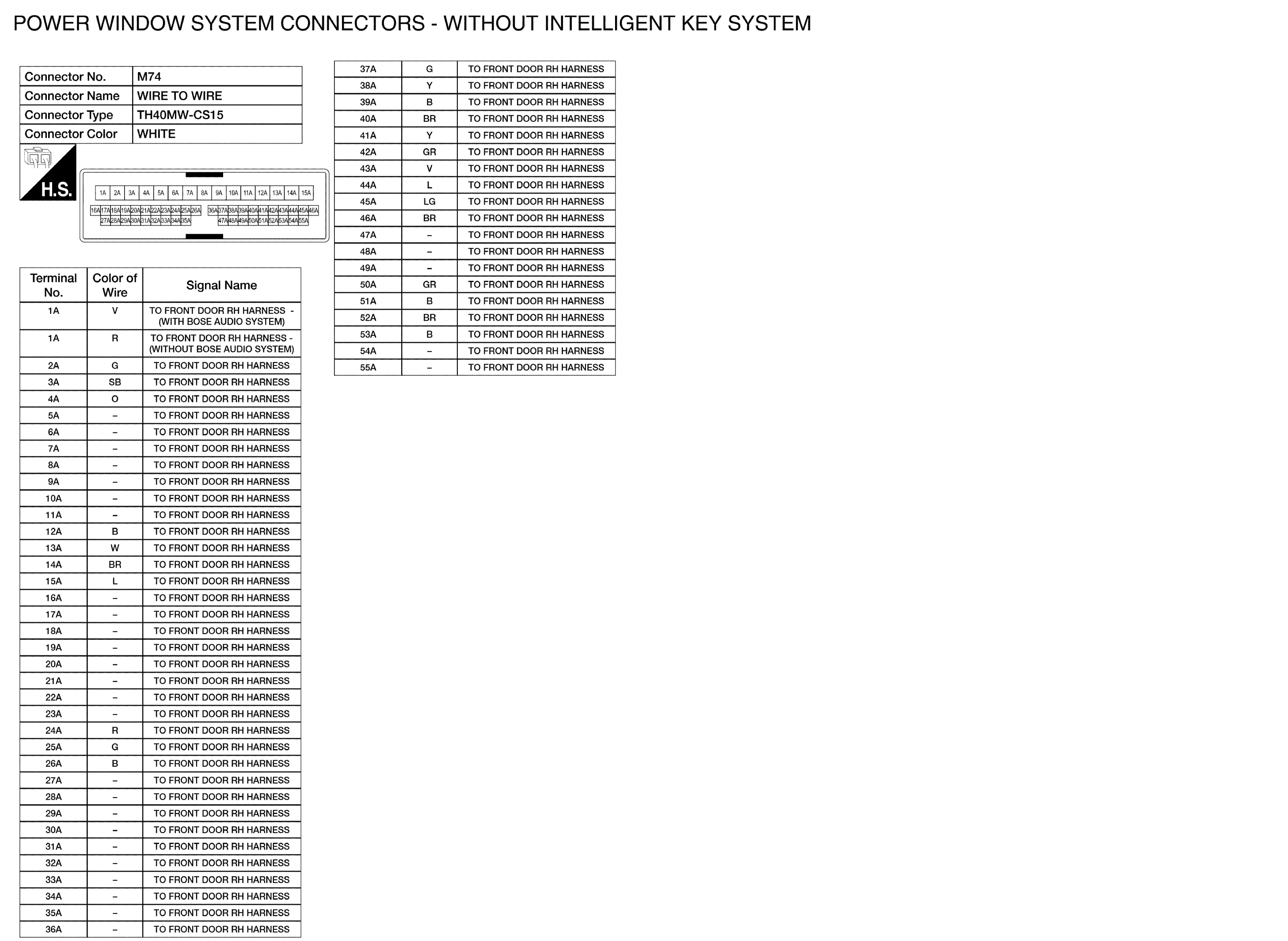

GNSAAKIA4562GB-562

Courtesy of NISSAN NORTH AMERICA, INC.
