Exploded View - MR16DDT

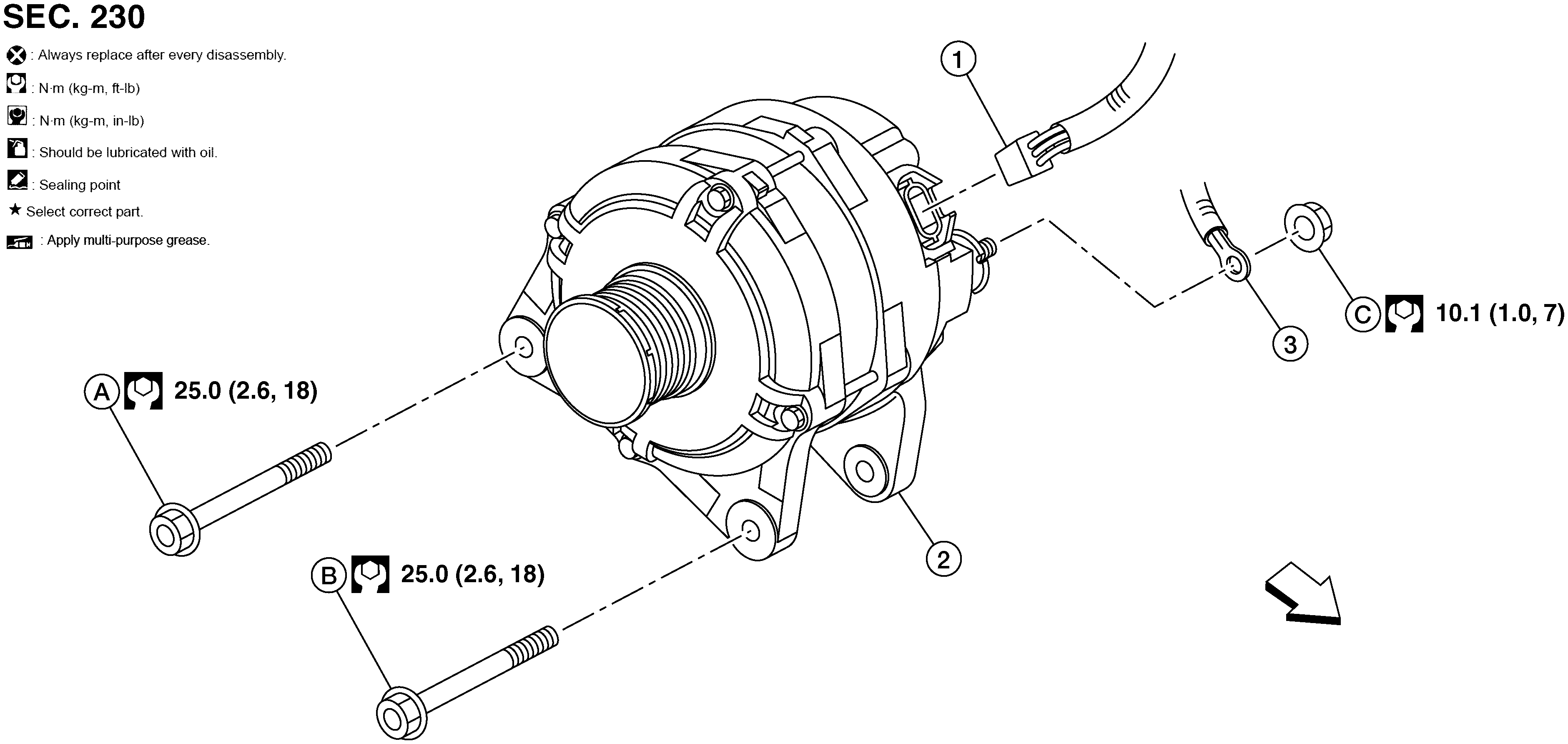

Fig 1: Generator MR16DDT With Torque Specifications
GNSAWMIA1905ZZ-905ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Harness connector 2. Generator 3. "B" terminal harness
A. Generator bolt (upper) B. Generator bolt (lower)" C. "B" terminal nut
ARROW Front
