Component Location

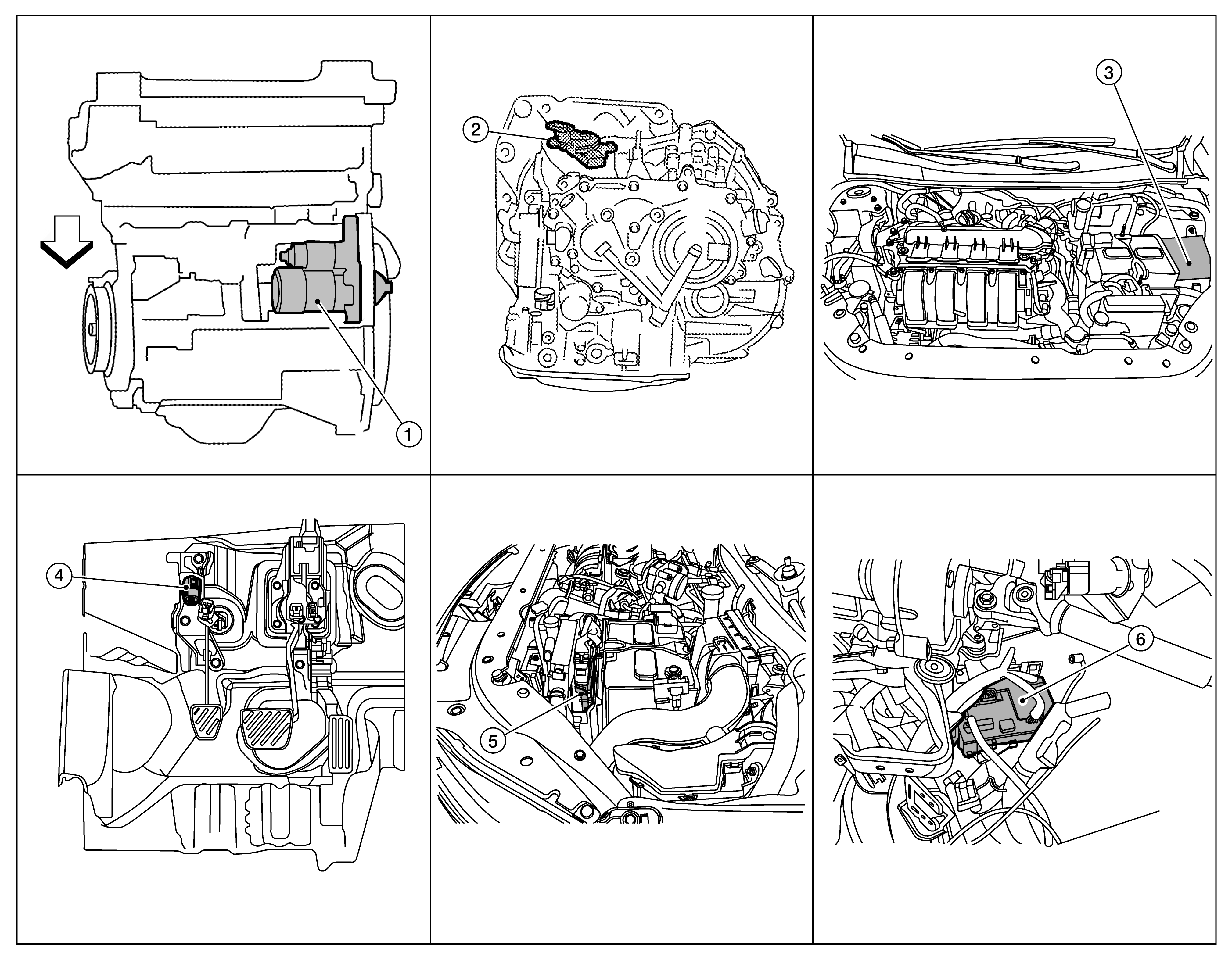

Without MR16DDT

Courtesy of NISSAN NORTH AMERICA, INC.

	Vehicle front
1.	Starter motor	2.	Transmission range switch (CVT Models)	3.	IPDM E/R (view with air inlet duct removed)
4.	Clutch interlock switch (M/T Models)	5.	ECM	6.	BCM (view under instrument panel, left side of vehicle)

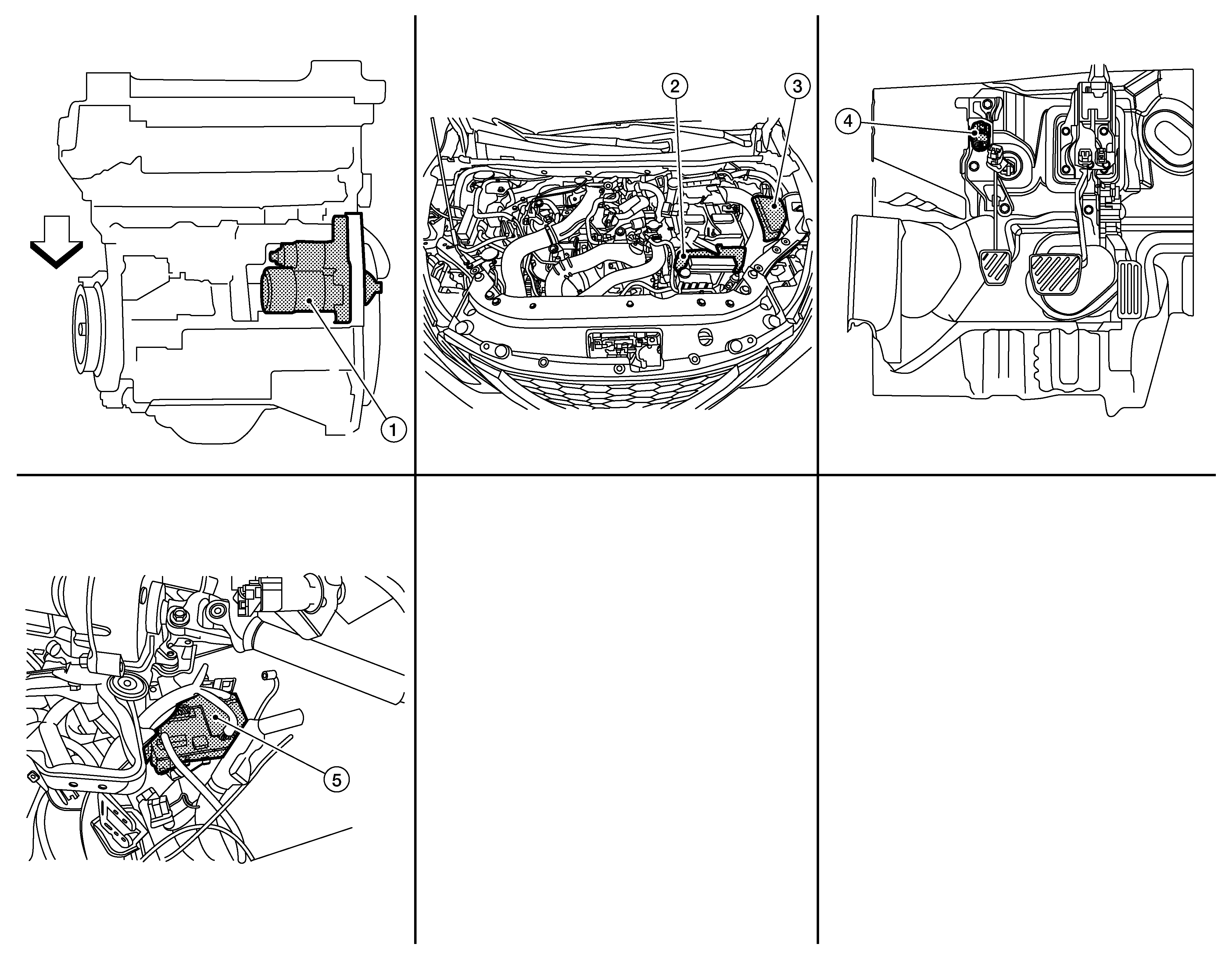

With MR16DDT

Courtesy of NISSAN NORTH AMERICA, INC.

	Vehicle front
1.	Starter motor	2.	ECM	3.	IPDM E/R
4.	Clutch interlock switch	5.	BCM (view under instrument panel, left side of vehicle)
