Component Location

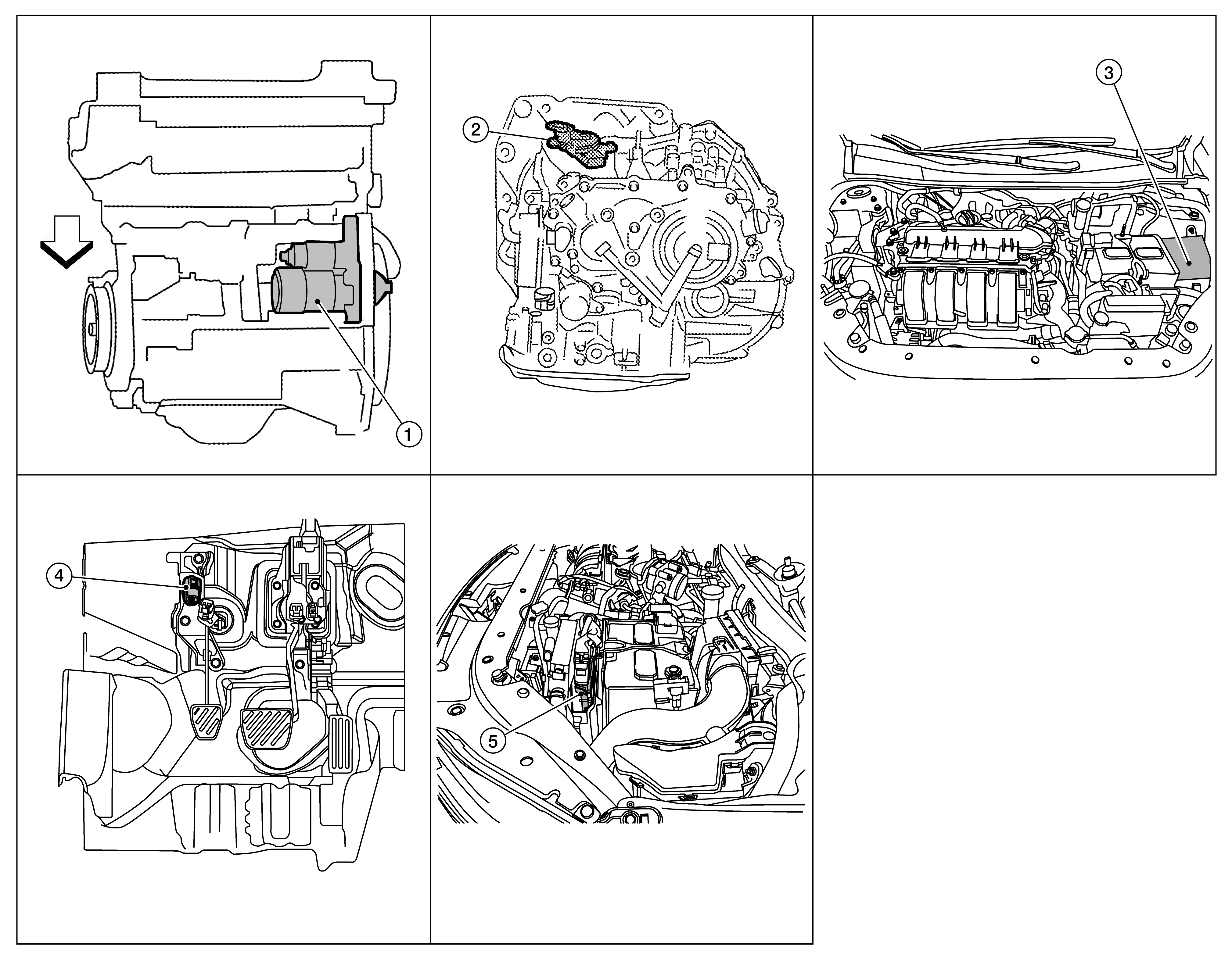

GNSAWBIA1497ZZ-497Courtesy of NISSAN NORTH AMERICA, INC.
ARROW Vehicle front
1. Starter motor 2. Transmission range switch (CVT Models) 3. IPDM E/R (view with air inlet duct
removed)
4. Clutch interlock switch (M/T Models) 5. ECM
