Exploded View
MRA8DE

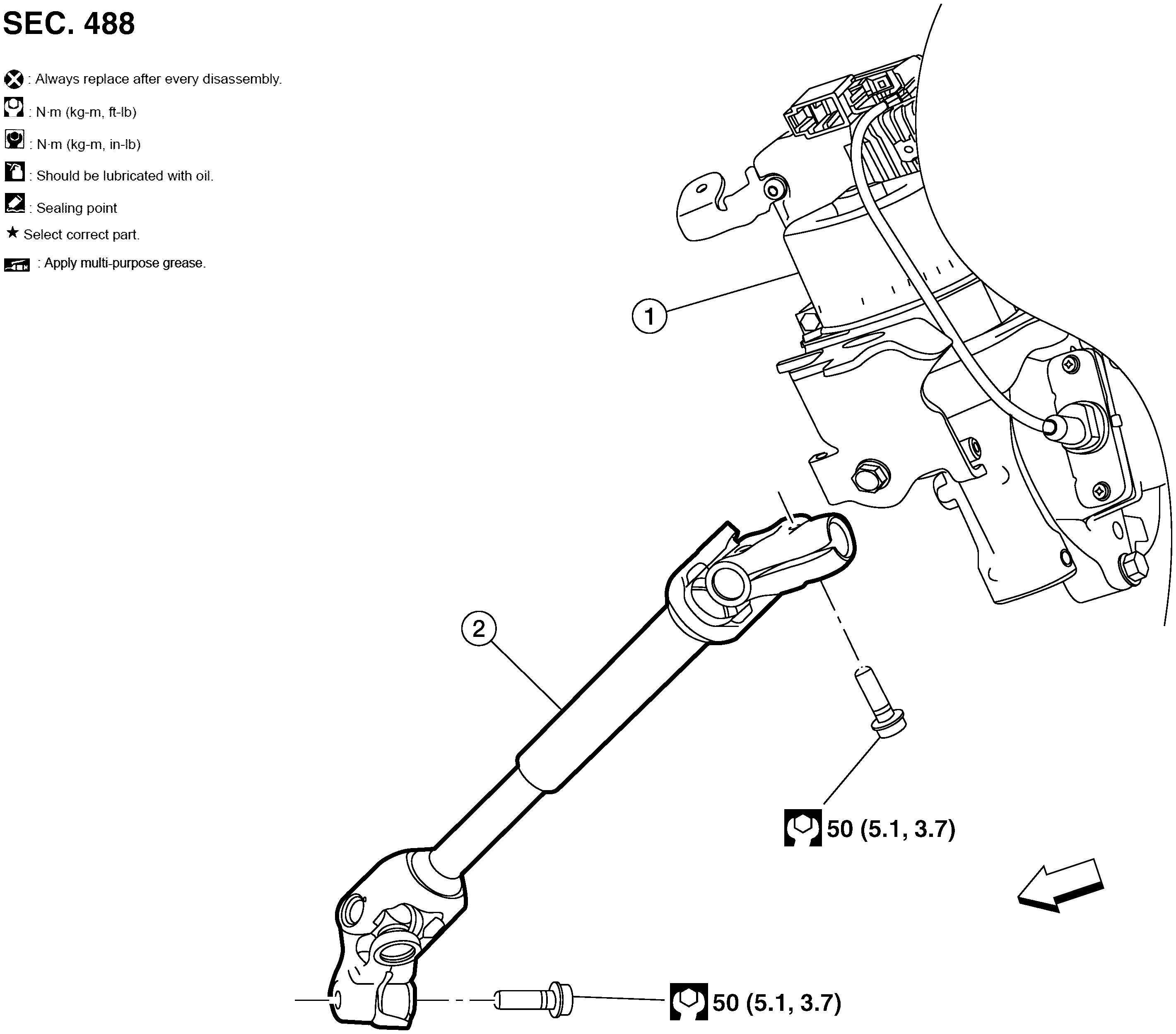

Fig 1: Lower Joint MRA8DE With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front
MR16DDT

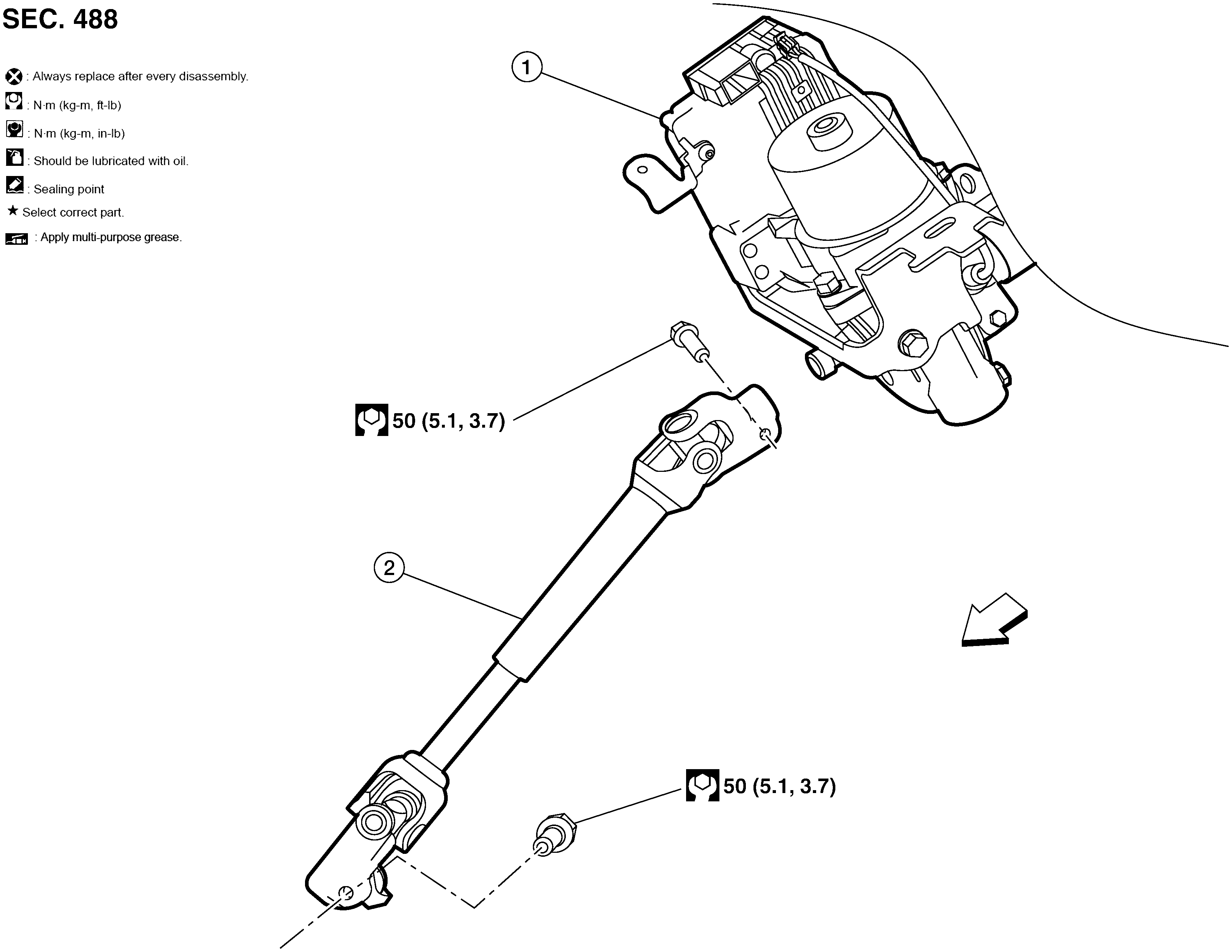

Fig 2: Lower Joint MR16DDT With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front
